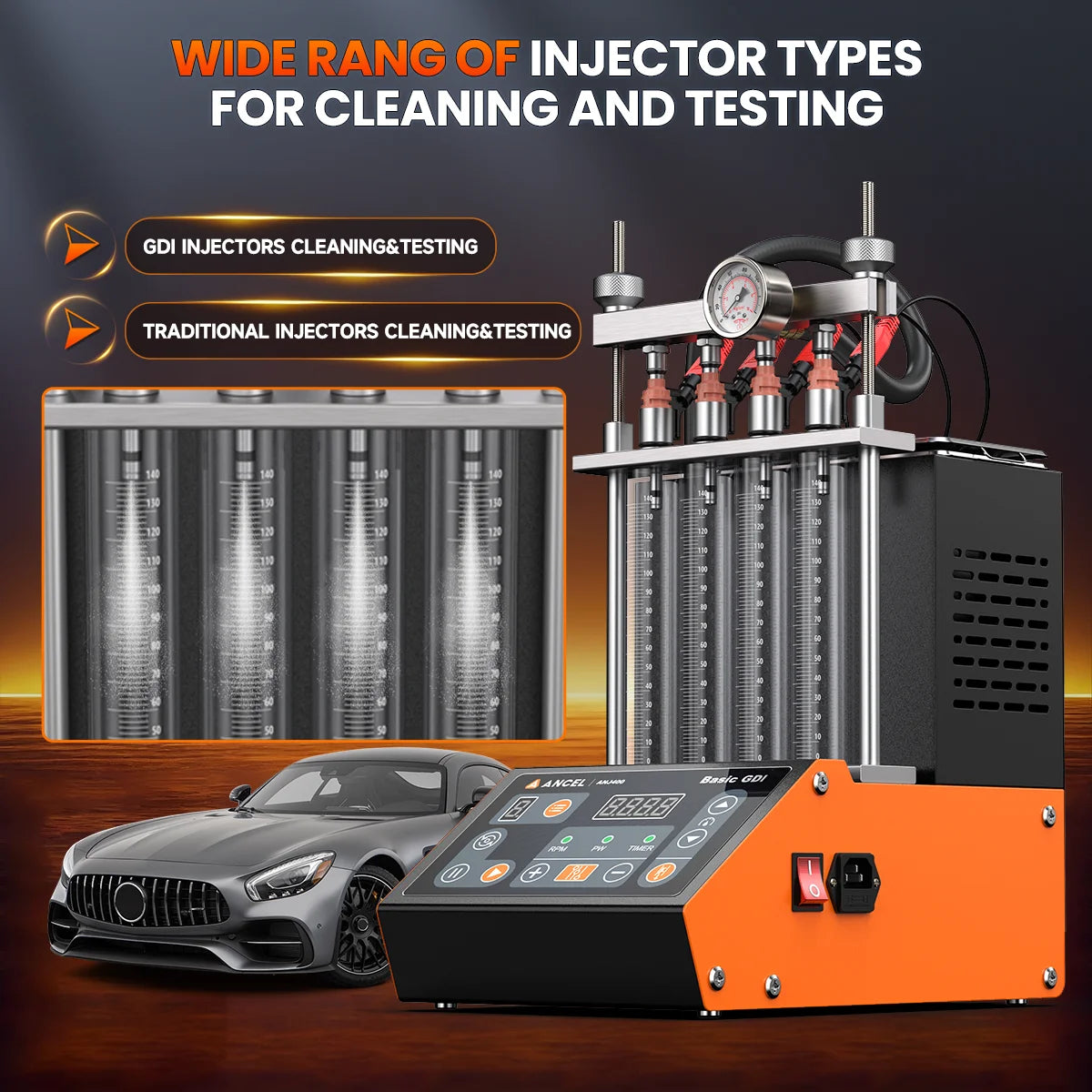

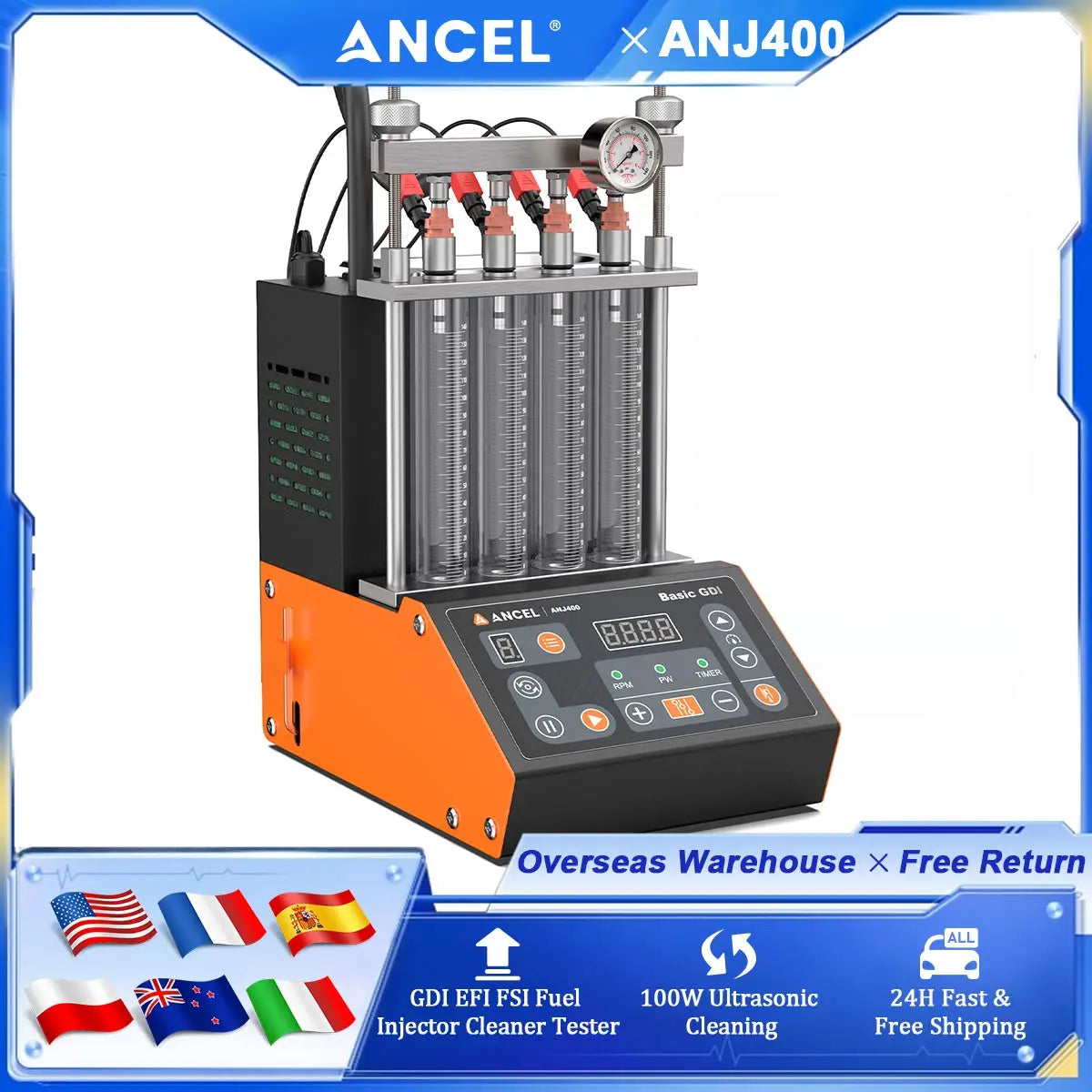

ANJ400 Fuel Injector Cleaner & Tester

Supports EFI / GDI Injectors | Ultrasonic Cleaning |Digital Display | AC110V/220V / 4 Cylinders Working at Same Time

9 Reasons to Choose ANJ400

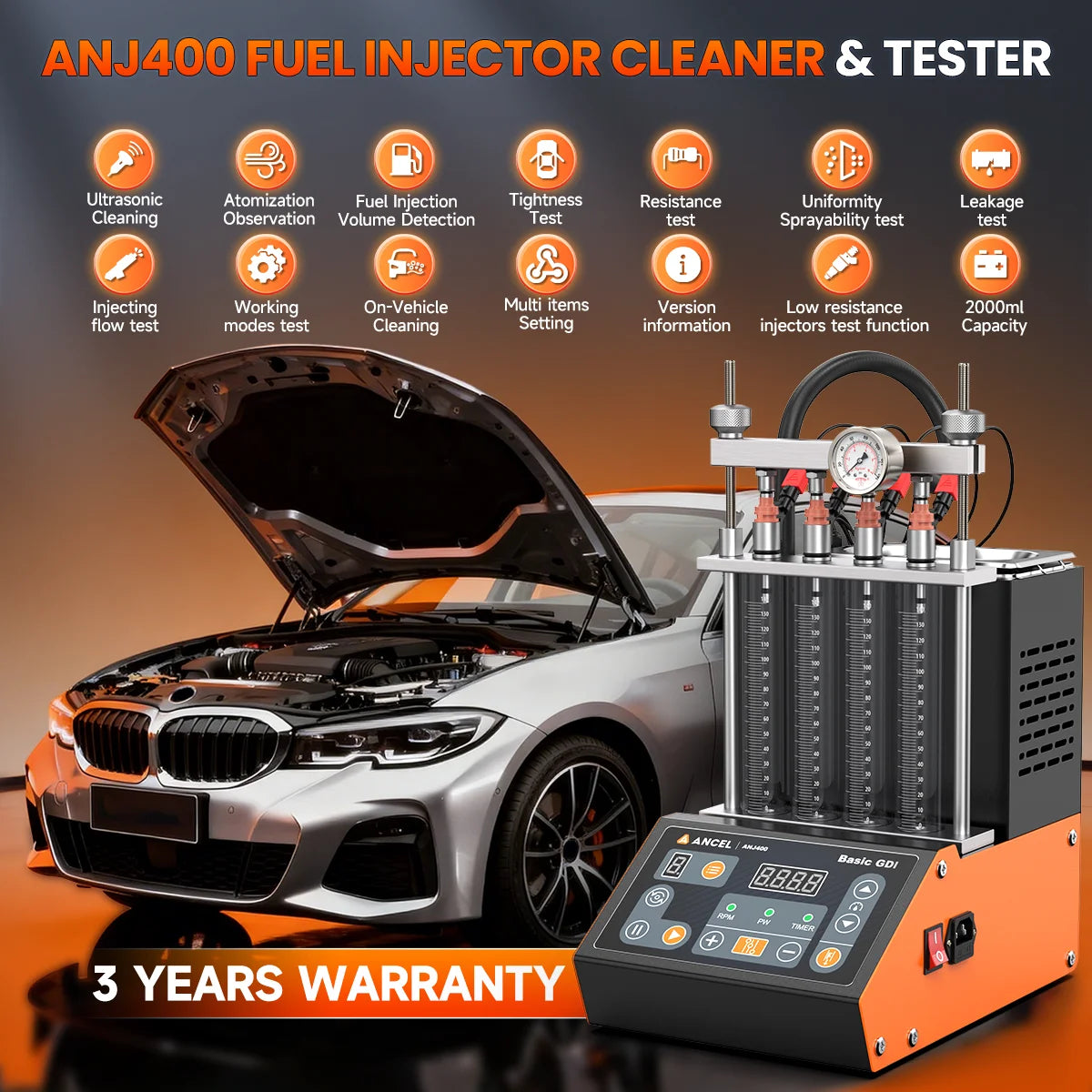

ANJ400 Main Function:

🔥 Digital Display

Clear numeric display of voltage, resistance, pulse width, and working mode.

🔥 Injector Resistance Test

Test high and low resistance injectors and display precise values.

🔥 Leakage Test

Detect fuel leakage accurately for each injector.

🔥 Fuel Flow & Spray Test

Check fuel quantity and spray pattern uniformity to ensure proper atomization.

🔥 Ultrasonic Cleaning

Deeply cleans injector internal channels for optimal performance.

🔥 Electromagnetic Valve Backflow

Simulates fuel return conditions and protects injectors during testing.

🔥 Manual & Automatic Modes

Flexible operation for professionals and DIY users.

ANJ400 Introduction

The ANJ400 is a professional injector cleaner and tester designed for auto repair shops, garages, and automotive DIY enthusiasts.

It integrates ultrasonic cleaning, resistance testing, spray pattern analysis, and leak detection in one powerful machine.

With high-power ultrasonic cleaning (100W), a large 2400ML tank, and adjustable 0-8Bar pressure, it ensures precise cleaning and accurate diagnostics for EFI & GDI injectors.

ANJ400 11 injector-specific functions

01. Ultrasonic cleaning: It sends signals to the injectors through the pulse signal line, using the cleaning fluid with the ultrasonic vibration so as to completely remove the carbon and impurities inside the injectors.

02. Idle speed test (0-20ms): Simulate the engine idling speed and test the state of the fuel injector.

03. Medium speed test (0-7.5ms): simulate the engine running at medium speed and test the state of the fuel injector.

04. High-speed test (0-4ms): Simulate the high-speed performance of the engine and test the state of the fuel injector.

05. Acceleration test: Simulate the acceleration state of the car and test the performance of the fuel injector.

06. Shift speed test: Simulate the shifting state of the car and test the working performance of the fuel injector.

07. Leakage test: Test the sealing condition of the fuel injector.

08. Idle dpeed sprayability Test: Simulate the engine idling state and test the spraying performance of the fuel injector.

09. Medium speed sprayability test: Simulate the engine medium-speed state and test the spraying performance of the fuel injector.

10. High-speed sprayability test: Simulate the high-speed state of the engine and test the
spraying performance of the fuel injector.

11. Main unit information: used to store the product number and date of manufacture of the product.

ANJ400 Main Features

1. The special structure design makes the disassembly and assembly of the fuel separator easier and greatly improves the work efficiency.

2. With the resistance test of the injectors one by one, get to know the condition of the injectors.

3. The ultrasonic cleaner is integrated on the machine, which makes the operation easier and more efficient.

4. With the dedicated motherboard, it can support the full and long test of low resistant fuel injector such as 1 ohm.

5. The unique fuel circuit depressurization technology can make the machine automatically depressurize in the case of sudden shutdown, avoiding equipment damage or personal injury.

6. The brightness of the screen and backlight, and the level of the buzzer can be manually set and saved.

7. The product adopts fuel pressure adjustment and control technology by microcomputer, which can ensurestable fuel pressure and wide adjustable range. It is applicable to vehicles equipped with a variety of gasoline injection systems. Meanwhile, the automation of injectors’ cleaning and testing processes can be realized.

8. Thanks to the adoption of microcomputer automatic control and digital display technologies, the cleaning and testing processes can be controlled automatically, and the parameters of the main status can be monitored in realtime.

9. Adopting humanization design can make the system pressure fast restored to the default values.

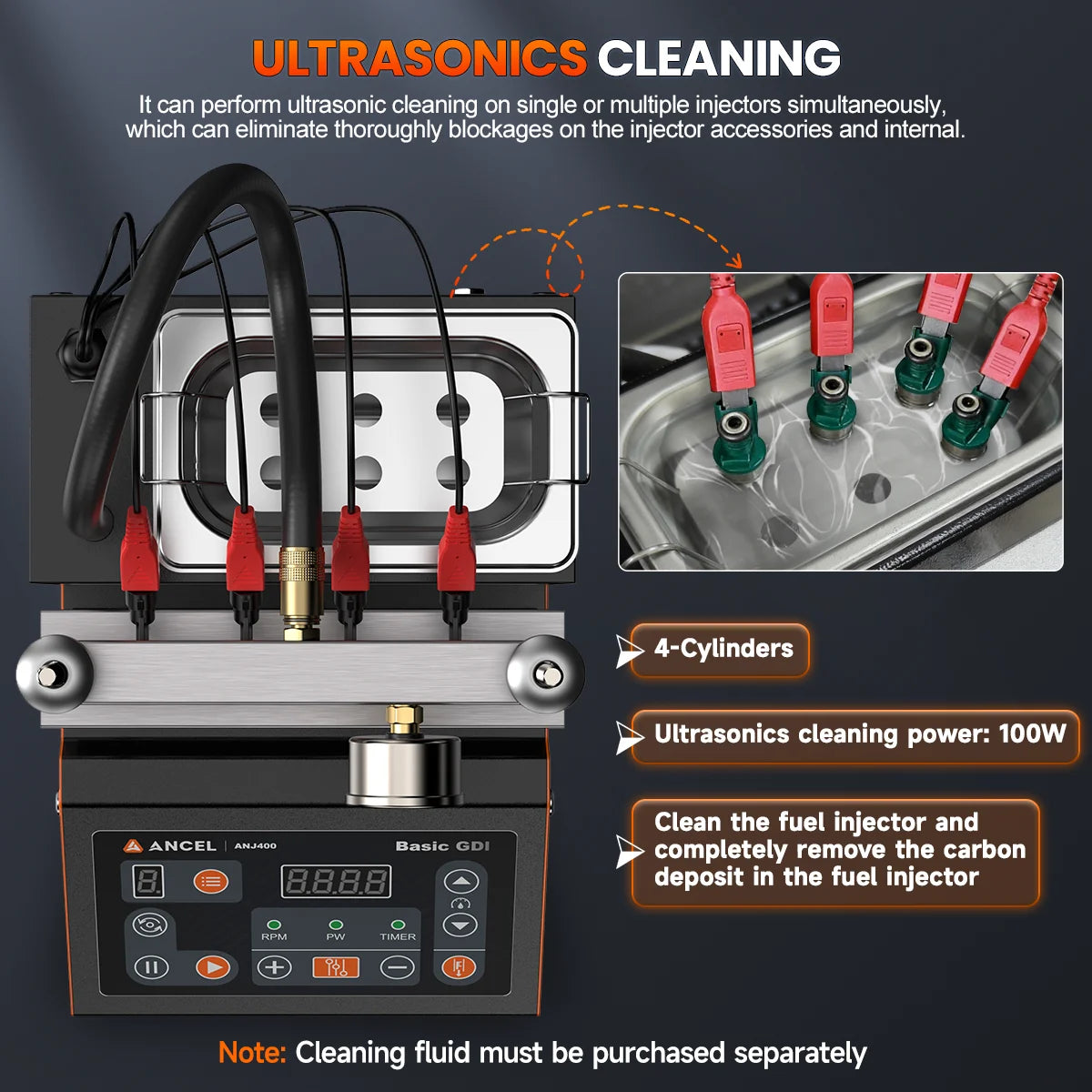

✅1.Ultrasonic Cleaning

Ultrasonic cleaning is to use the penetrating and cavitation shock waves generated when ultrasonic waves propagate in the medium, and powerfully clean objects with complex shapes, cavities and pores to completely remove stubborn carbon deposits on the fuel injector.

✅2.Fuel Injector Cleaning & Tester

This function is to detect the atomization, dripping, blockage, fuel injection angle status of the fuel injectors and the size and balance of the fuel injection of each fuel injector at different speeds.

Operation Step:

Ultrasonic Cleaning Operation:
1.Pour in the injector detergent and place the injectors in the ultrasonic cleaner tank.
2.Connect the pulse signal wire and select the ultrasonic cleaning function to start working.

Fuel Injector Testing Operation:
1. Pour in the test liquid,install the fuel injector is to the fuel dstributor and fix main unit body
2. Test if the injector is leaking or blocked under different functions.

How to choose test fluid?

The test fluid is used to test and judge whether the performance of the fuel injector is in good condition. It is a colorless and transparent liquid with no irritating odor, non-corrosive, and not easy to emit. Its function is to simulate various working states of the fuel injector as a medium. In order to achieve the best test effect, it is recommended to use professional automotive injector test fluids. If it is not available locally, as an alternative, it's recommended that medical alcohol with an alcohol content of more than 75% can be used instead of the test fluid.

How to choose cleaning fluid?

Cleaning fluid is used to clean deposits (such as carbon deposits) on fuel injectors, and it is usually highly corrosive and flammable. In order to achieve the best test effect, it is recommended to use professional injector ultrasonic cleaning fluid. If it is not available locally, it's recommended that medical alcohol with an alcohol content of more than 75% can be used instead of the cleaning fluid, but note that the effect may not good enough.

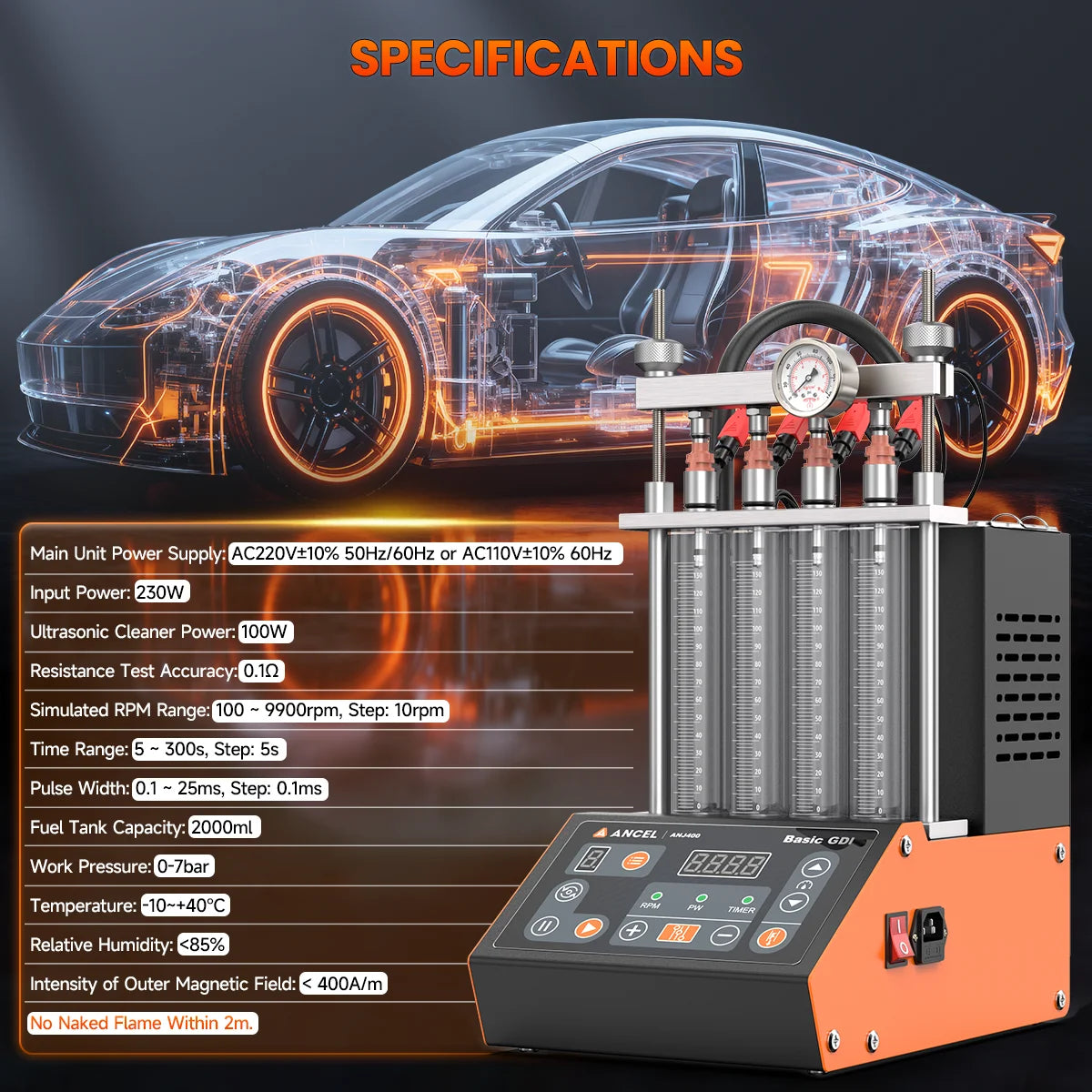

Working Conditions& Specifications:

Temperature: -10~+40℃ Relative humidity: ＜85%
Intensity of outer magnetic field: ＜400A/m
No naked flame within 2m.
Main unit power supply: AC220V±10%,50Hz/60Hz or AC110V±10%,60Hz
Input power: 230W
Ultrasonic cleaner power: 100W
Resistance test accuracy: 0.1Ω
Simulated RPM range: 0-9975rpm
Time range: 5-300s, step: 5s
Pulse width: 0-30ms
Fuel tank capacity: 2400ml
Work pressure: 0-8ba

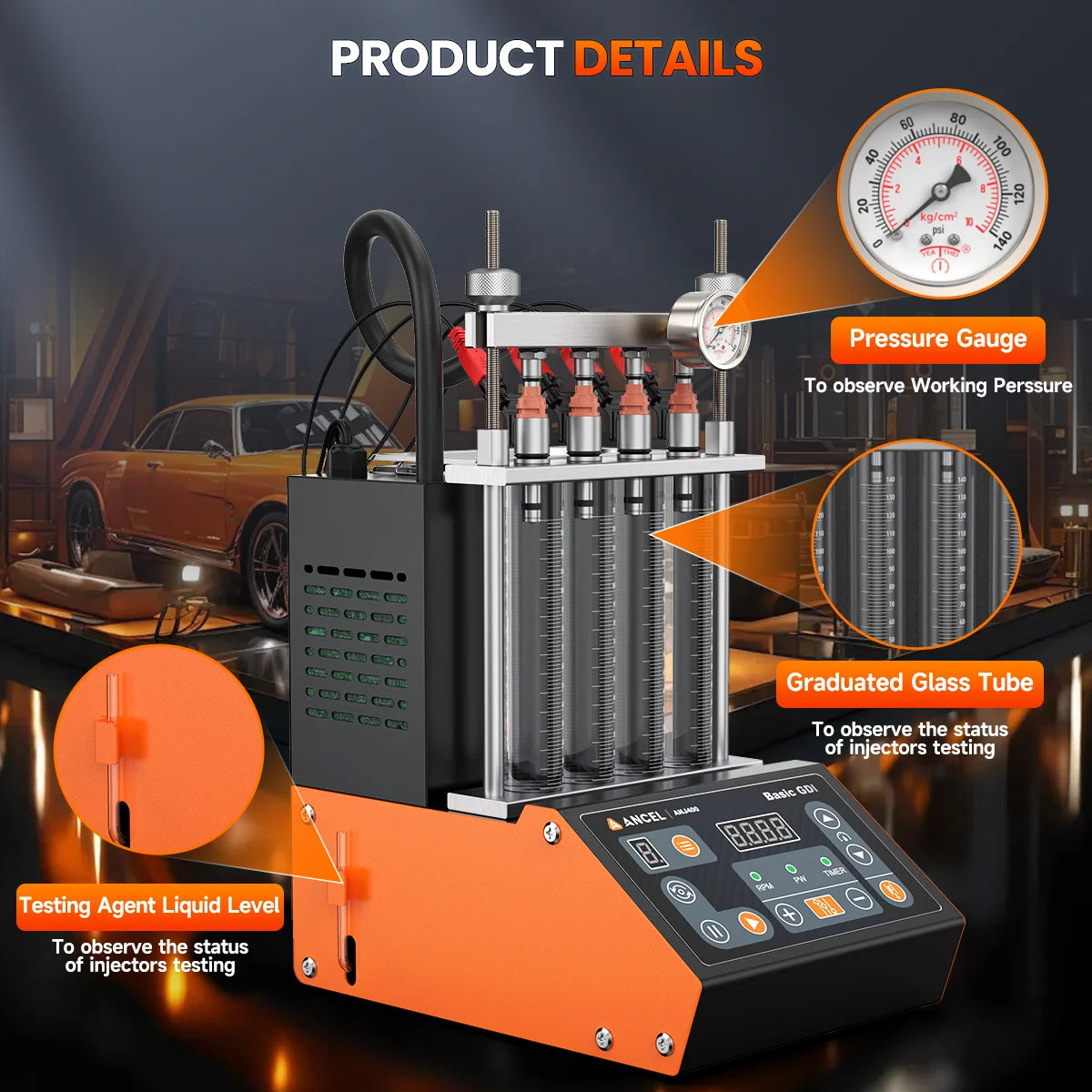

Product Details

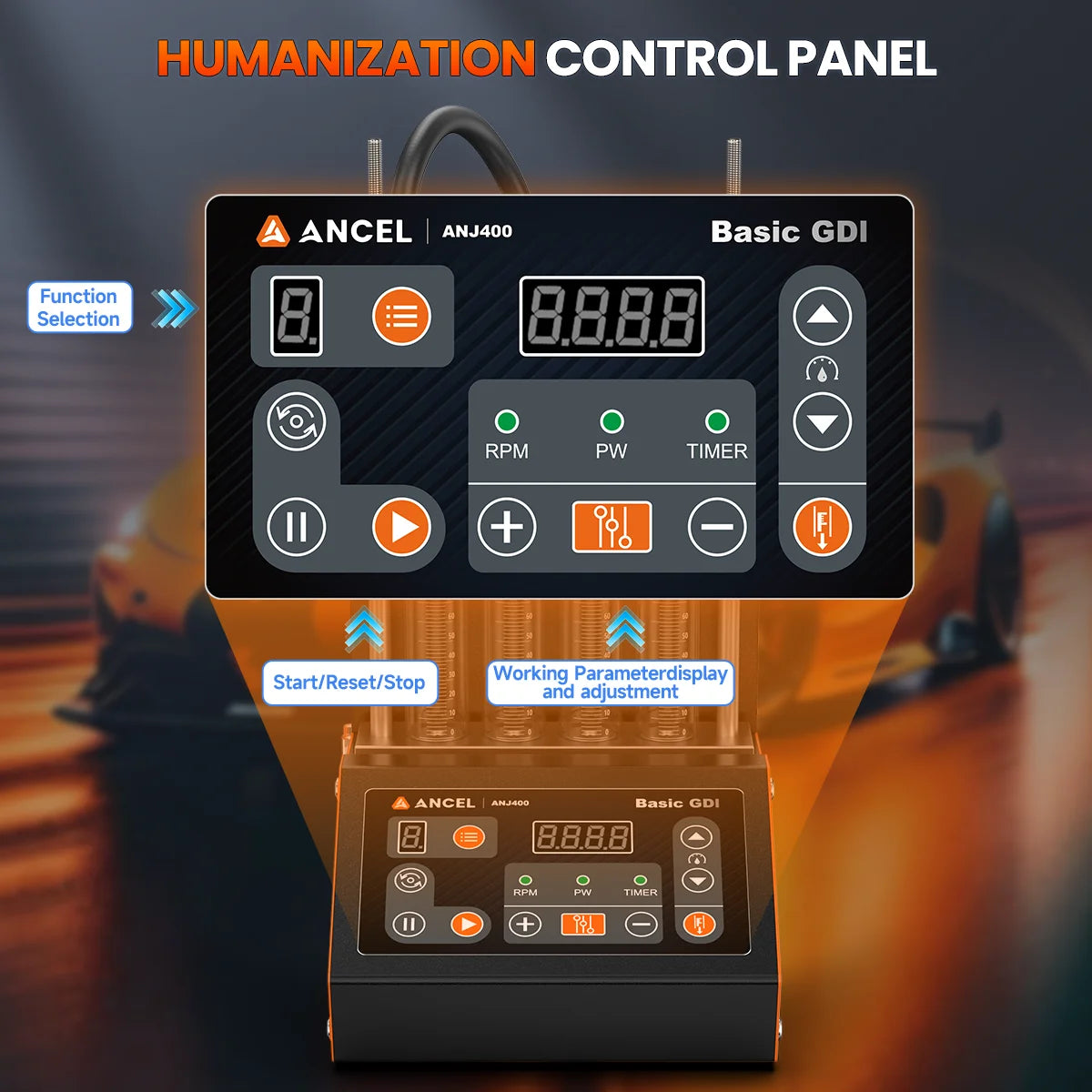

Smart Panel

Packing List:

1 x Fuel Injector Tester & Cleaner
2 x adjusted screw
1 x Fuel feed funnel
1 x Fuel pipe
4 x 5 Φ11 underlay of injector
4 x Injector plate Φ14 flat plate
1 x Pulse line of injector（4 injectors)
1 x Power line
4 x Special line
1 x Top feed injector rail
10 x Sealed ring of connectors(7.52x3.53)
3 x R1/4blank plug
4 x European standard connectors Φ13.6
4 x Standard connectors Φ10.6
4 x Connector of Benz mechanical injector (M12x1.5)
4 x Conector de inyector Φ12.5 (GDI Conector)
4 x Conector de inyector Φ9.8 (GDI Conector)
4 x Conector de inyector ΦM18 (GDI Conector)
1 x Tool box
