24v Electric 4wd Brushed Controller Wireless Remote Joystick

24v Electric 4wd Brushed Controller Wireless Remote Joystick

$337.99 USD
$563.99 USD $337.99 USD
Sale Sold out
Shipping calculated at checkout.

7-15 business daysEstimated delivery window with tracking when available.

30-day return reviewContact us first. Return address is provided after review.

Secure Shopify checkoutPayment is processed through Shopify checkout.

Color
Display Model
Before you order: Most orders arrive within 7-15 business days. If a product arrives damaged, defective, or incorrect, contact us with photos and your order number so we can review it and work with you on a reasonable solution.

SPECIFICATIONS

Certification: CE

Design: Brushed

High-concerned chemical: none

Motor: Low-speed Brush Motor

Origin: Mainland China

Voltage: 24V

Wattage: > 400w


24V Electric 4WD Brushed Controller With Wireless Remote Joystick 2WD Brush Driver 50A For Electrical Cart Trolley Bike DC Motor


If you want a switch to turn on/off the electric part (like light) with the remote, please click the above picture, thanks.

Please note: this item has no motor!
This item is a brushed controller for the electric DC motor (the motor should has only 2 wires).
If you want to drive 2pcs 24V 250W-350W brushed motor, please choose the "2WD" option,
and if you want to drive 4pcs, then please choose the "4WD 250W" or "4WD 350W" option, thanks.
The remote can control the motors go forward, reverse, turn left, right, and cruise.

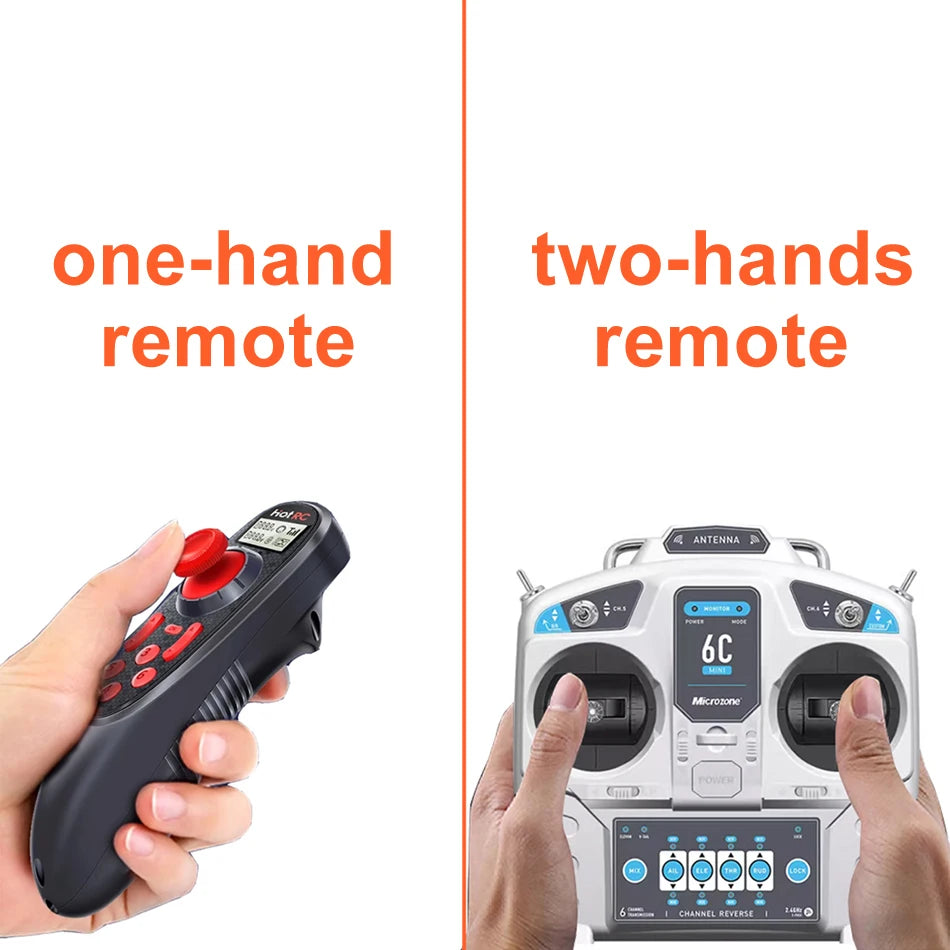

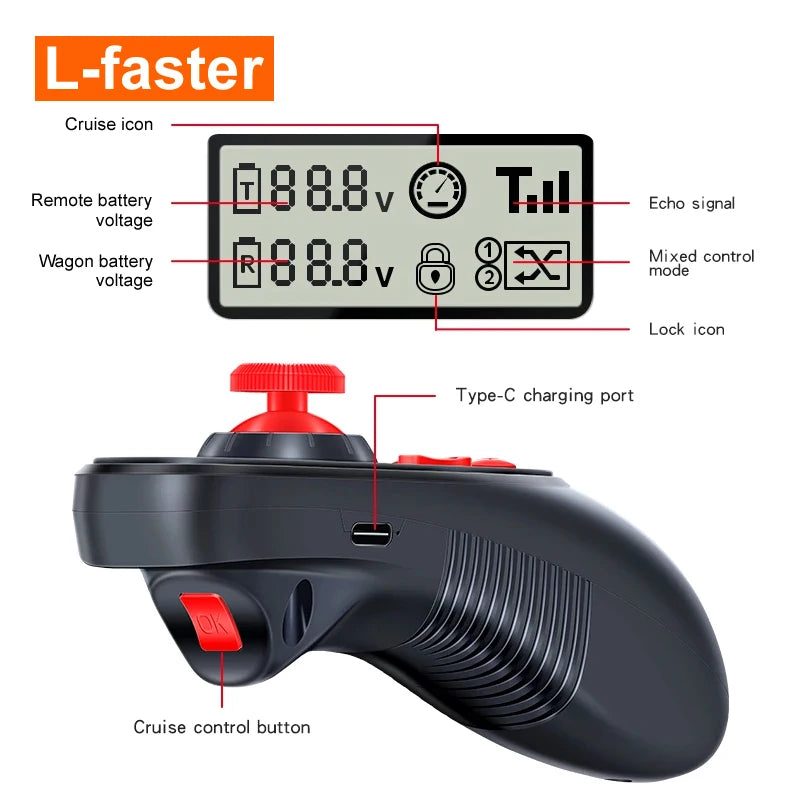

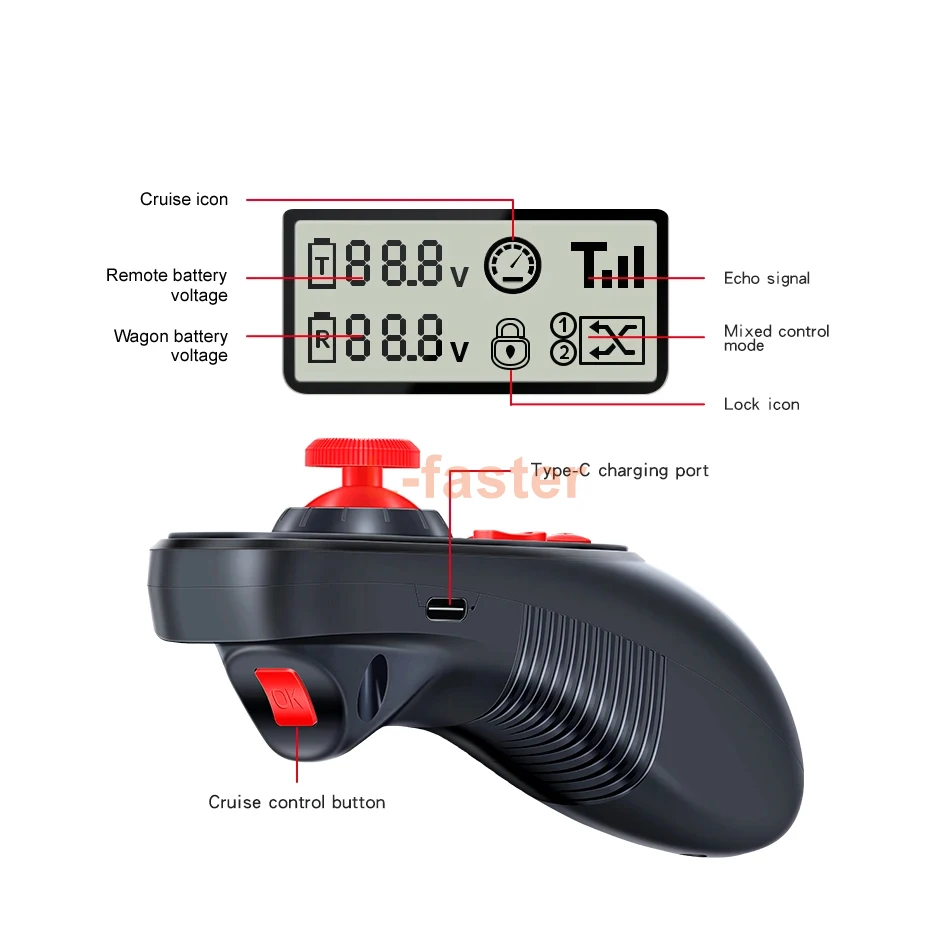

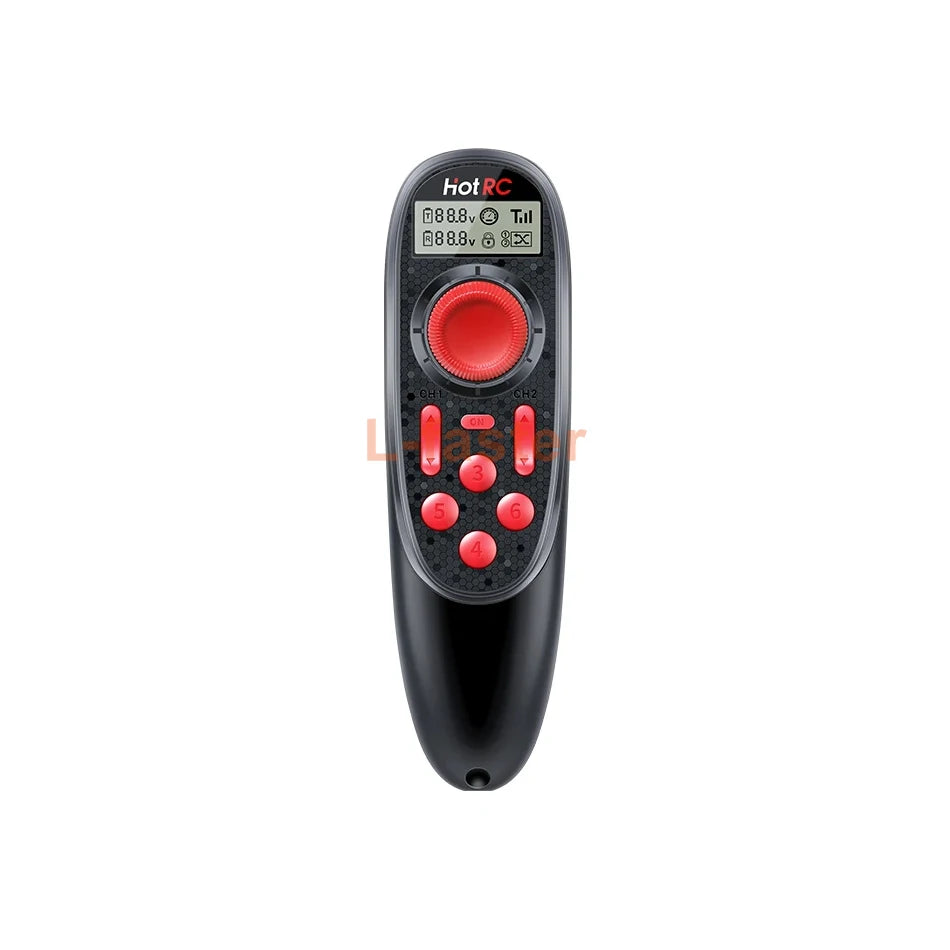

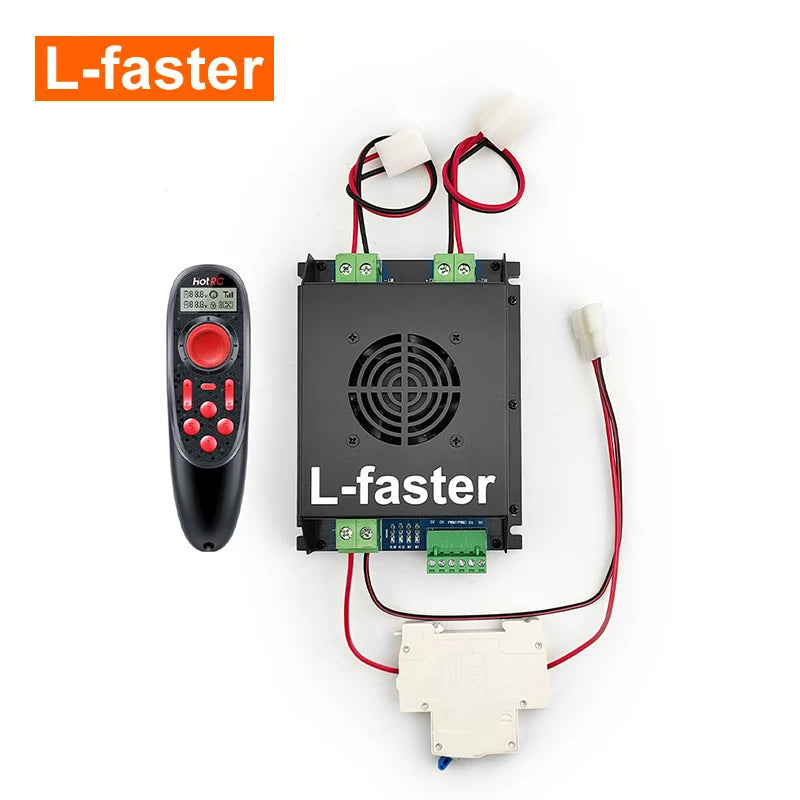

The one-hand remote has a rechargeable lithium battery inside.

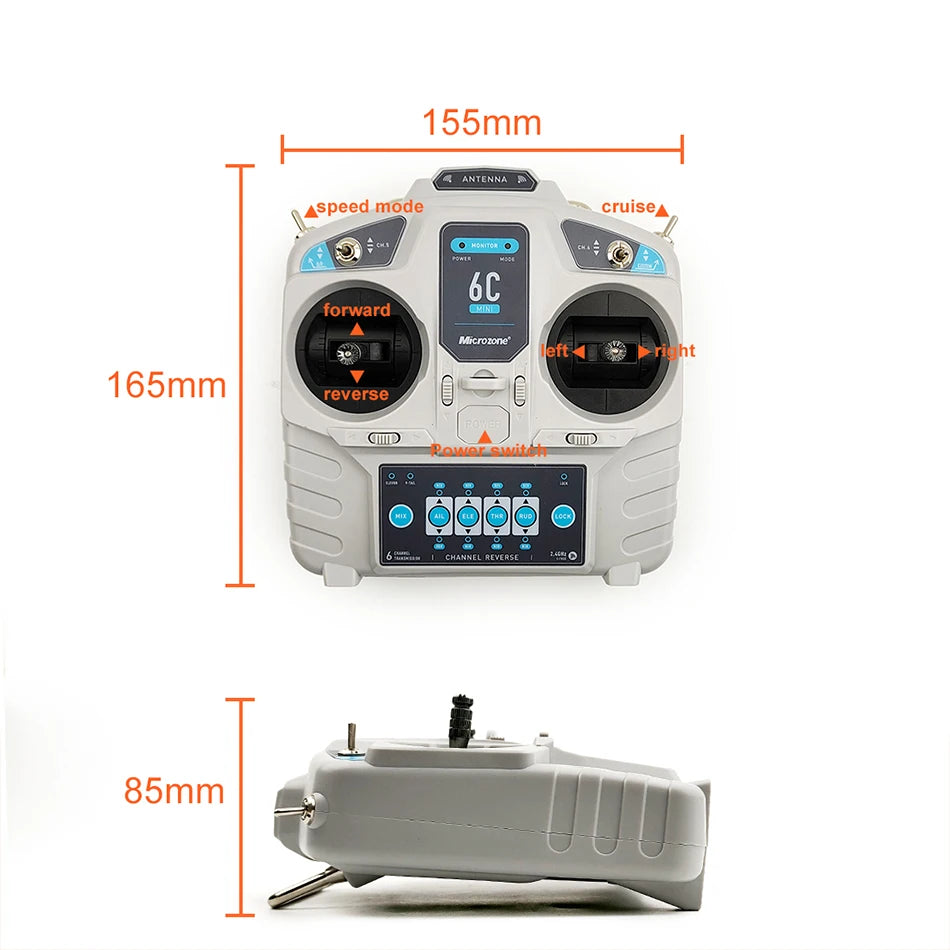

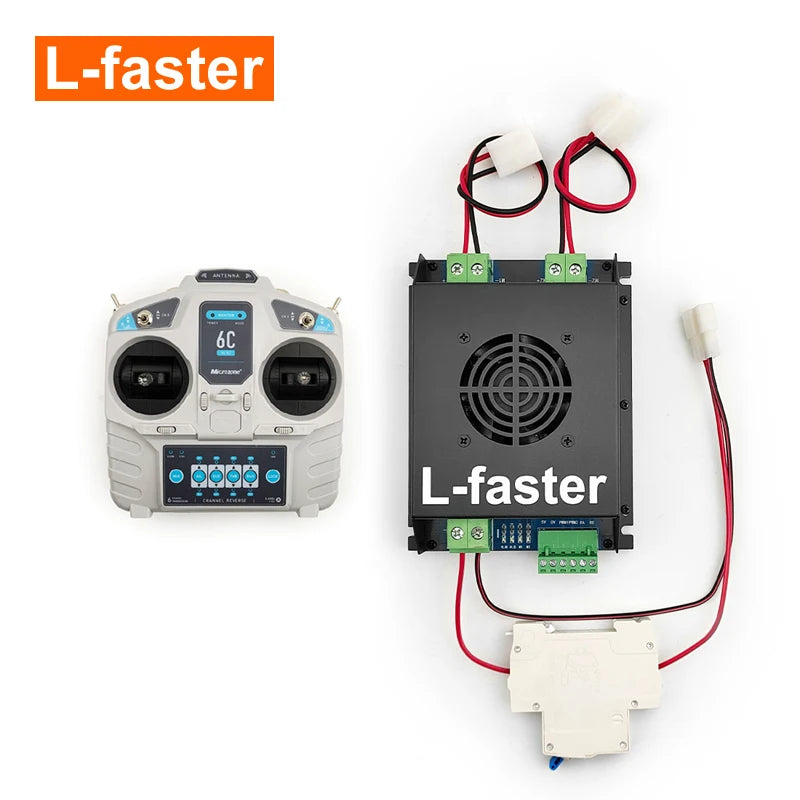

The two-hands remote needs 4pcs AA battery cell (this battery is not included).

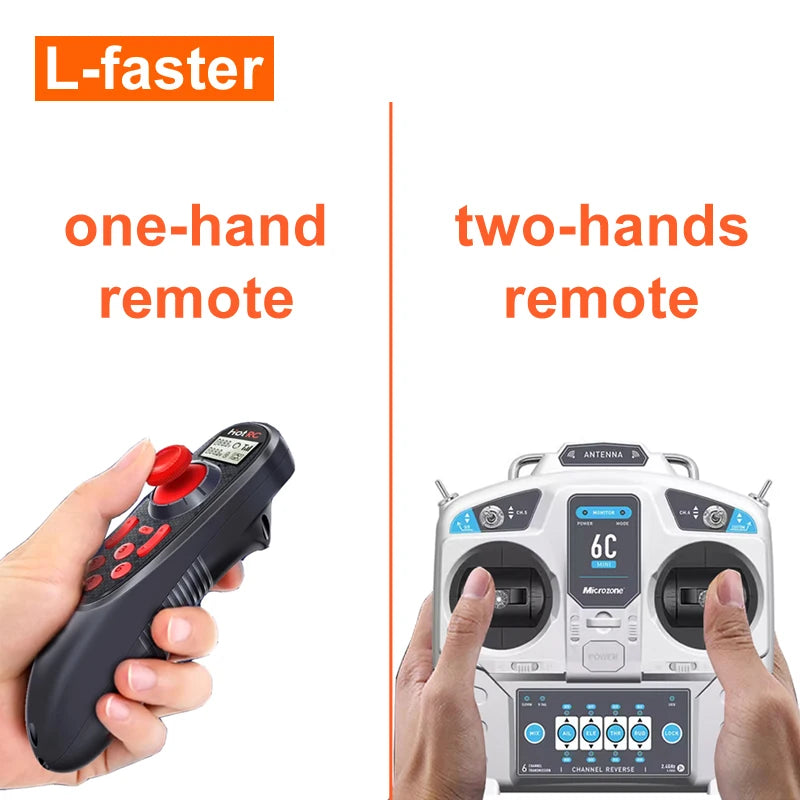

Please choose the correct remote, thanks.
Controller specification
Condition: 4 motors driver
Suitable Voltage: 24V
Lowest Working Voltage: 20V
Max current: 50A / 65A
Matched Motor: 4pcs 24V 250W / 350W Brush Motor

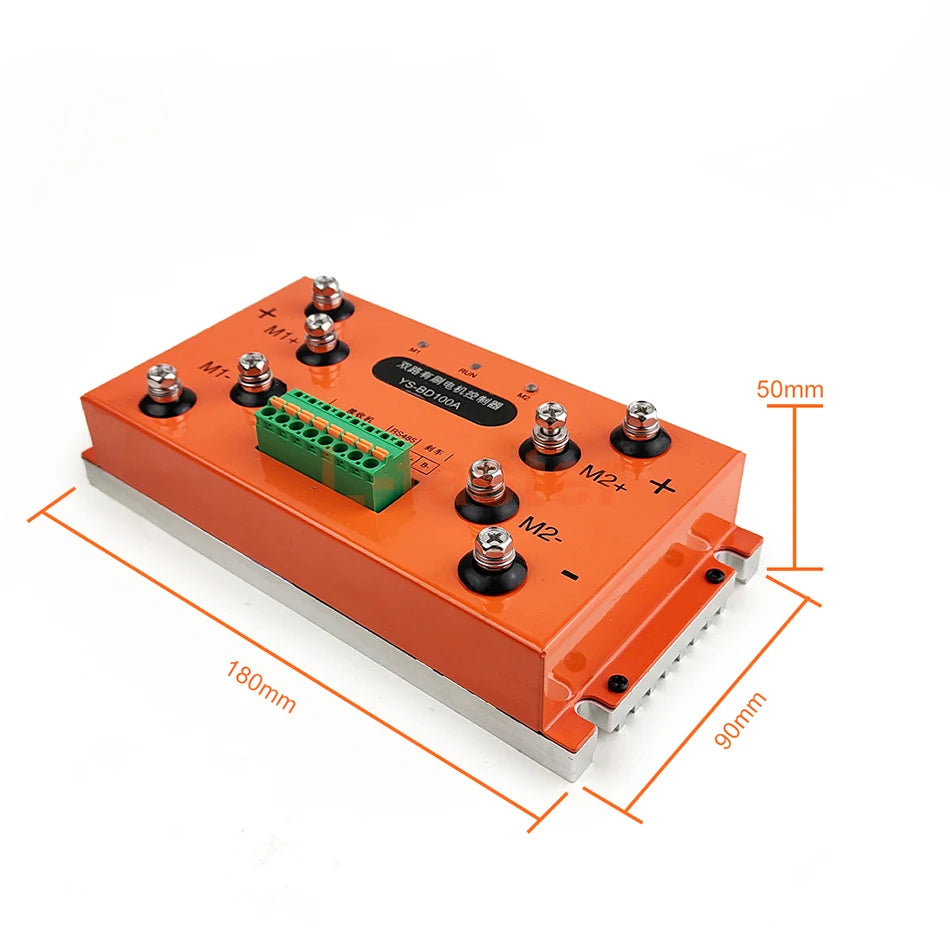

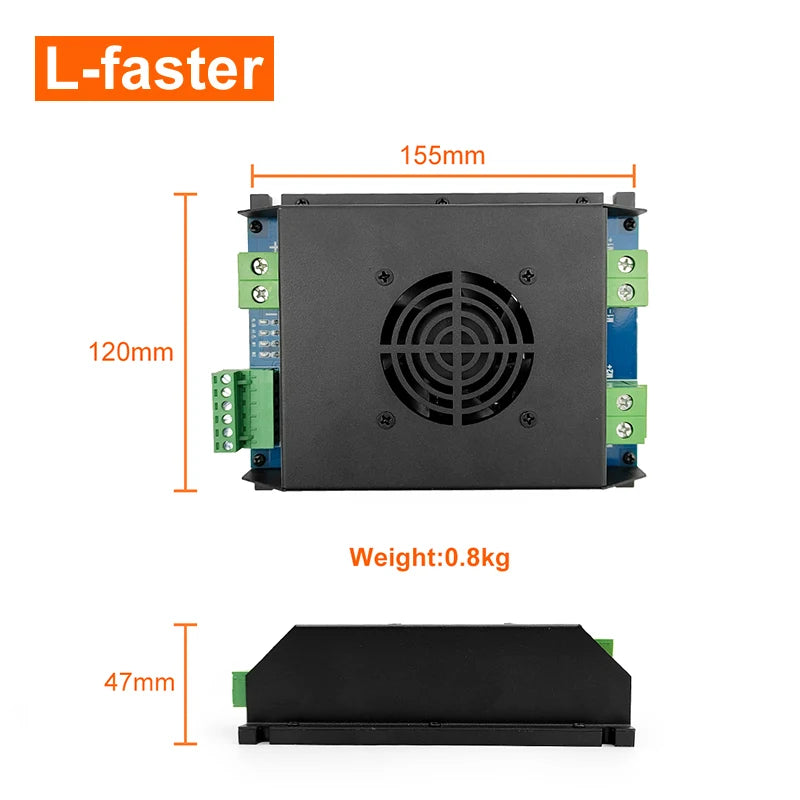

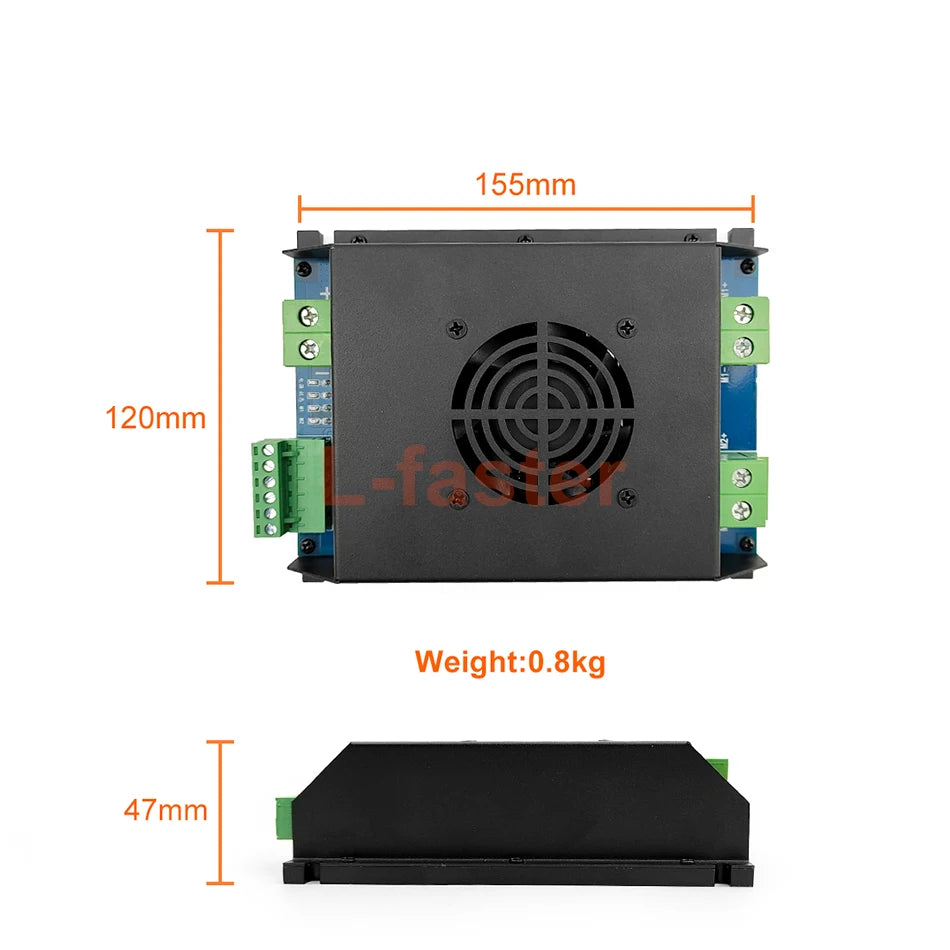

Size: 155x120x47mm / 180x90x50mm
Weight: 0.8kg / 1.2kg

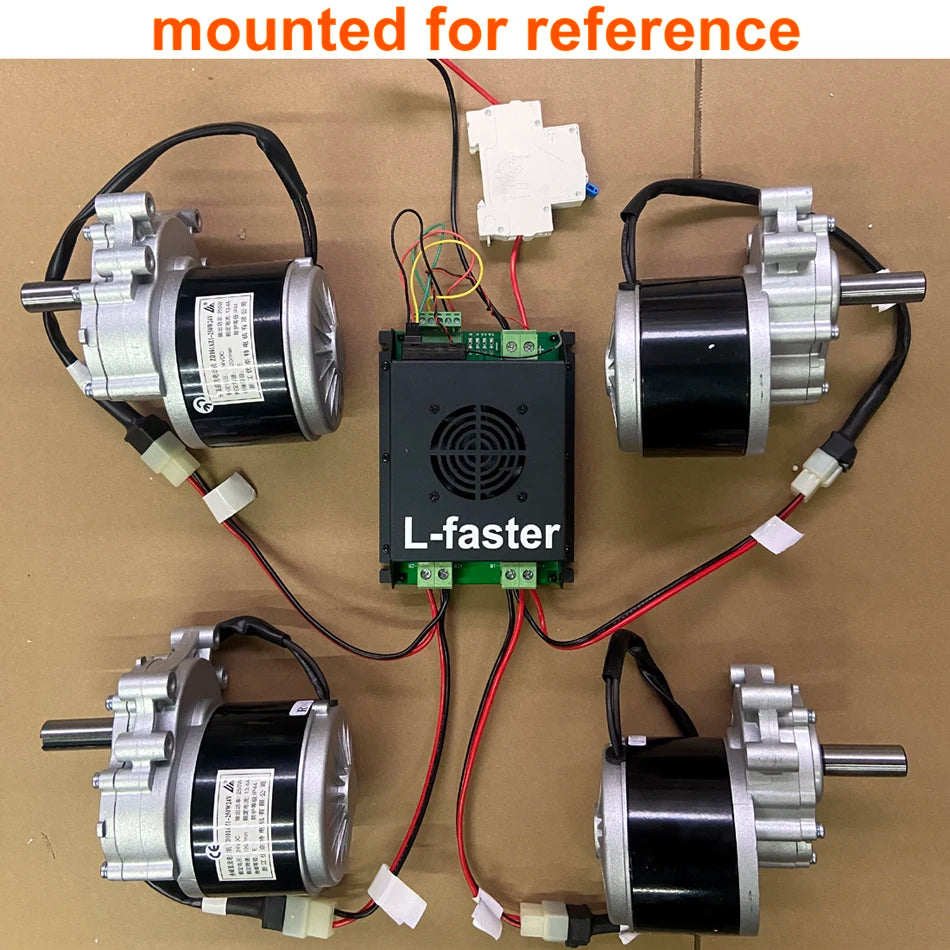

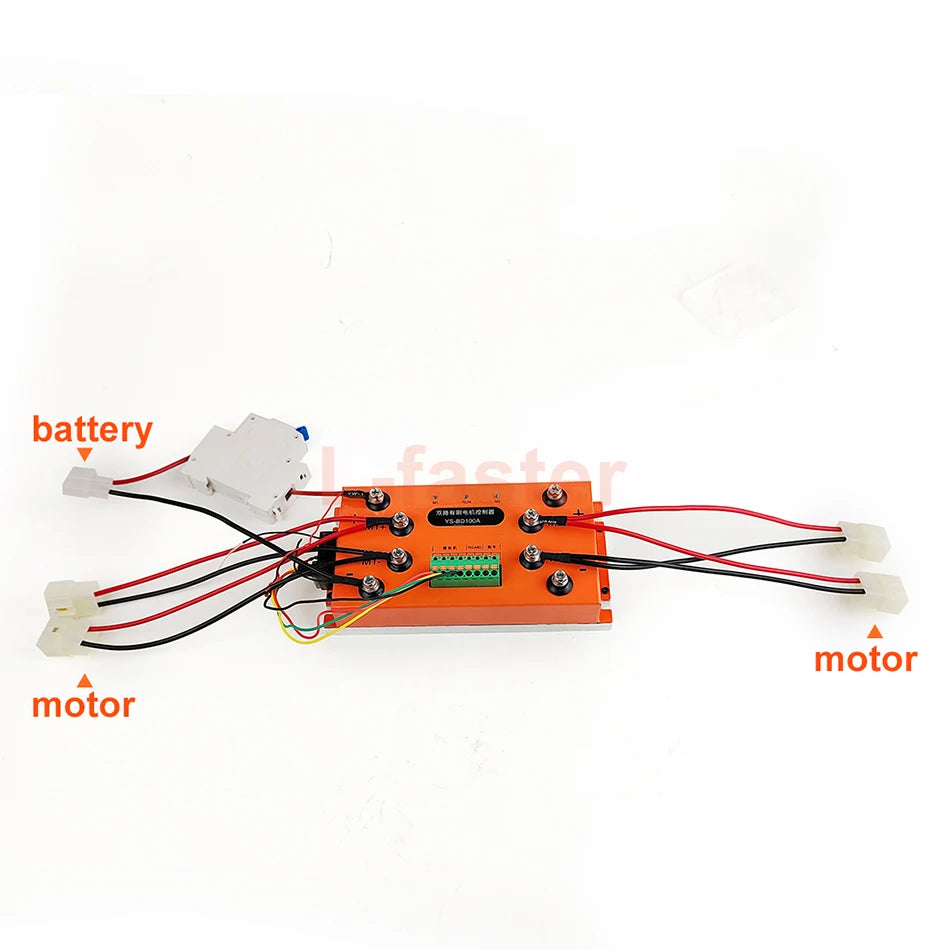

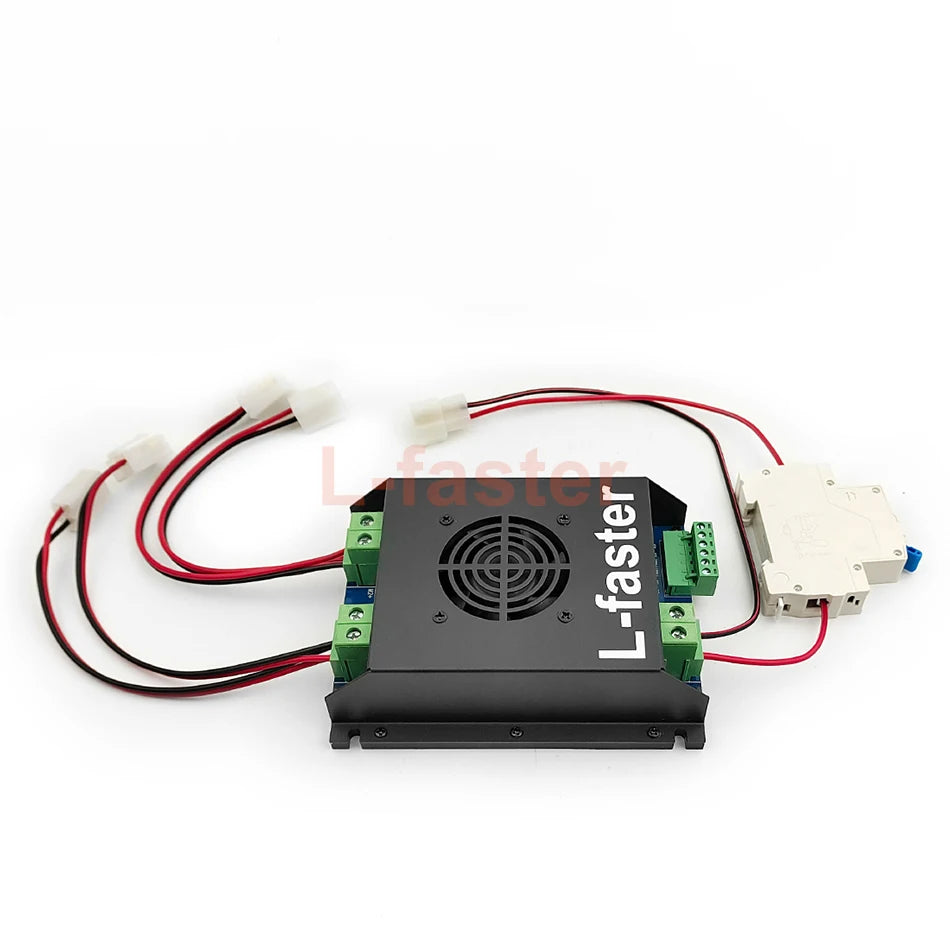

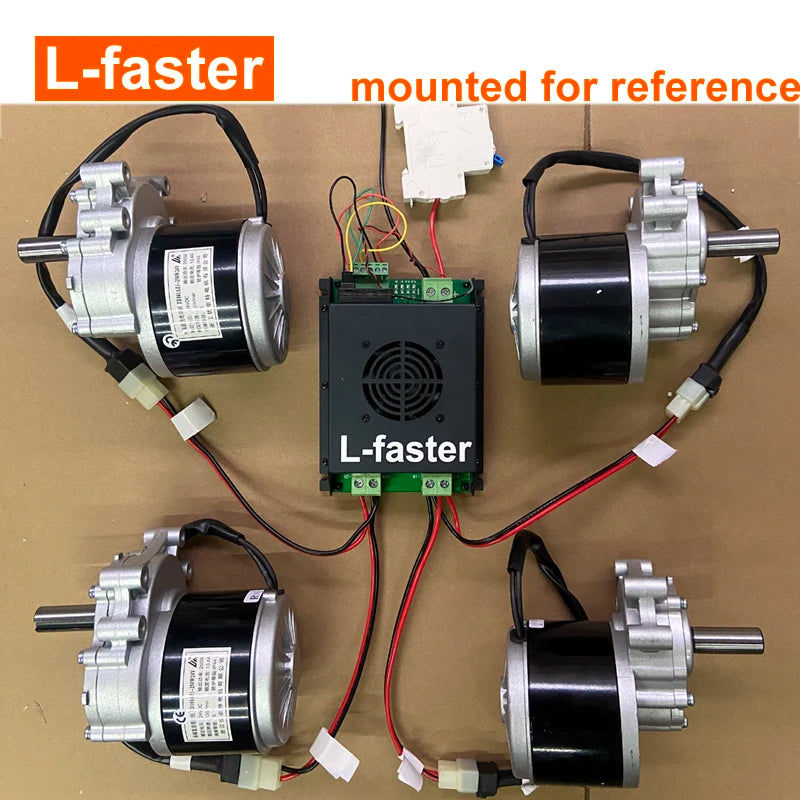

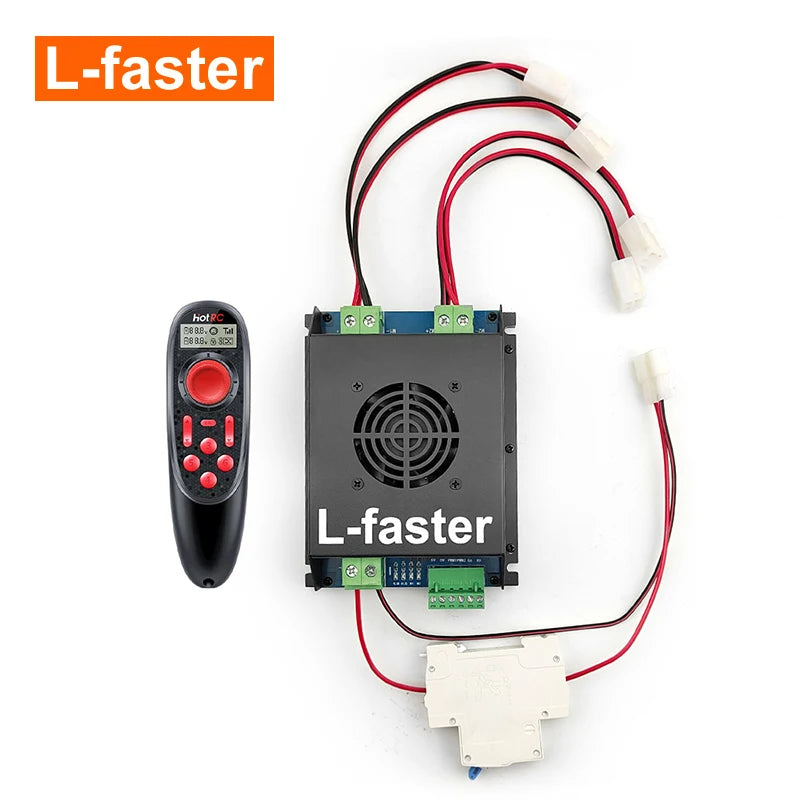

The 4WD controller has only 5 plugs: 1 plug for the 24V battery, 4 plugs for the motors.

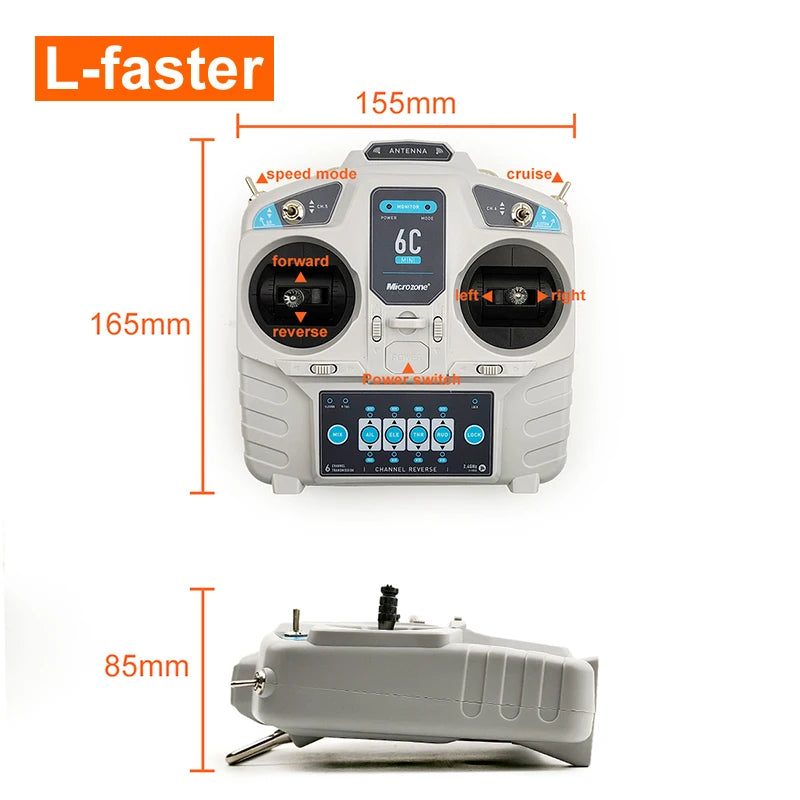

Remote joystick specification
Weight: 0.1kg
Channels: 6CH
RF Range: 2.4Ghz ISM(2.4005-2.483.5GHz)
RF power: <100mW
Modulation: GFSK
Spread spectrum: FHSS
Reaction speed: PWM:≤20ms
RF Distance: Ground 300M
Receive sensitivity: <-97dbm
Transmitter voltage: DC 5V
Battery:1200mah recharge battery(built in)
This remote joystick can control the 4 motors go forward, backward, turn left, turn right, and cruise.
4WD 250W controller:
4WD 350W controller:



Buyers need to know:

The price does not include insurance and any taxes of import country, any import charges or fees are buyer's responsibility, thanks for your understanding.

Due to the time difference between China and other countries, when you are browsing the product in my shop, I may be not online, but please be assured, I will view the store every day, if you have any questions please send me a message, I will reply as soon as possible. If you make the order, I will deliver the goods in the shortest possible time. Thank you for your understanding and support.

In addition, on logistics, either China Post Air or EMS, sometimes it may not display the real-time logistics information in your order , please do not worry, I will be always query the logistics information for you on the official website, and make a screenshots then sent to you.
