Honton Bga Rework Machine R490 Solder Soldering Station

$1,353.95 USD

~~$2,256.99 USD~~ $1,353.95 USD

Sale Sold out

Shipping calculated at checkout.

7-15 business daysEstimated delivery window with tracking when available.

30-day return reviewContact us first. Return address is provided after review.

Secure Shopify checkoutPayment is processed through Shopify checkout.

Voltage 220V 110V

Ships From Russian Federation Poland China Mainland United States

Before you order: Most orders arrive within 7-15 business days. If a product arrives damaged, defective, or incorrect, contact us with photos and your order number so we can review it and work with you on a reasonable solution.

SPECIFICATIONS

Bottom Preheat: IR

Certification: CE

Consumption of bottom (HR): 800W

Consumption of upper (HR): 800W

General power: 4KW

Heating: HR

High-concerned chemical: none

Model Number: HT-R490

Nozzle of bottom(HR): 50x50 mm

Nozzle of upper(HR): 4pcs: 19x19, 29x29,34x34,37x37 mm

Origin: Mainland China

Power: 220v/110v

Size of applicable PCB: MIN 10mm*10mm/ MAX 350mm*400mm

Size of applicable chips: ≤80mmx80 mm

is_customized: Yes

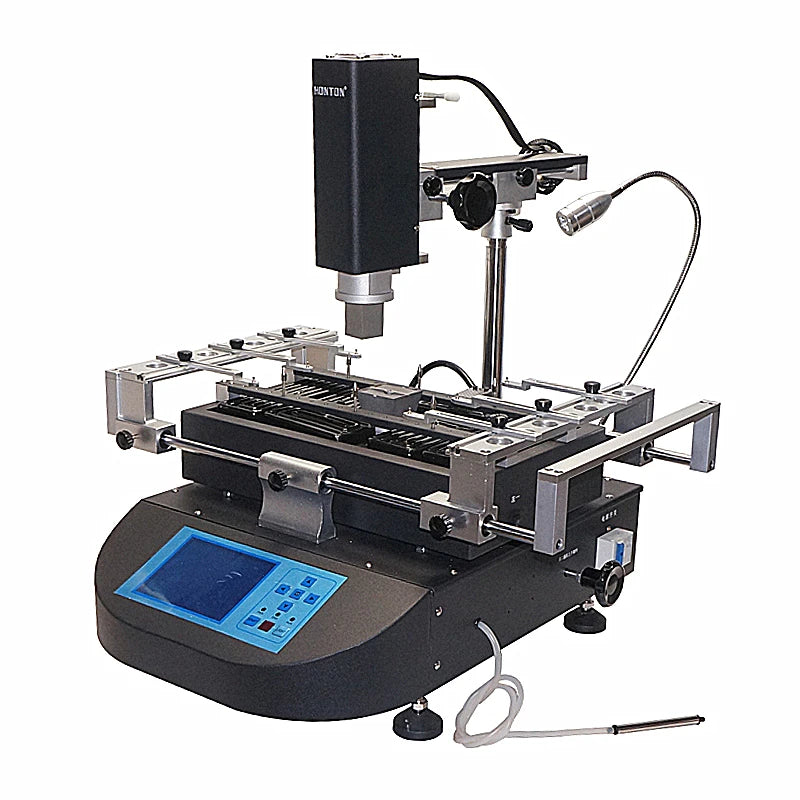

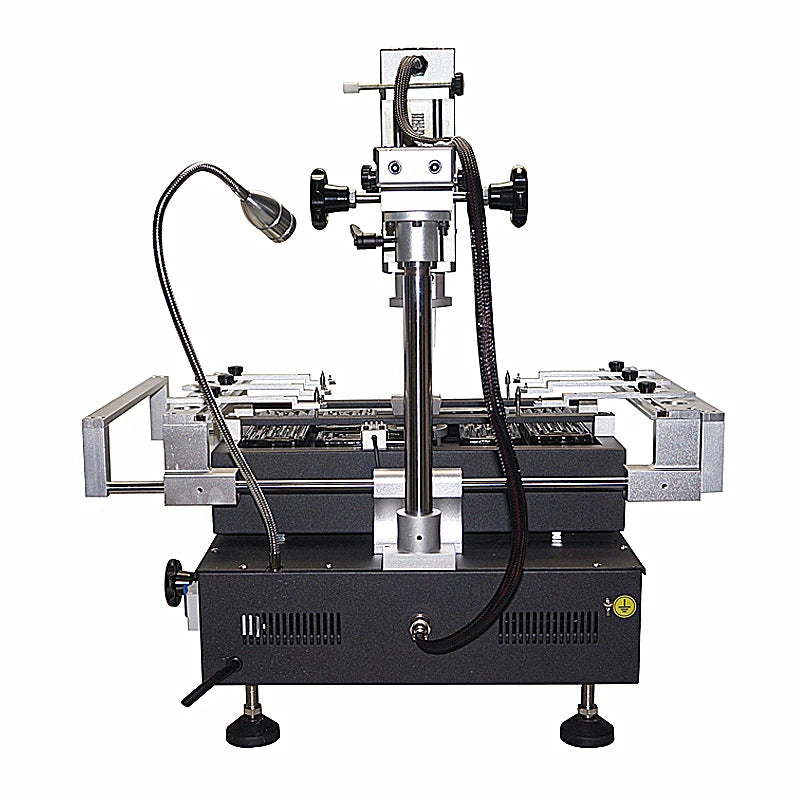

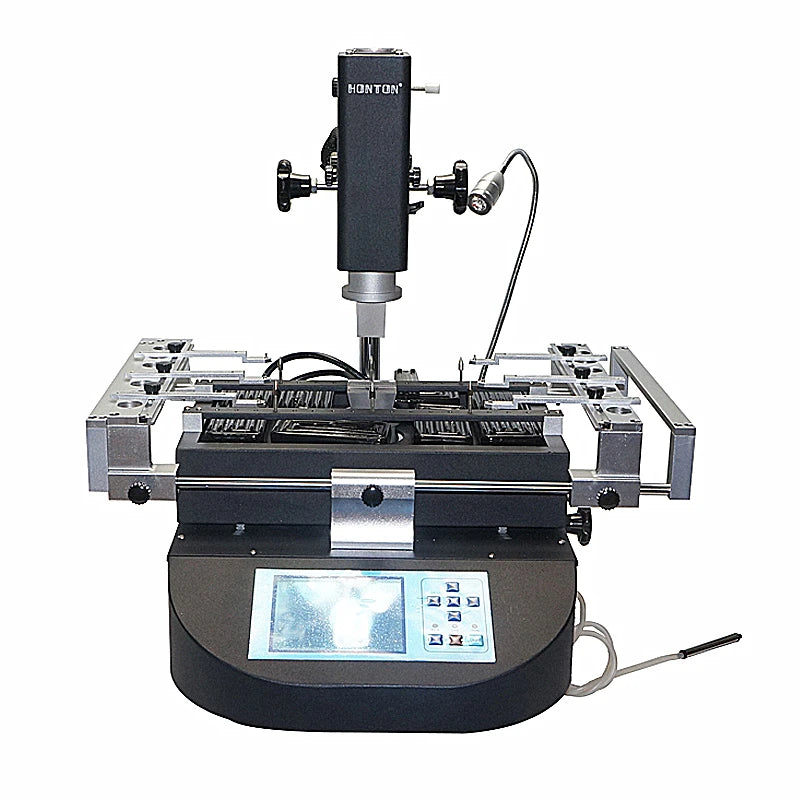

Honton BGA Machine HT-R490 Rework Station with Independent Temperature Control

Technical Parameters

Basic Parameters
Heating	HR
Dimension	L580mmx W560mmx H650mm
Weight	28kg
Total weight	About 35 kg, vary with the differen need of the users
Electrical Parameters
Power	220V AC
Upper Heating	HR
Size of upper (IR)	---------------
Consumption of upper (IR)	---------------
Nozzle of upper(HR)	4pcs: 19x19, 29x29,34x34,37x37 mm
Consumption of upper (HR)	800W
Bottom Heating	HR
Nozzle of bottom(HR)	1 pcs: 50x50 mm
Consumption of bottom (HR)	800W

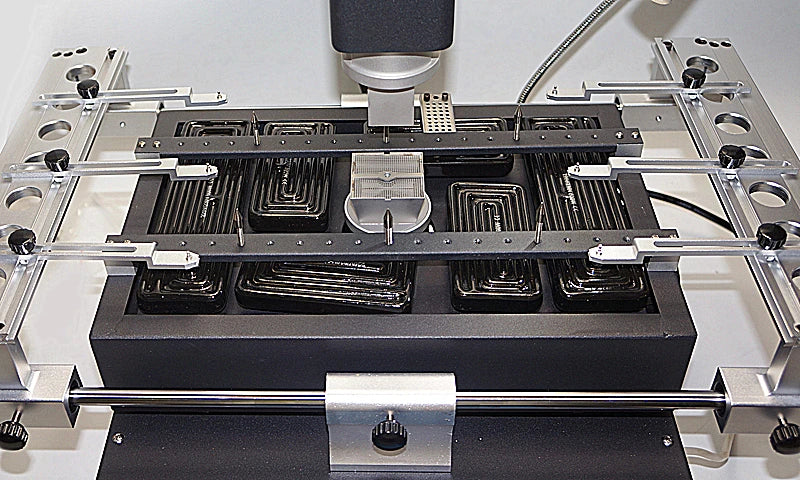

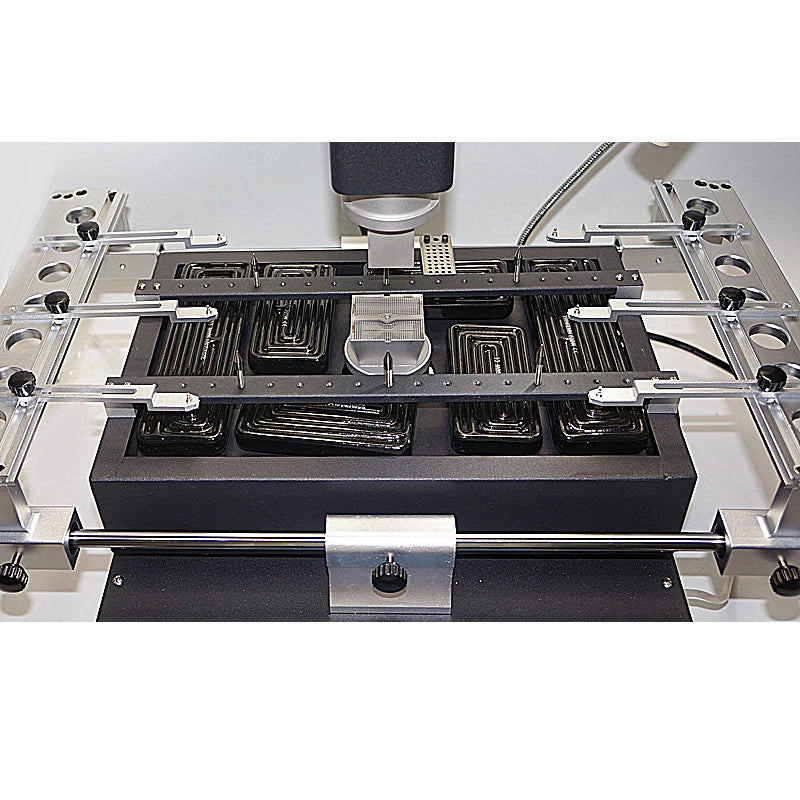

Bottom Preheat	IR
Consumption of preheat (IR)	2400W
General power	4KW

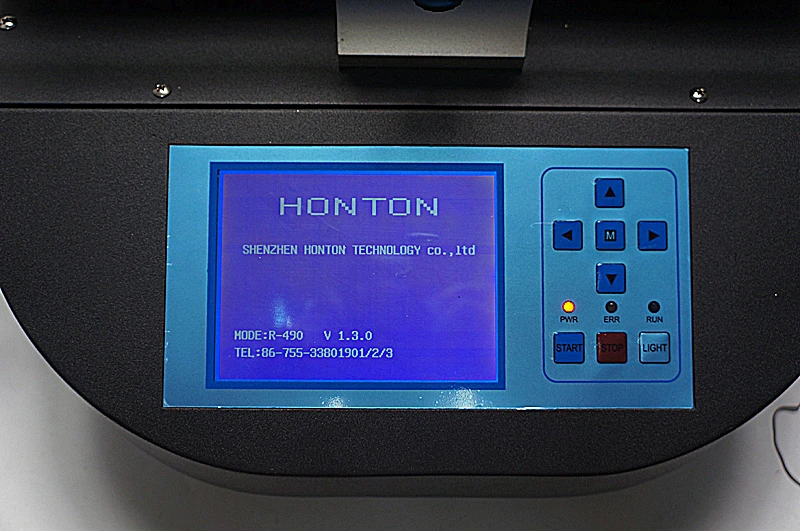

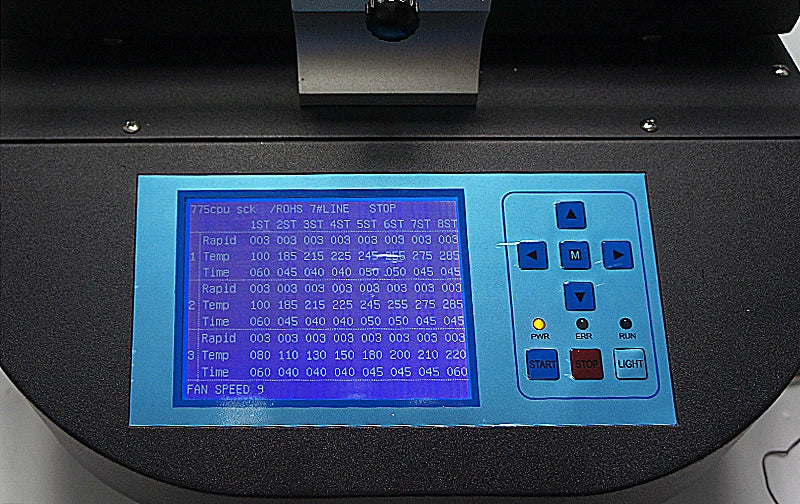

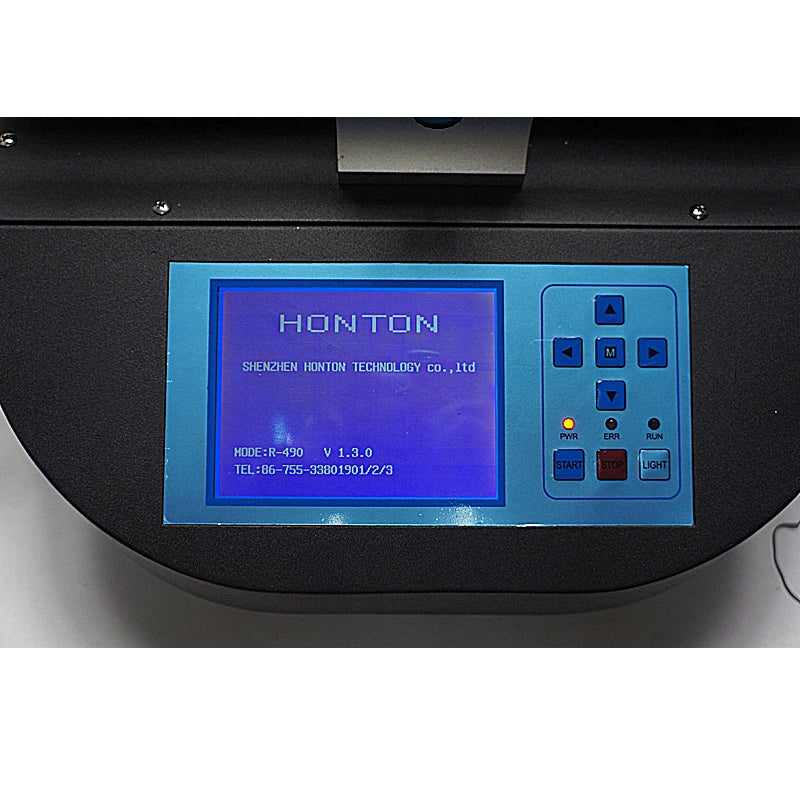

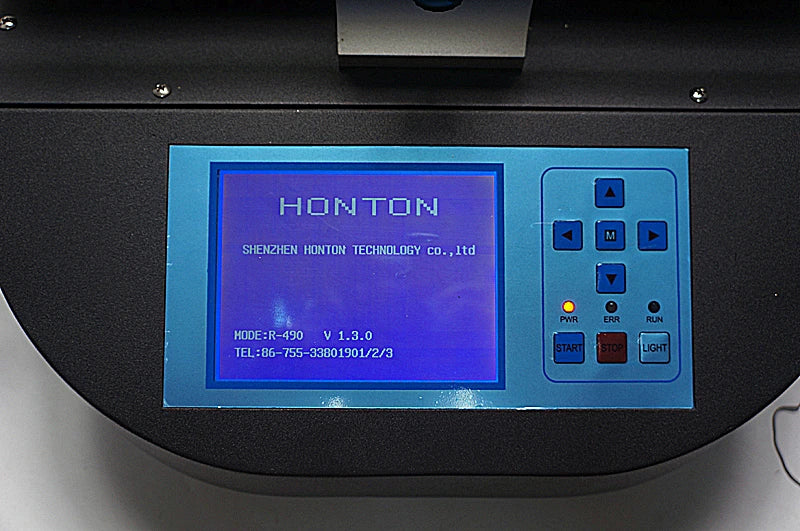

Temperature Control
Control mode of Upper	Independent temperature control, high-precision closed-loop control, precision ± 0.5%, Alarm
Control mode of Bottom	Independent temperature control, high-precision closed-loop control, precision ± 0.5%, NO Alarm
Rework Function
SMD	Suit for welding, remove or repair packaged devices such as BGA,PBGA,CSP,multi-layer substrates, EMI metallic shield product and solder/lead free Rework welding
Size of applicable chips	≤80mm x80 mm
Size of applicable PCB	MIN 10mm10mm MAX 350mm400mm

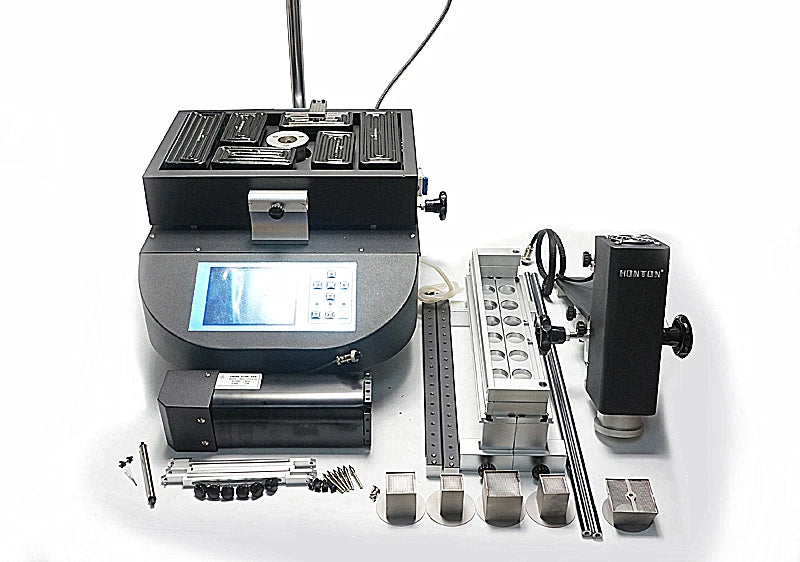

Packing list:

1× bga rework station

5× nozzles: 4 pcs top(19,29,34,37mm) and 1 pcs bottom(50mm);

6× pcb jig (with screw)

1x vacuum pen

1× k-type thermocouple

1x socket head wrench

1x Computer Cable

1× CD of manual and software (if not get, may be lost in customs, please contact us)

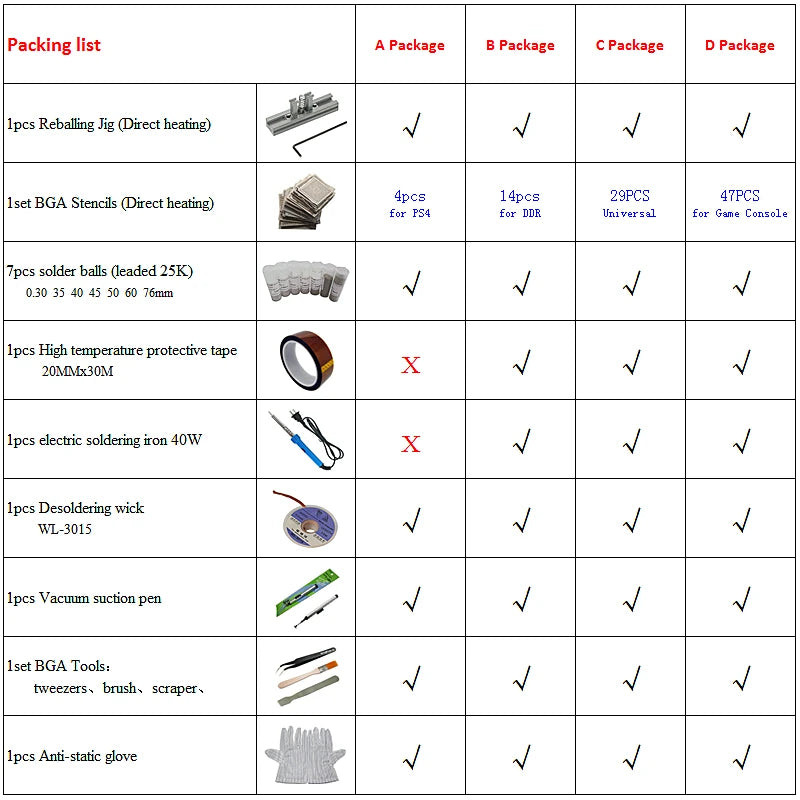

Free gift :

(ABCD package , you can choose one ,We send C package by default)
