SPECIFICATIONS
High-concerned chemical: none
Item Type: Vacuum Cleaner
Model Number: Vacuum Cleaner For CNC Router
Origin: Mainland China
features 1: for CNC Engraver
features 2: for CNC Machines

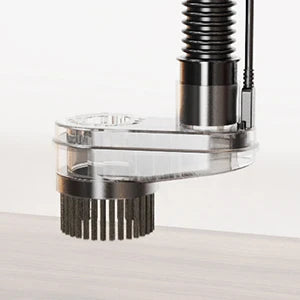

features 3: Spindle Dust Shoe
features 4: Vacuum Cleaner
How to determine if the vacuum cleaner （Little Monster M1）is compatible with my machine equipment?
Our little monster vacuum cleaner is compatible with a standard 775 motor, and is designed with holes for motors with a diameter of 52mm and a power of 500W. It is fixed with a half round head hexagonal M4x16mm screw

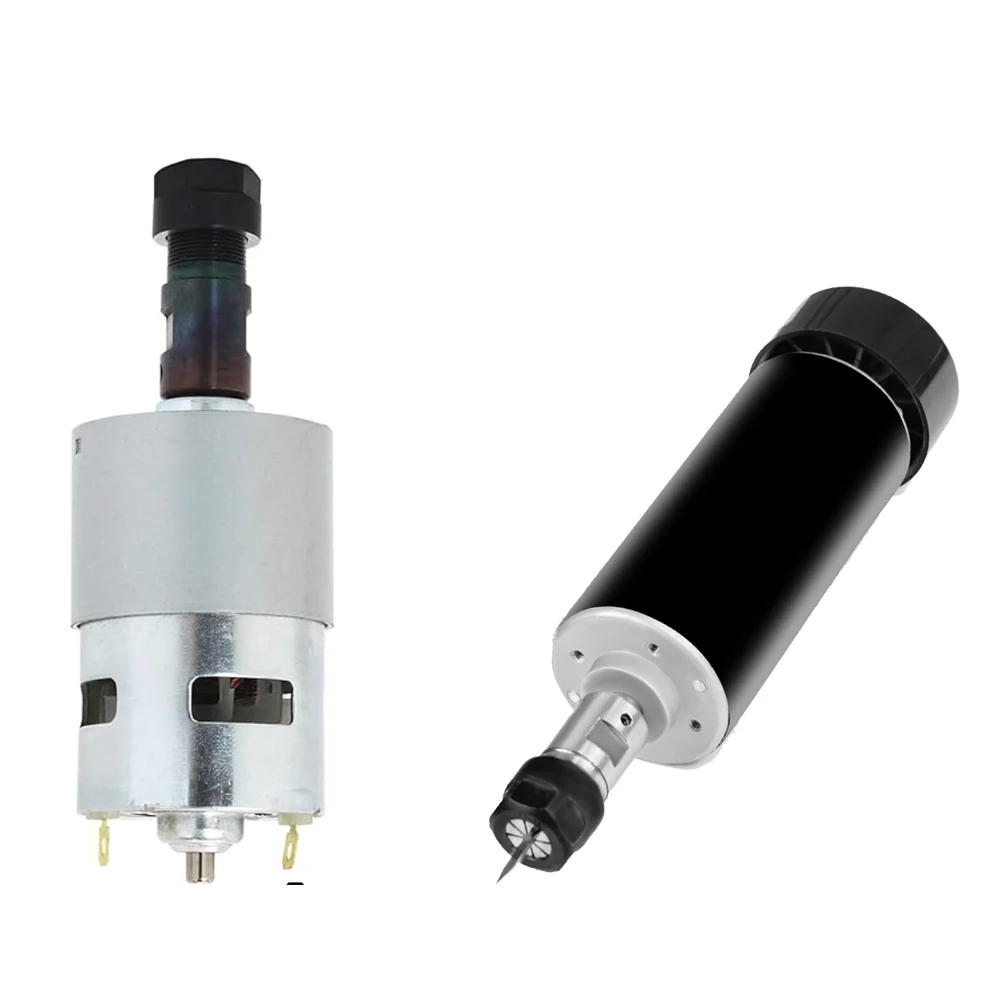

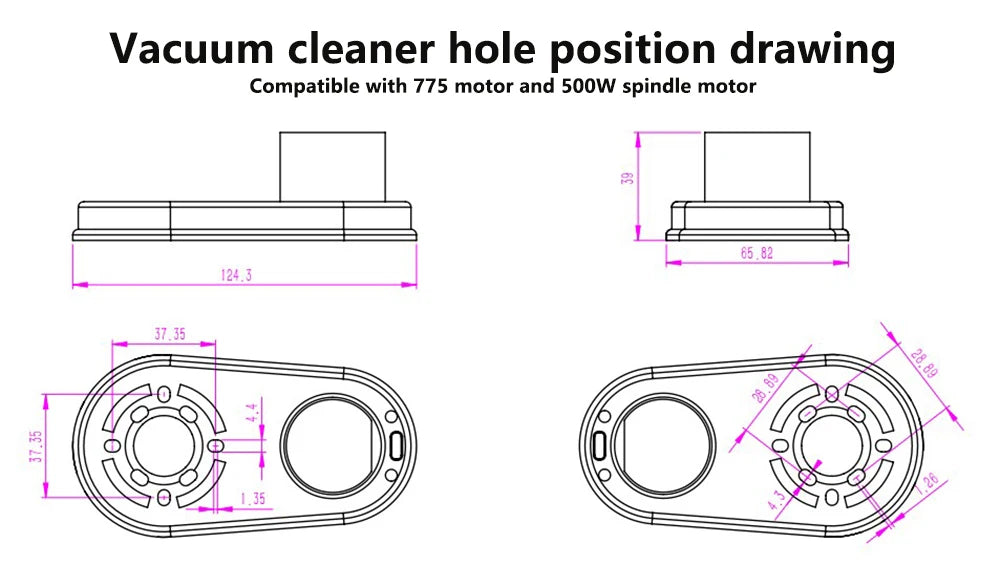

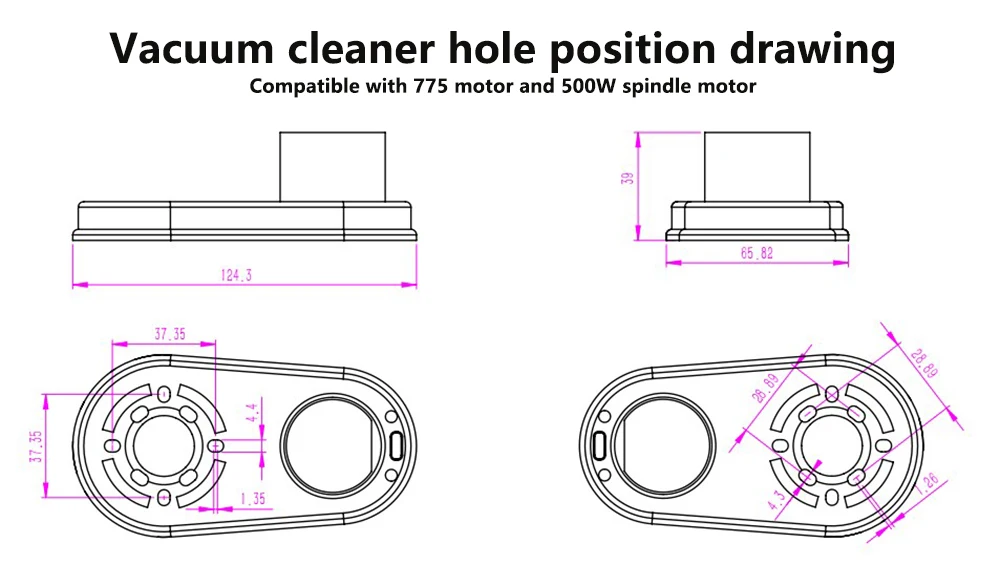

The following pictures provide schematic diagrams of two spindle motors and hole size diagrams of the vacuum cleaner. You can check the hole size to make a judgment.
Features：

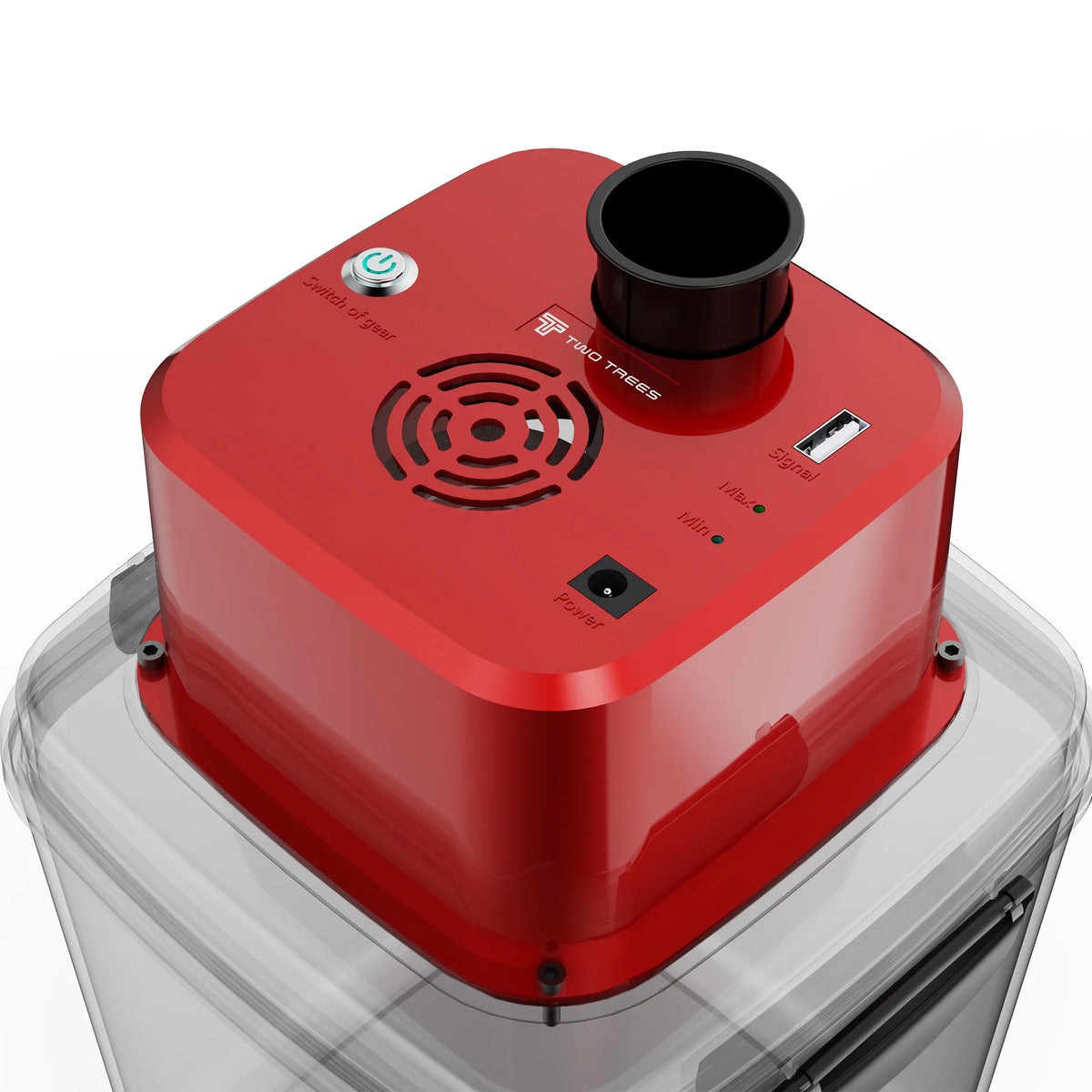

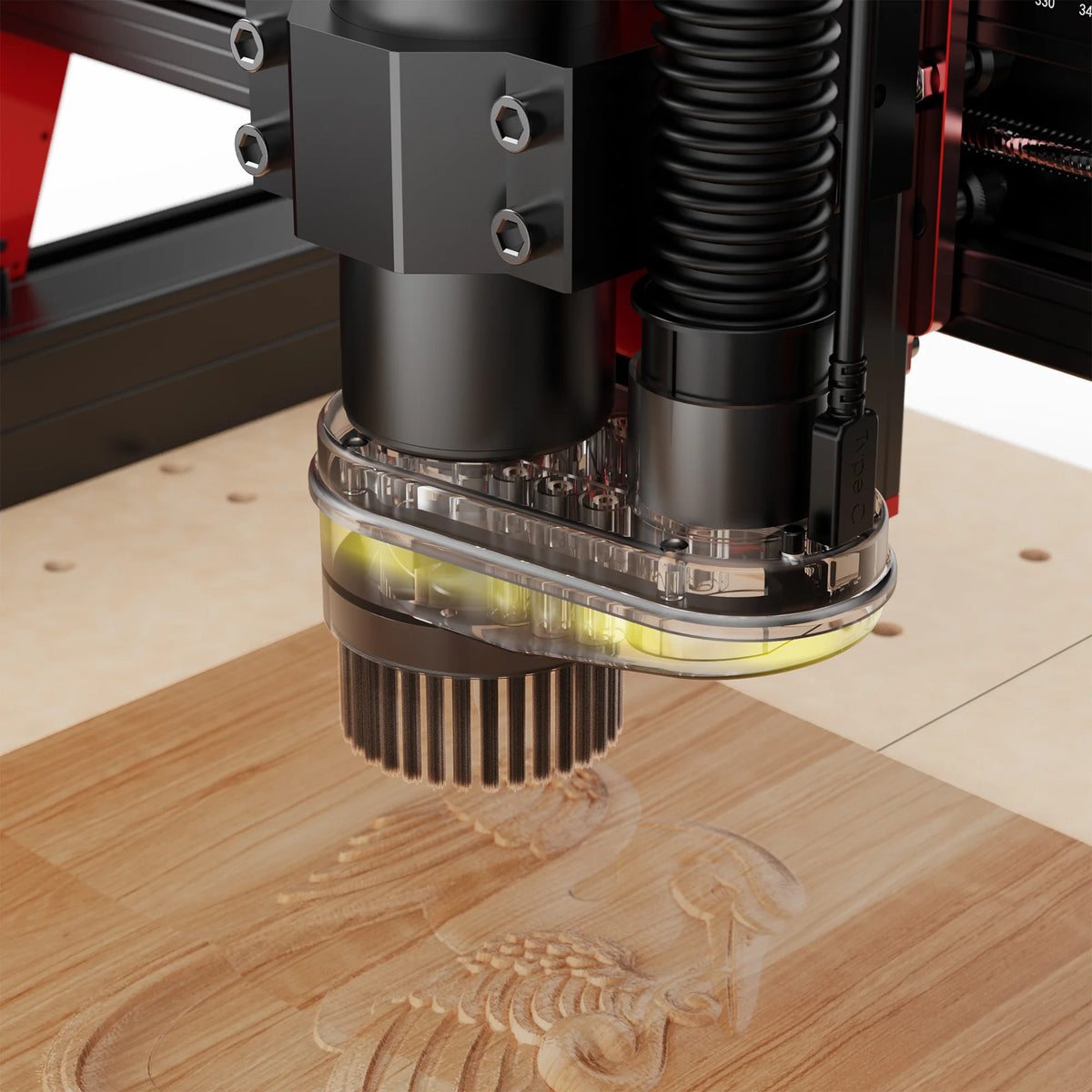

1. Auto start-stop & LED at suction ensure clear night carving view. Plus, ion generator for air purification.
2. The vacuum adopts a brushless motor with a max speed of 50,000 RPM, ensuring efficient suction and enhanced durability.
3. The vacuum features a transparent bottom casing for easy monitoring of dust bag fill level.

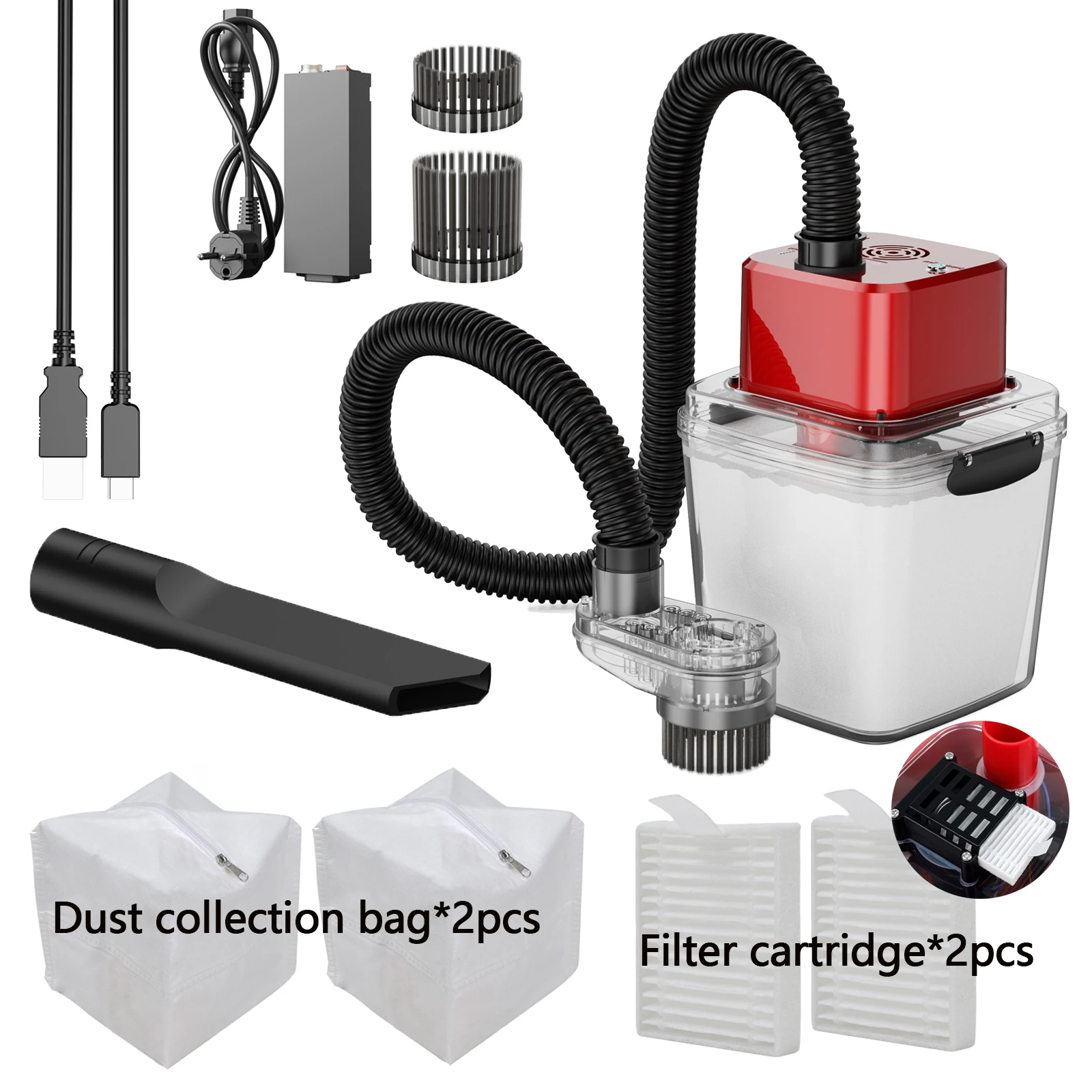

4. Zipper-style dust bag design for easy debris disposal and reusability. Bag capacity: 2.8L.
5. Includes slim nozzle for household cleaning when not carving.
6. Vacuum features internal filter cotton design, ensuring dust-free air emission post-filtration.
7. Brushless motor with overheat protection. Automatically stops if temperature exceeds threshold for safety.
8. With the dust collection nozzle attached, suction power reaches up to 6000 Pa, ensuring strong suction to meet various cleaning needs.
Product parameters

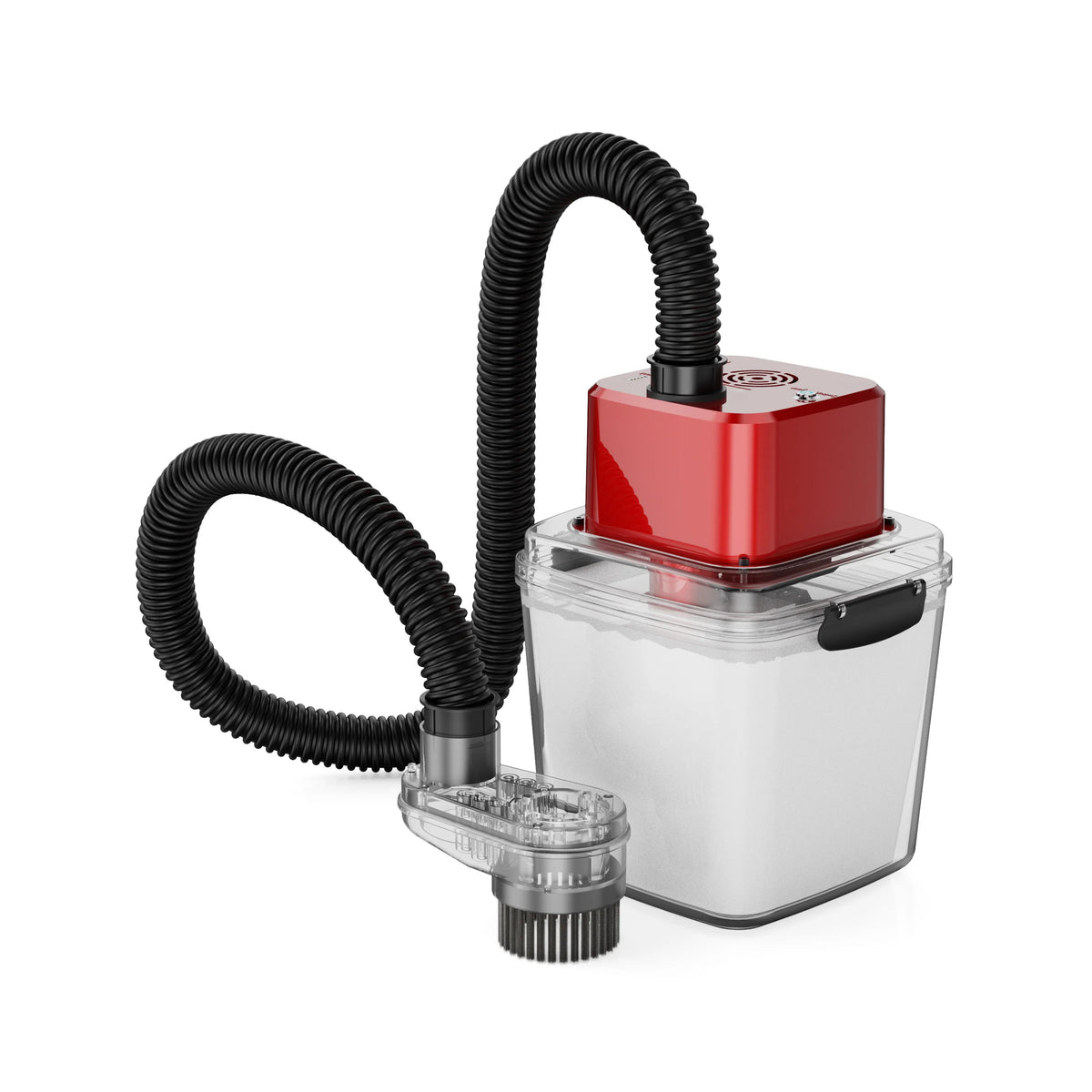

Model: Vacuum Monster (M1)
Main body and shell material: plastic

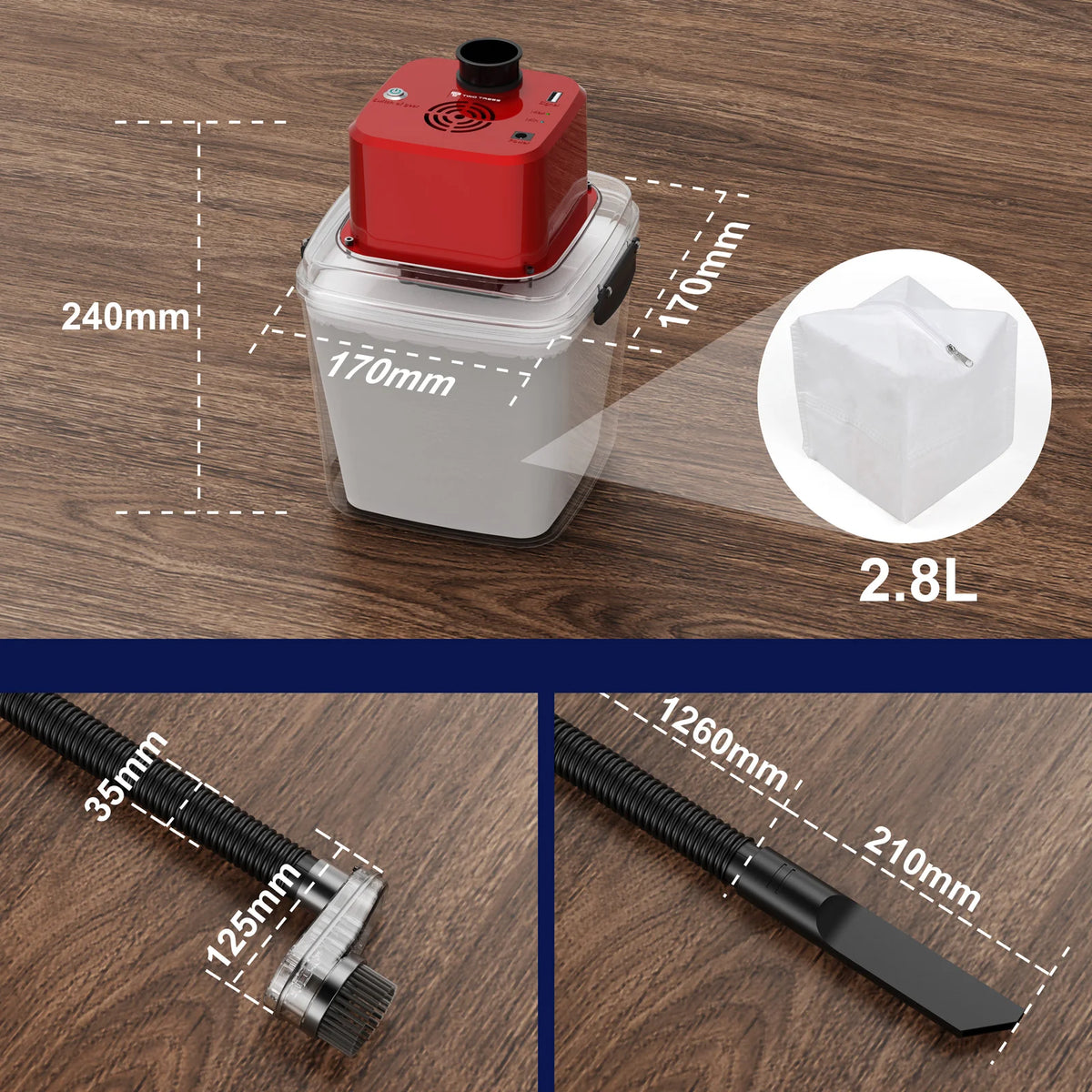

Product size: 170mm * 170mm * 240mm
Motor type: brushless motor
Dust storage type: dust collection bag
Additional features: automatic start stop, LED light, negative ion generator (air purification)
Start mode: manual, automatic start stop
Gear mode: 2nd gear
Bellows length: 1.2mm (diameter 32mm)
Battery life: 48 hours
Net weight of product: 2.5KG
Packaging size: 302 * 240 * 290mm
Power supply method: 24V 3A power adapter
Switching power supply parameters: 100-240V~50/60Hz 1.5A (MAX) 24V ⎓ 3A
Control board input voltage: 24V
Power consumption of the whole machine: 75.72W
Standby power consumption: 0.84W

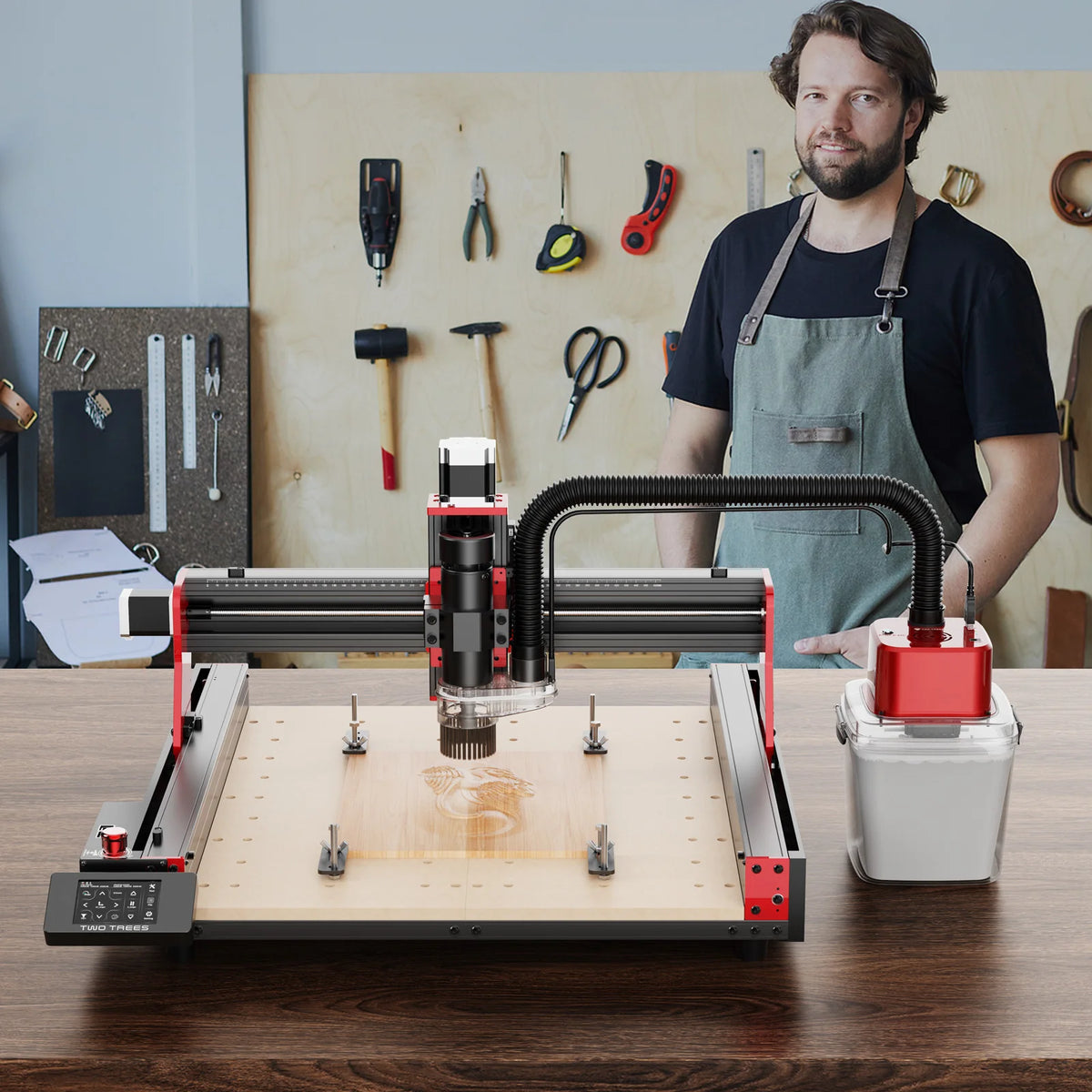

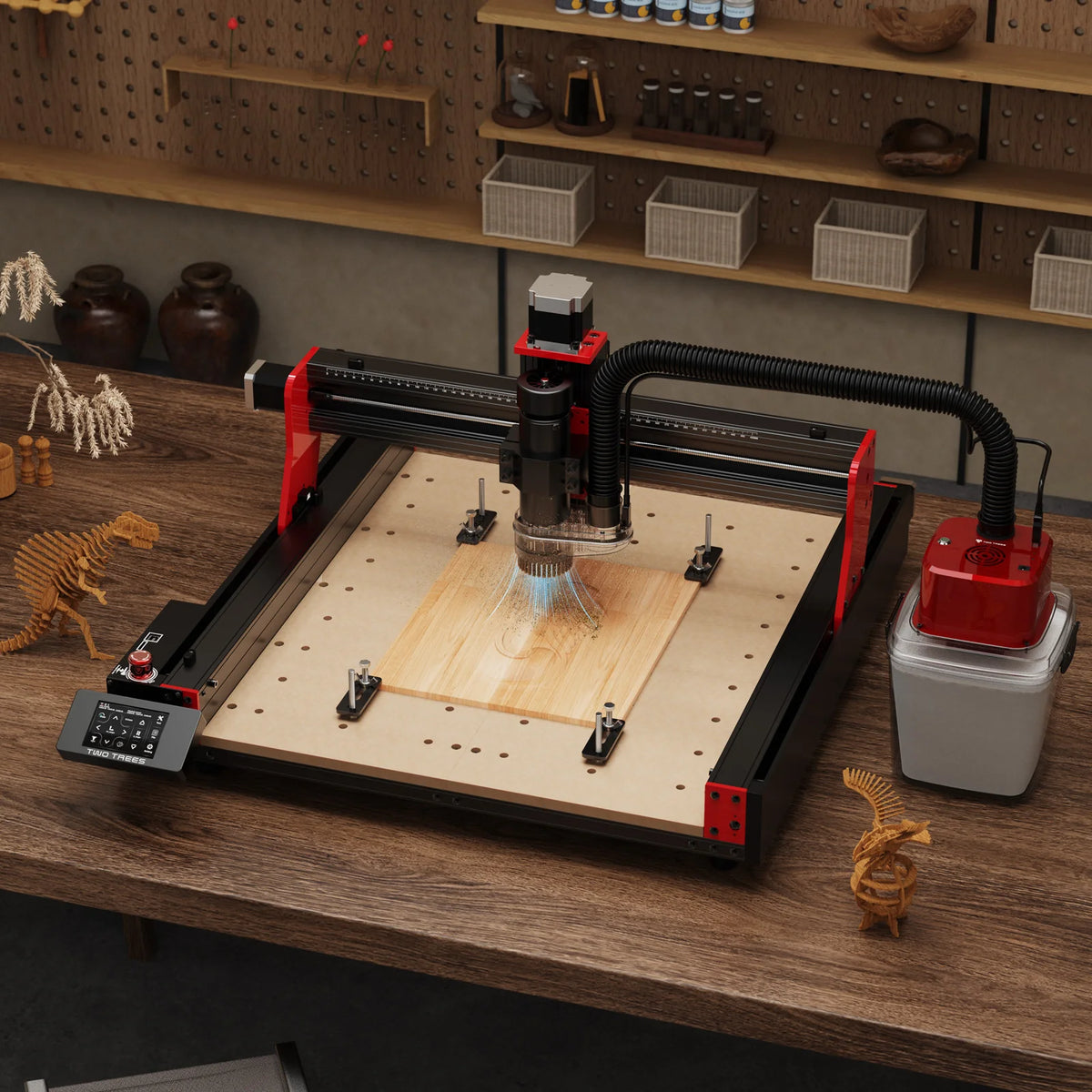

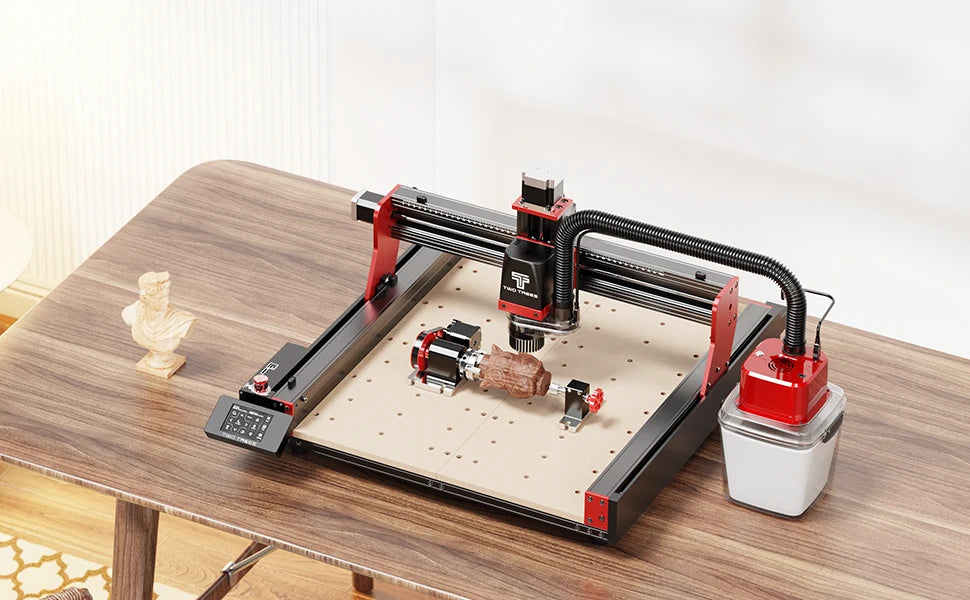

Compatible machines: TTC450/TTC450 Pro
Suitable spindle: 775 motor/500W spindle
Security certification: CE\FCC\ROHS
Environmental parameters: The optimal carving environment temperature is between 0 ° C and 40 ° C
