SPECIFICATIONS

Origin: Mainland China

feature 1: Ultrasonic Cleaning

feature 2: Smart Oil Pressure Control System

feature 3: 10 CoreFunctions

feature 4: Automatic Cleaning &Testing

feature 5: Adjustable Working Voltage

feature 6: Backlit Digital Display

MRCARTOOL V209 GDI EFI FEI Piezoelectric Fuel Injector Cleaner & Tester Machine 4 Cylinders Fuel Injector Cleaner Tester for Car

Description

MRCARTOOL V209 Car Fuel injector diagnostic and cleaning equipment is a mechatronics product that combines ultrasonic cleaning technology and microcomputer oil pressure closed-loop control cleaning and detection technology. This product simulates various operating conditions of the engine, and cleans and inspects the fuel injectors of various automobiles and motorcycles. This equipment is the necessary and preferred equipment for the automobile and motorcycle repair and maintenance industry, research and teaching and training departments.

Notice: The cleaning fluid is 3M car injector cleaning fluid, and the test fluid is industrial alcohol.Its working voltage range is 110-220V. V209 Car Fuel Injector Tester Cleaner versions: English（If you would like to customize the language version,you can contact customer service before placing the order, Minimum order quantity: 10pcs,support customized language versions）

Product Features：

V209 Car Fuel Injector Tester Cleaner Machine

1. [Wide range of applications] : V209 Car Fuel Injector Tester Cleaner has a good compatibility. Support for more cars and motorcycles to ‘clean’ and ‘test’ fuel injector. And also can be used directly for GDI injector cleaning and testing.

2. [Easy to operate ] : When cleaning, fix the car injector in the socket of the washing tank, add an appropriate amount of 3M cleaning fluid, and the cleaning can be completed after power on; when testing, fix the car injector in the oil separator and add it to the glass tube Industrial alcohol, the test can be completed after power on.

3. [Leading technology&ADVANCED STRUCTURE] : At present, only our company produces this portable and multi-functional automobile fuel injector cleaning and testing machine, and it has obtained a special patent. Equipped with pressure gauge, glass tubes, testing liquid level gauge and multifunctional control panel, which can be easily operated through clear menu, and monitor the fuel injector detection and fuel dynamic value in real time.

4. [Safety]: Its working voltage range is 110-220V. When the machine is short-circuited, the fuse inside will automatically trip to shut down the running machine to prevent electric shock.

5. [2 year warranty]: For damage caused by non-human factors, we promise to resend parts for free within 2 years.

*For Various Fuel Injectors

V209 can clean and test not only standard injectors but also GDl injectors

such as for Mercedes-Benz, BMW,Audi, Porsche, Ford,and other direct injection engines.

*Recovery Cleaning Fluid

Used cleaning fluid & testing fluid can be easily recovered.

*Adjustable Working Voltage

Select the appropriate voltage for precise adjustment and testing based on different types of fuel injectors.

MAIN DETECTION FUNCTIONS:

A Cleanning petrol injector with ultrasonic

B Cleanning spark plug.Put spark plug into cleaning tank ,input clean fluid and begin clean

C Testing injector injection in different situation, check leaking and blocking

D Cleanning injector without disassembly (need extra accessory and extra fee,choose by yourself)

E Cleanning throttle valve without disassembly. (need extra accessory and extra fee,choose by yourself)

F Cleanning and test motorcycle injector,testing function for HONDA YAMAHA SUZUKI SANYANG injectors only, (need extra accessory and extra fee,choose by yourself)

*Fuel Injector Cleaner- Clean Your Fuel Injectors Without Removal

➤ ULTRASONIC CLEANING

It can perform ultrasonic cleaning on single or multiple injectors simultaneously, which can eliminate thoroughly blockages on the injector accessories and internal.Also testing four injectors simultaneously, greatly save your precious time.

➤FUEL INJECTOR TEST

Fuel injection volume detection: It can detect the fuel injection volume of the fuel injection nozzle under specific working conditions (such as the same time and the same number of times).

Product Specifications:

Power supply : AC110V/220V

Frequency :50Hz/60Hz

Speed range :0~5000r/min

System pressure : 0~0.6Mpa

PWM pulse width:0-20.0ms

Cleaning frequency:40kHz

Ultrasonic cleaing power:70w

Working time:0~30min

Cleaning tank capacity:1600ml

Cylinder Volume:110ml

Product size :317x243x276mm

Product weight:11kg

V209 Car Fuel Injector Tester Cleaner how to work:

1.Clean injector's outside with cleaning liquid before open machine .Putting injectors in ultrasonic bathtub after the outside of injector are free of dirt.The cleaning fluid does not exceed the connection port of the pulse line.

2.Turn on ultrasonic system allowing the ultrasonic energy to dislodge any particles build-up inside the injectors.After cleaning, the remaining cleaning fluid can be recycled.

3.Fixed injectors on main machine,testing injectors for resistance, shorts, and current draw.The test liquid can be added to the half of the glass tube.

4.Performing leak test, spray pattern, and flow rate testing on flow bench.The injectors are now returned to the flow bench for retesting of all functions.

PRODUCT DETAILS:

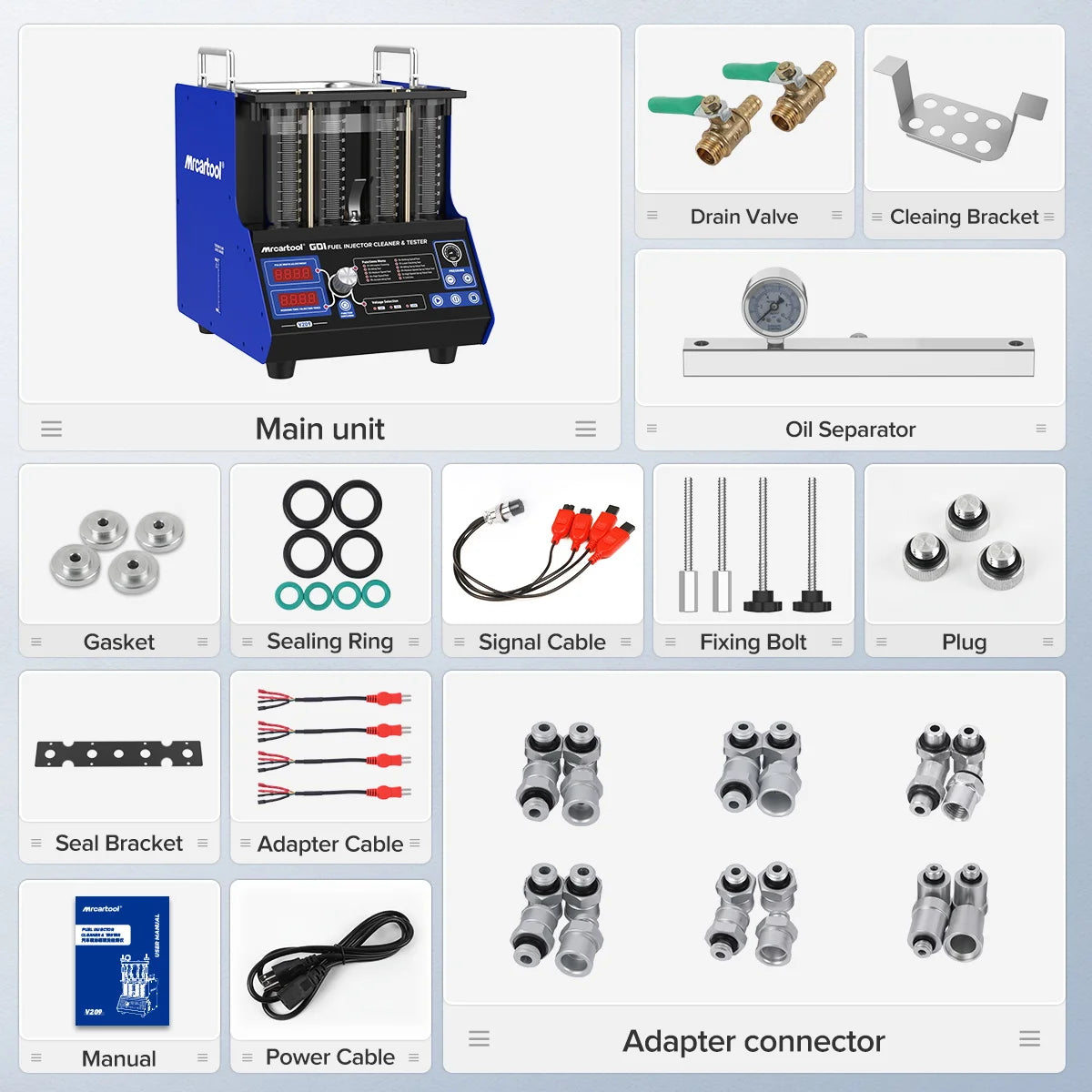

Package include:

1pcs * Main Unit;

1pcs * Oil Separator;

4pcs * Gasket;

1pcs * Pulse Signal Cable;

1pcs * Cleaning Fluid Drain Valve;

2pcs * Fixing Bolt;

24pcs * Adapter Connector;

4pcs * Adapter Cable;

3pcs * Plug;

1set * Sealing Ring;

1set * Sealing Bracket;

1pcs * Ultrasonic Cleaning Bracket;

1pcs * Power Cable;

1pcs * V209 User Manual.
