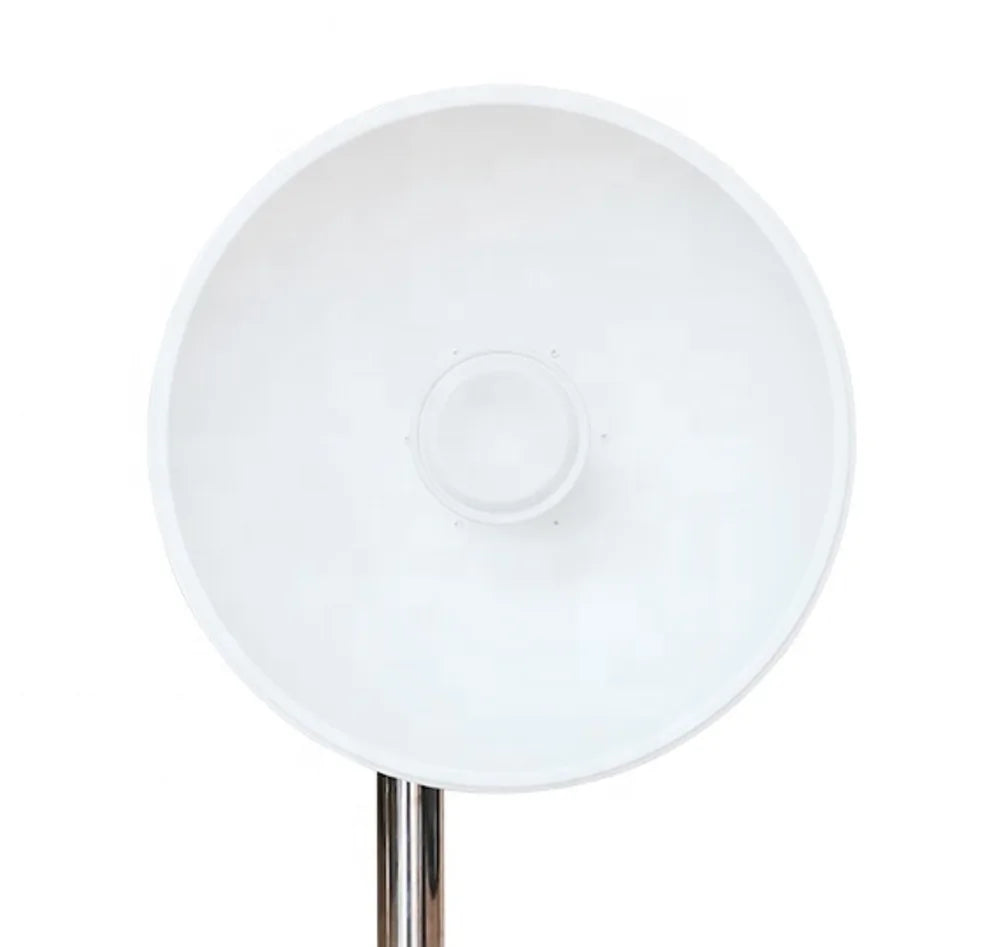

Long Range 29dbi 8g Wifi Parabolic Dish Mimo

$277.99 USD

~~$555.99 USD~~ $277.99 USD

Sale Sold out

Shipping calculated at checkout.

7-15 business daysEstimated delivery window with tracking when available.

30-day return reviewContact us first. Return address is provided after review.

Secure Shopify checkoutPayment is processed through Shopify checkout.

Color 5.8G

Before you order: Most orders arrive within 7-15 business days. If a product arrives damaged, defective, or incorrect, contact us with photos and your order number so we can review it and work with you on a reasonable solution.

SPECIFICATIONS

Cable Length: 150cm

Certification: CE

Connector Type: Soldering

Gain(dB): 29

High-concerned chemical: none

Impedance: 50

Model Number: transparent

Origin: Mainland China

Pins: Transparent

Specification: 10m

Products Description

Model	TDD-4865-29
Frequency Range	4800-6500MHz
Gain	29dBi
VSWR	≤1.8
Polarization Type	±45degree
Input Impedance	50Ω
Horizontal Beamwidth	6.5°
Vertical Beamwidth	6.5°
F/B Ratio	40dB
Maximum Power	50W
Connector Type	2*SMA
Lighting Protection	DC Ground
Dimension	420420120mm
Weight	6kg/2pcs
Rated Wind Velocity	126/ms
Working Temperature	-40℃~+65℃

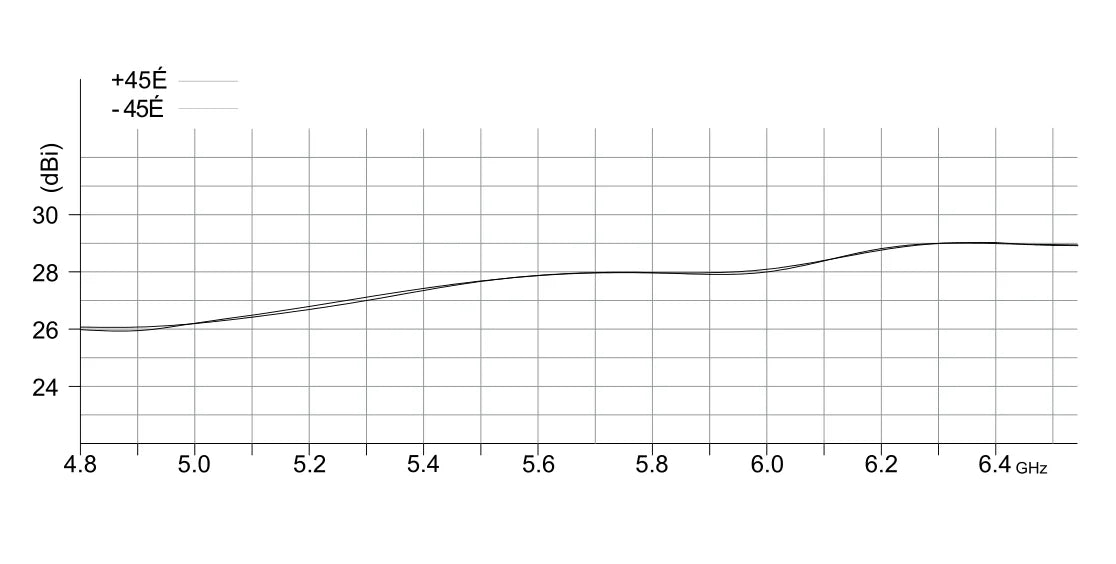

Radiation Pattern

This model is developed by our designers who have extensive industry experience. With this new and unique design, it meets the user's high gain requirements. Besides, with a very small volume, it's a good choice to save buyer's shipping cost.

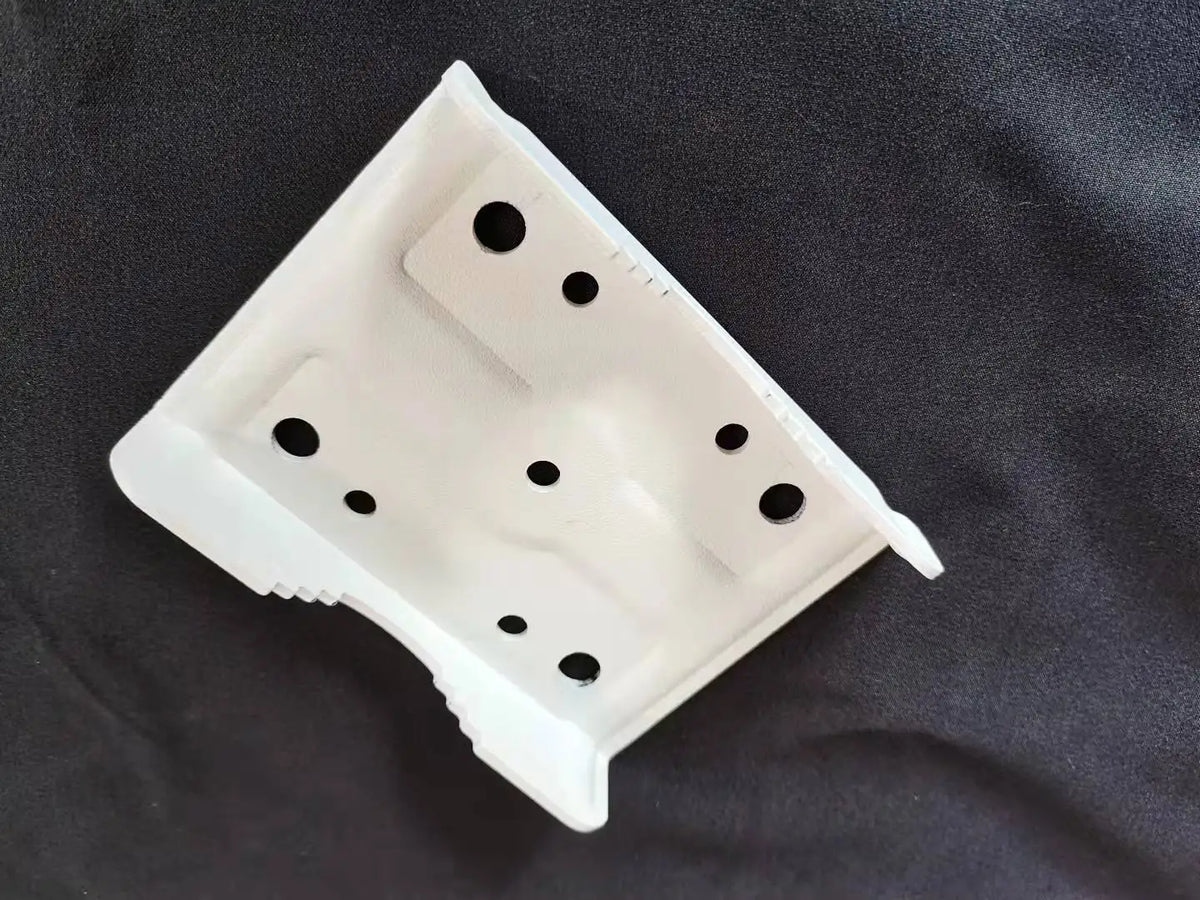

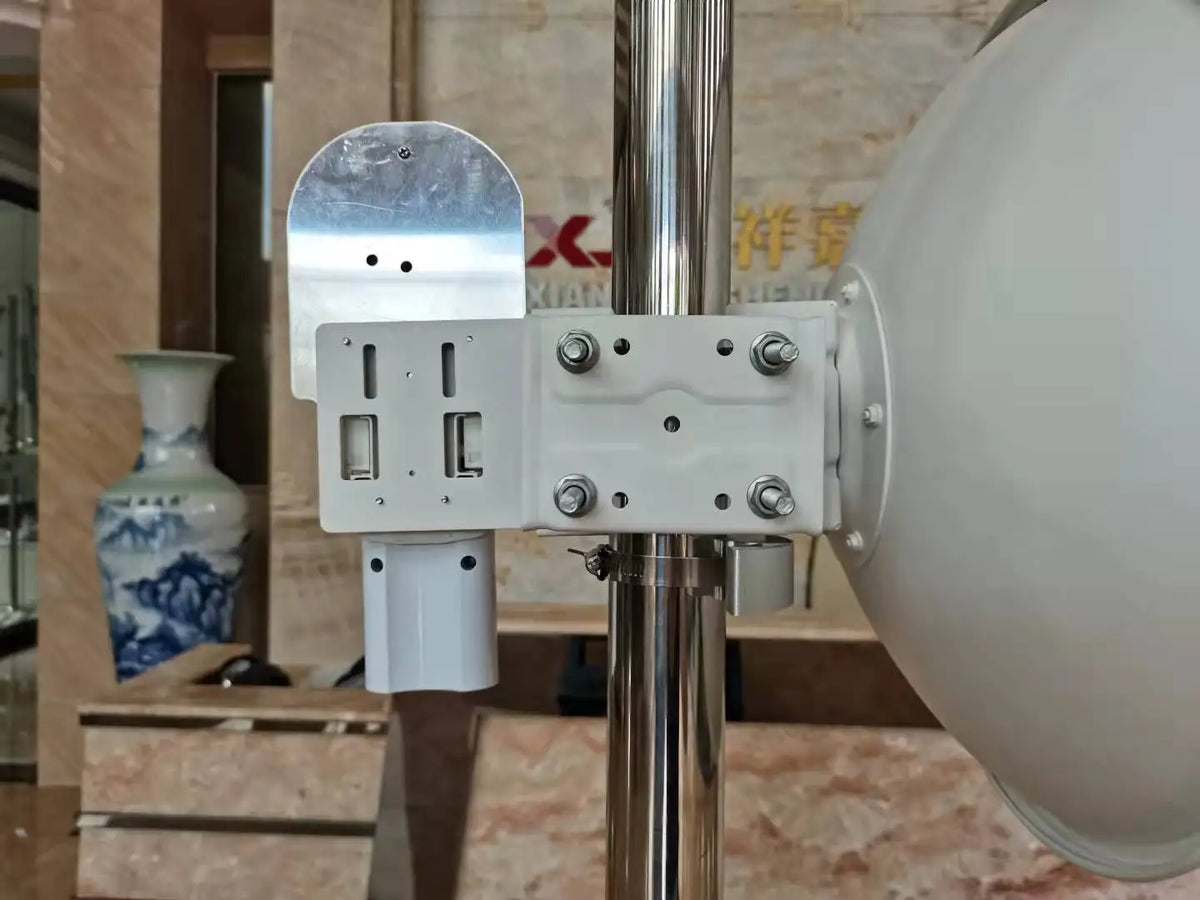

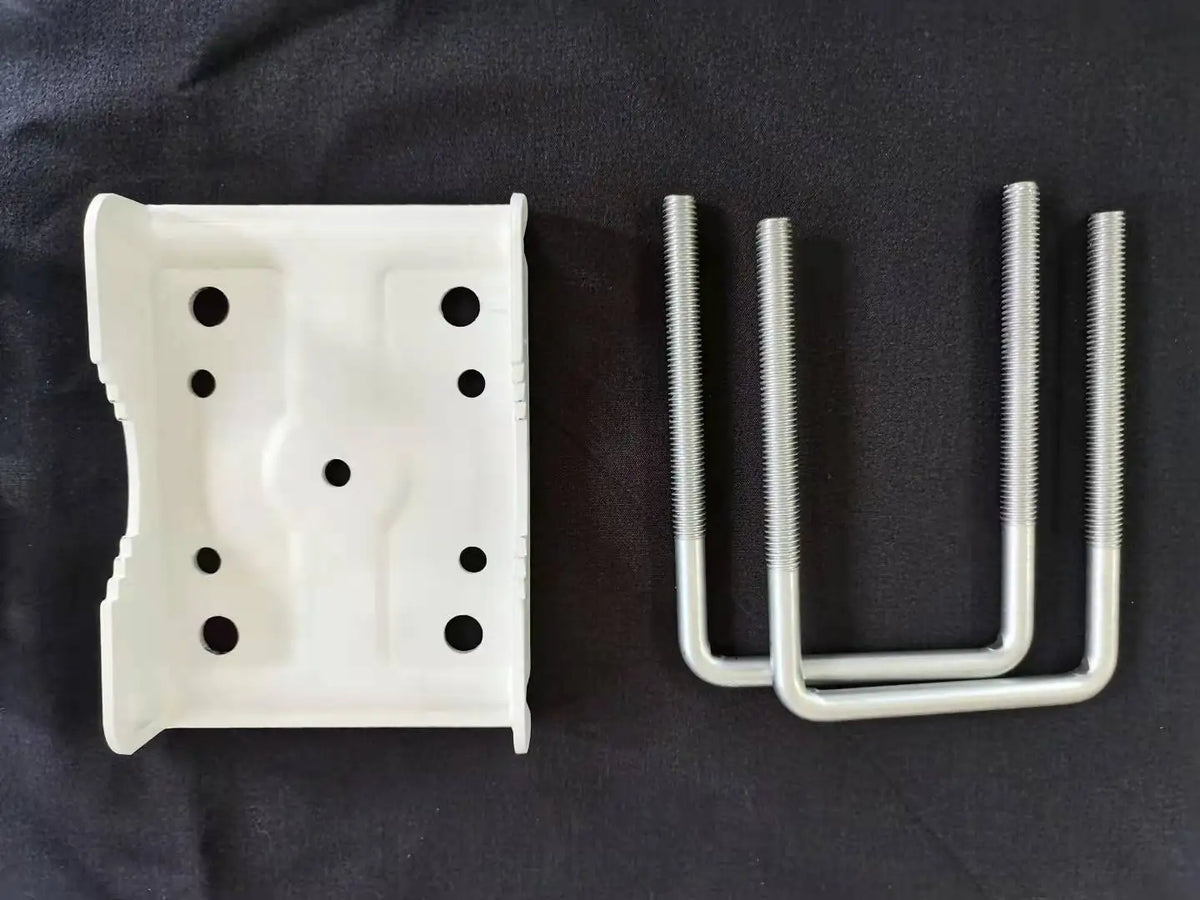

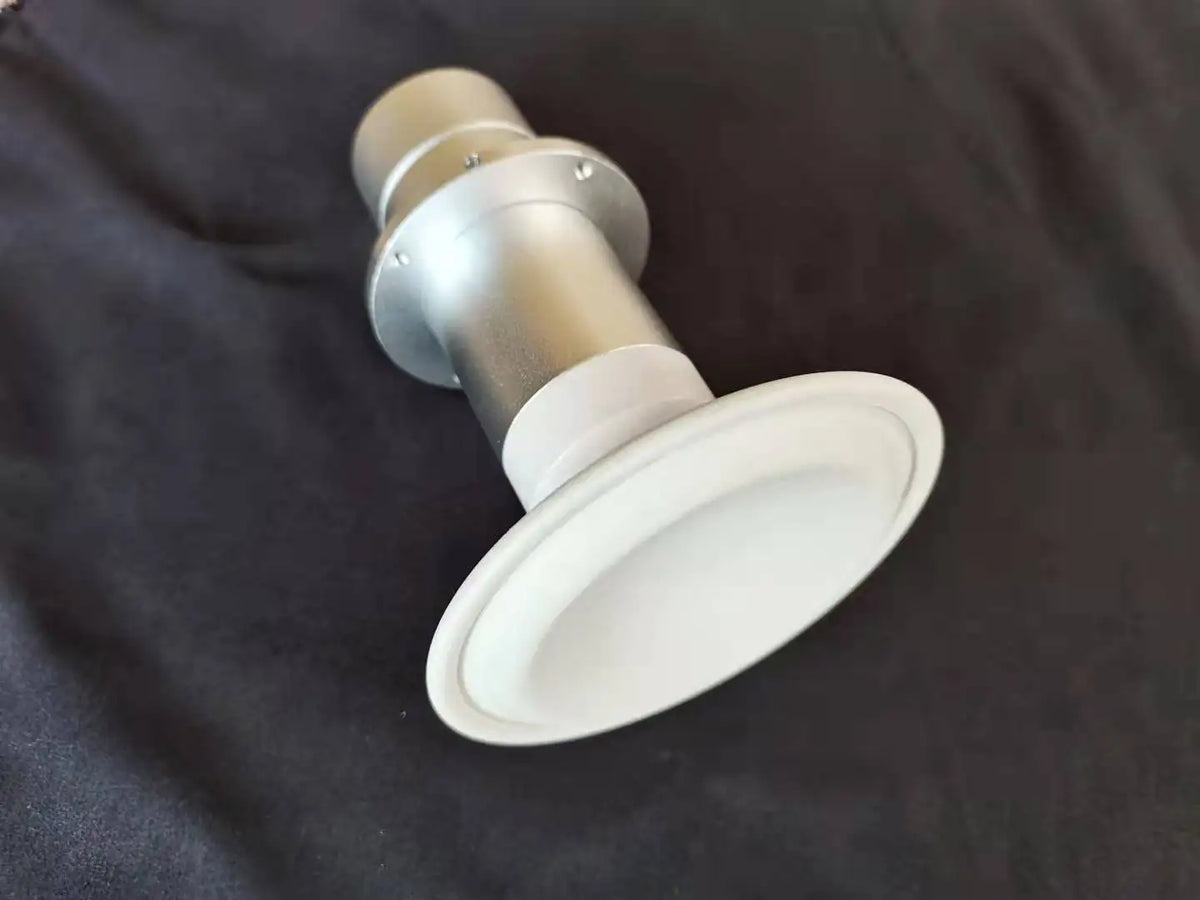

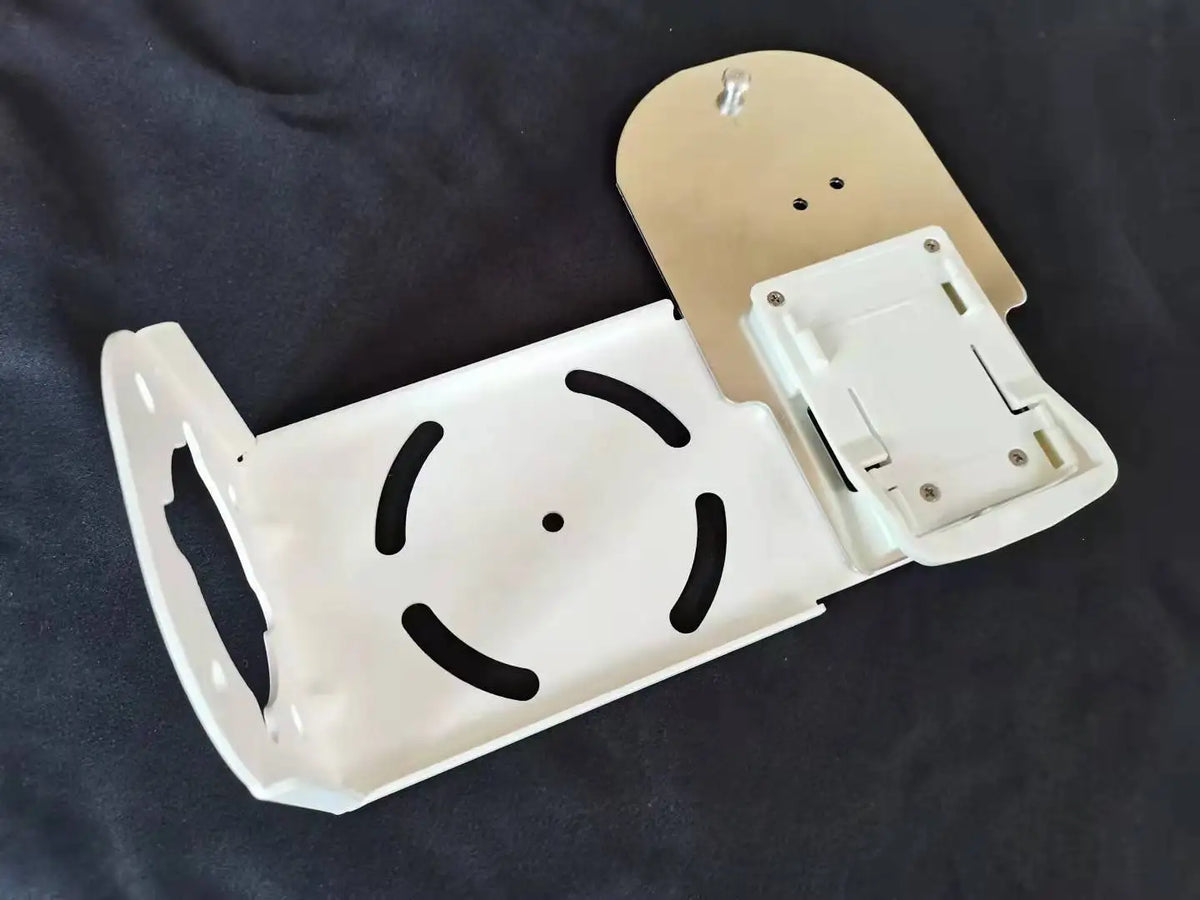

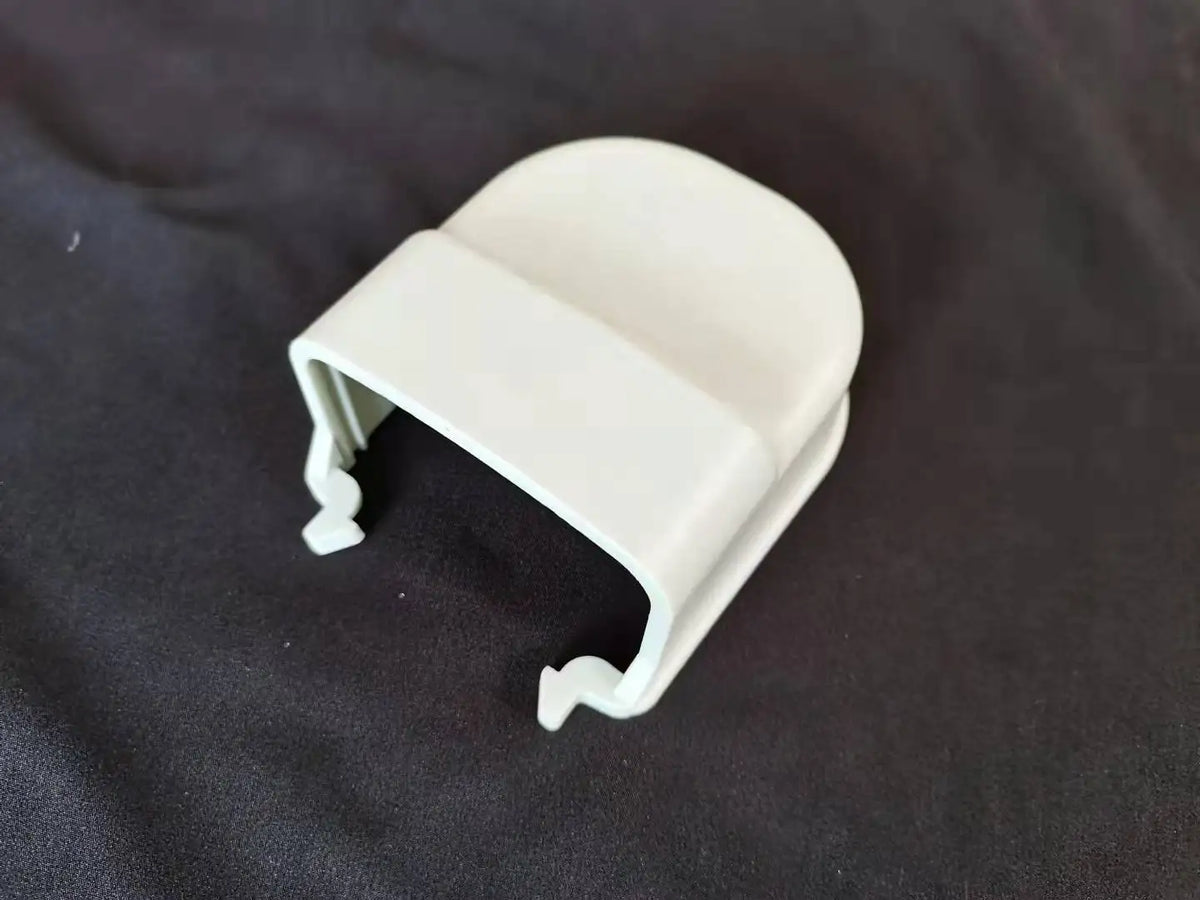

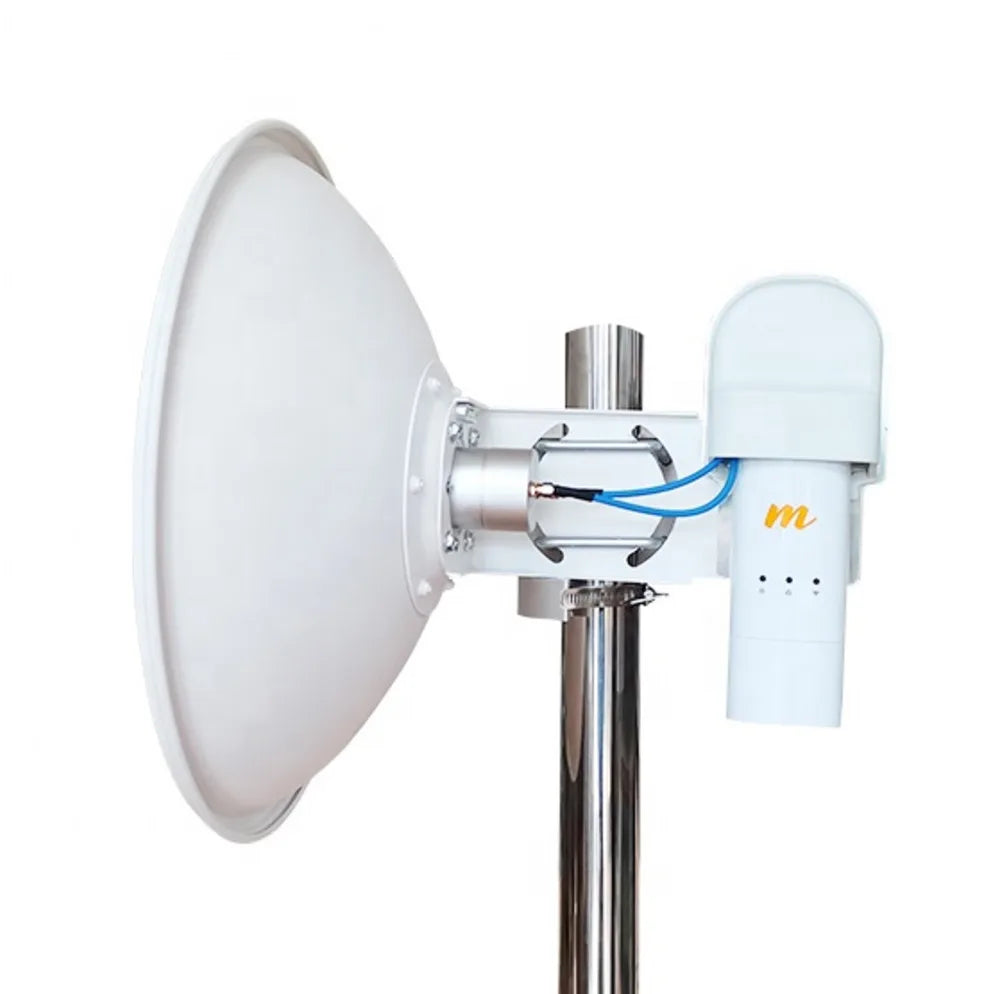

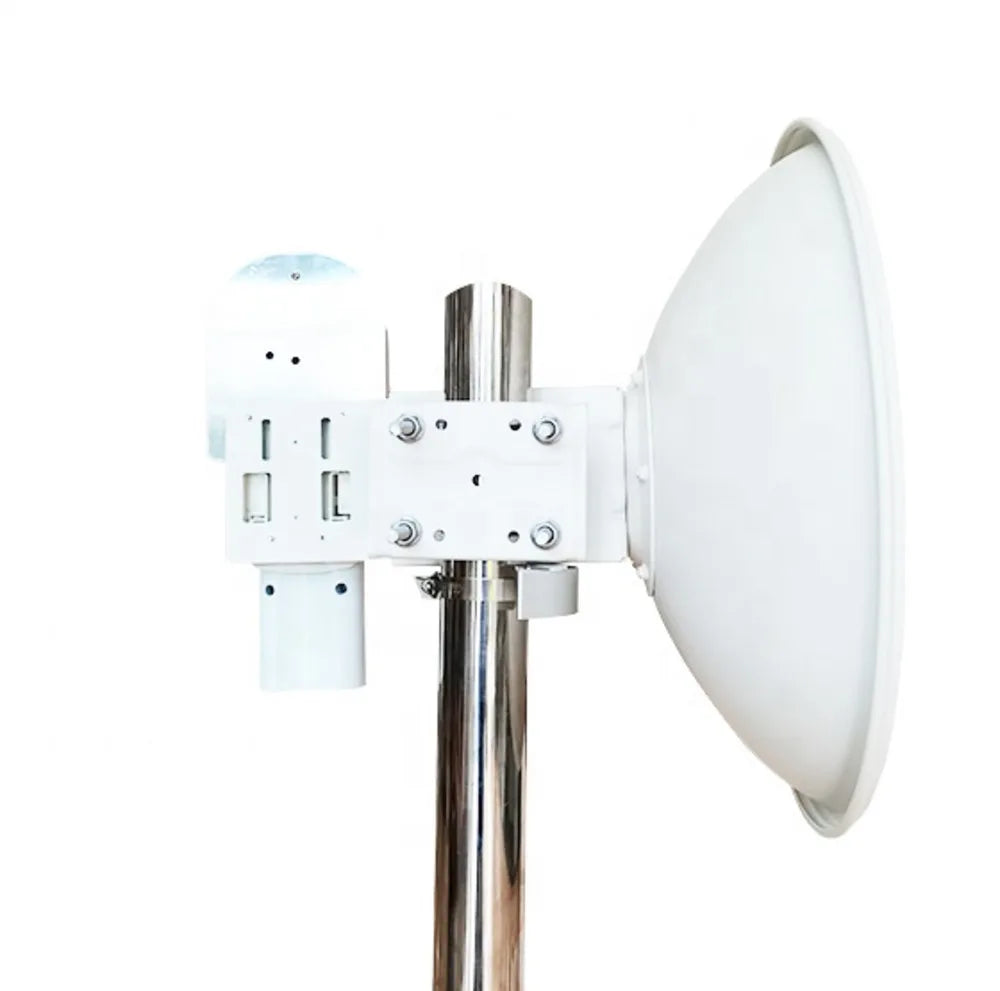

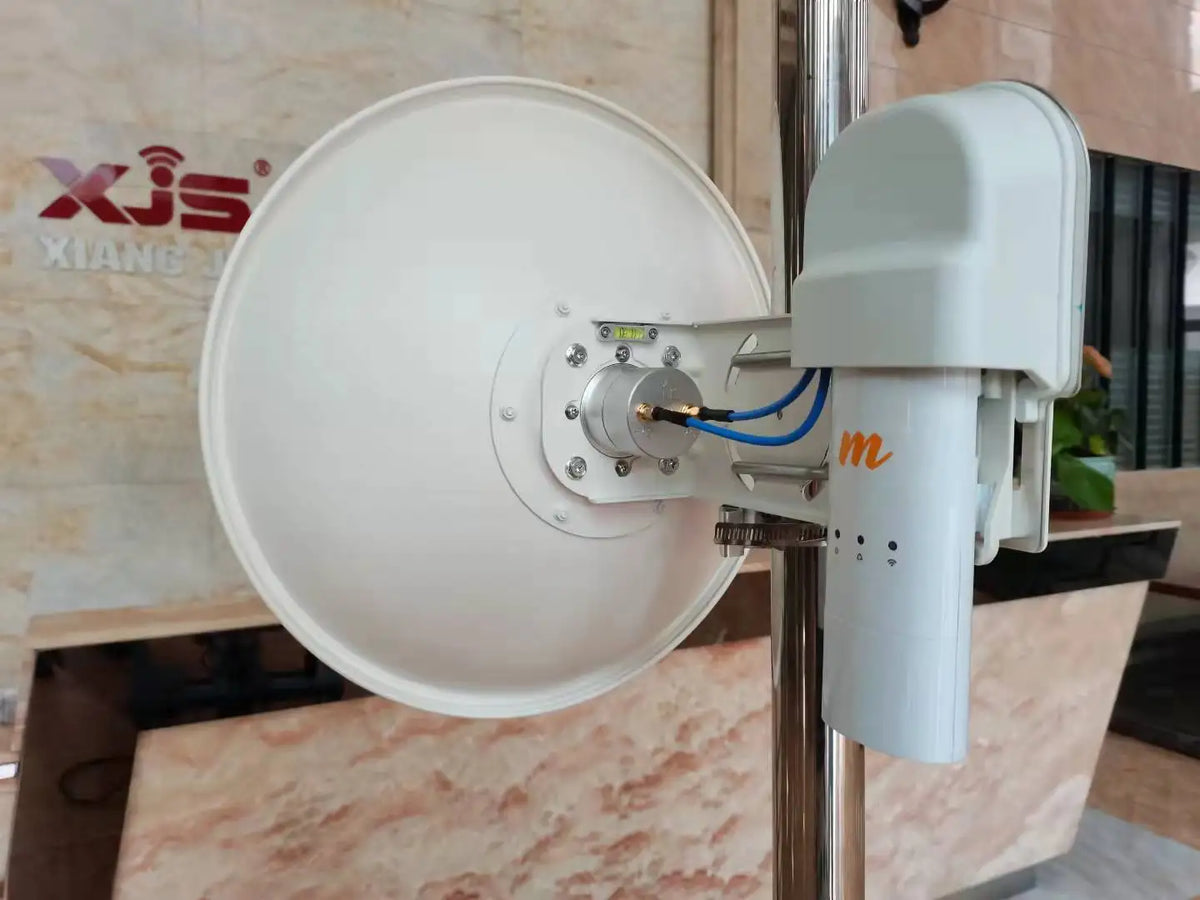

Details Images

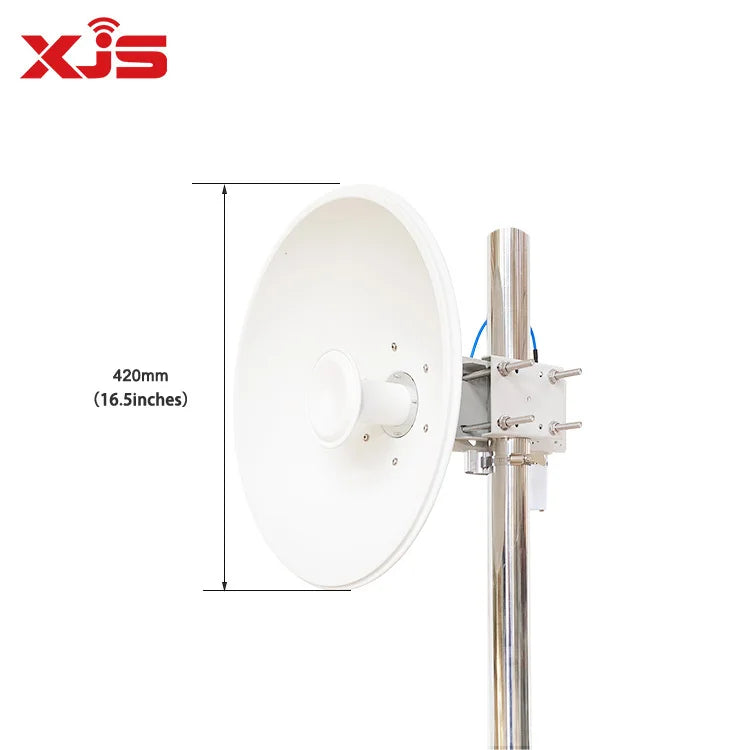

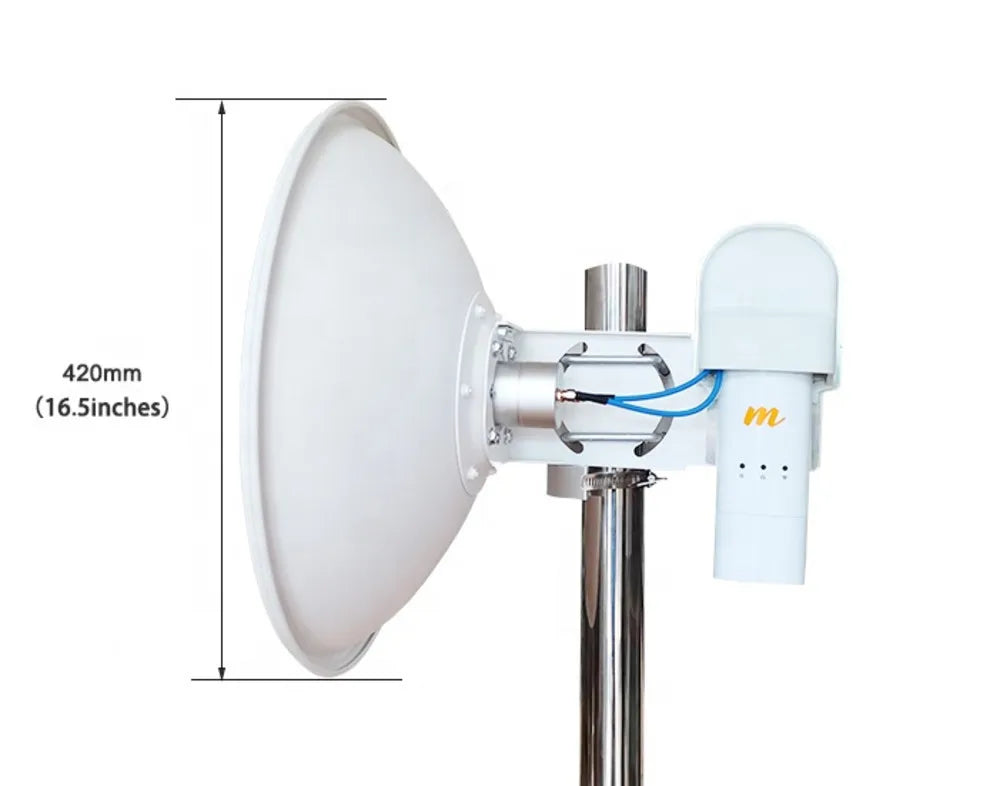

The model TDD-4865-29, with its small size and high gain as the selling point, has become the main product of XJS Technology Co., Ltd. The model TDD-4865-29 operates in the frequency range from 4800-6500 MHz. Its 42cm diameter and 29dBi gain make it a standout in the market for the same type of products with large volume and high gain or small volume and low gain.

This product has become a better choice for customers seeking high performance and transportation cost savings.Features* Extended frequency: 4.8 to 6.5 GHz * Top-ranking noise immunity * Small size with high gain * Incredible RF performance, ultra rugged * 4.8 GHz public safety band 5 GHz 802.11a/n, 802.11ac * 6.2 GHz/6.4 GHz band

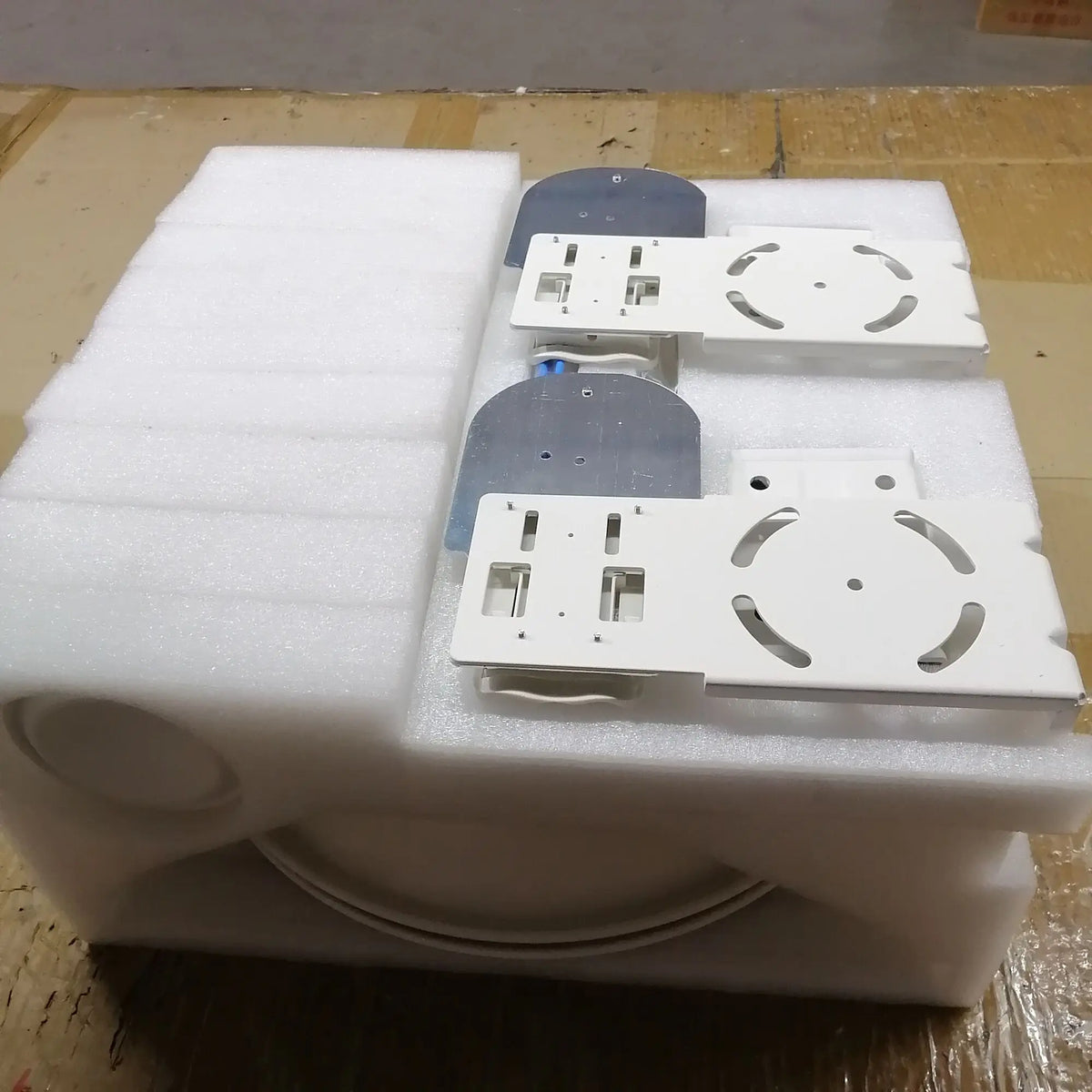

Product packaging
