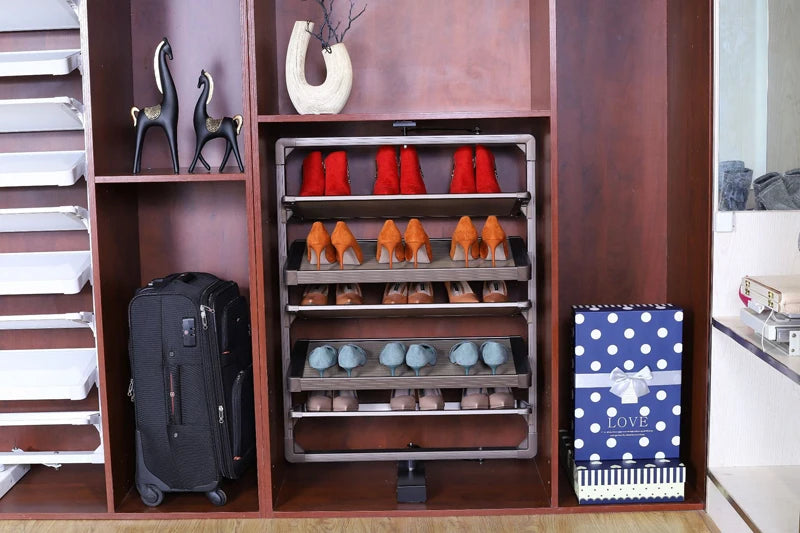

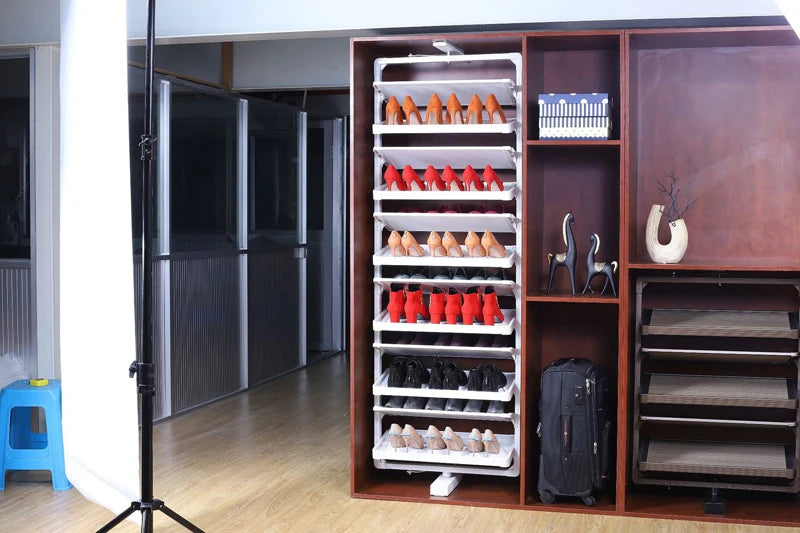

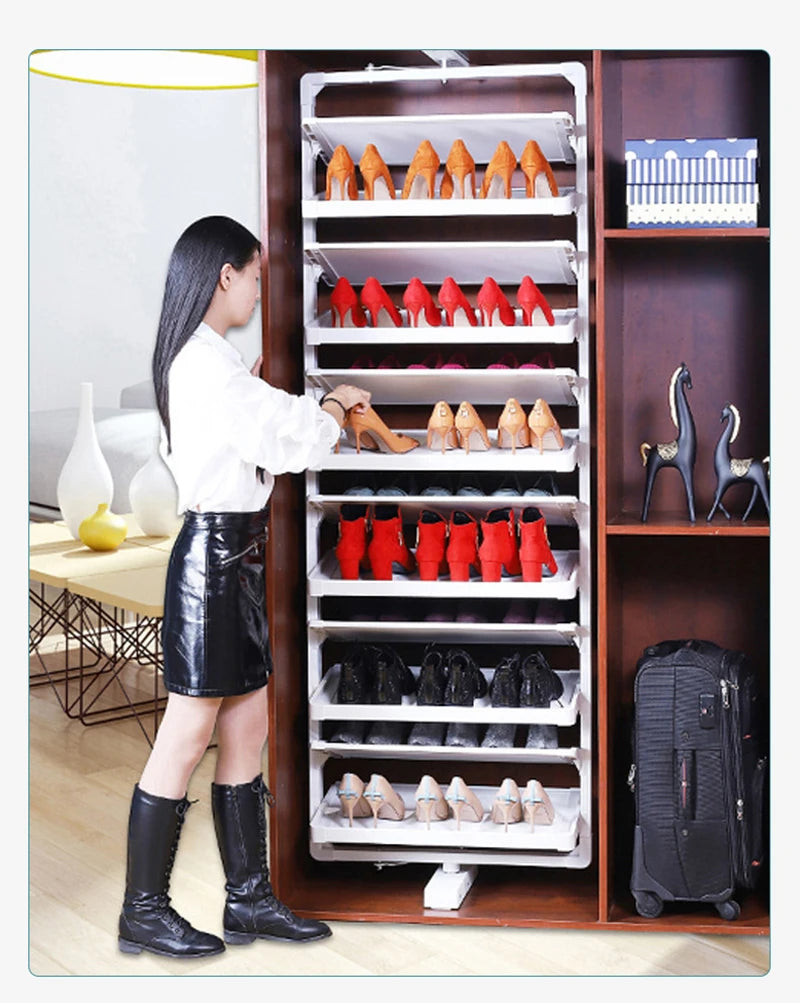

Newly upgraded 360° rotating multi-functional shoe rack
Adjustable up and down height
Forward and reverse rotation
Layer spacing is adjustable
Buckle upgrade
Layer plate stabilize
Main material: A00 grade aluminum alloy + crystal swimming surface treatment + ABS
Track configuration: all standard damping

Installation size requirements:
Cabinet internal net width: ≥730mm
Cabinet internal net depth: ≥ 360mm
Cabinet internal net height:
2 layers:540-640mm height adjustable
3 layers:660-760mm height adjustable
4 layers:780-880mm height adjustable
5 layers:900-1000mm height adjustable
6 layers:1020-1120mm height adjustable
7 layers:1140-1240mm height adjustable
8 layers:1260-1360mm height adjustable
9 layers:1380-1480mm height adjustable
10 layers:1500-1600mm height adjustable
11 layers: 1620-1720mm height adjustable
12 layers:1740-1840mm height adjustable
13 layers:1860-1960mm height adjustable
14 layers:1980-2080mm height adjustable
15 layers:2100-2200mm height adjustable
16 layers:2220-2320mm height adjustable

If the internal height, width and depth of your cabinet are not within the above size range, please contact customer service!
It can be customized according to the size of your cabinet. If you need to customize, please contact customer service to inform the inner net width, net depth and net height of your cabinet, customize the right product size for you!

For shoe racks above 12 layers, please contact customer service.

Advantage:

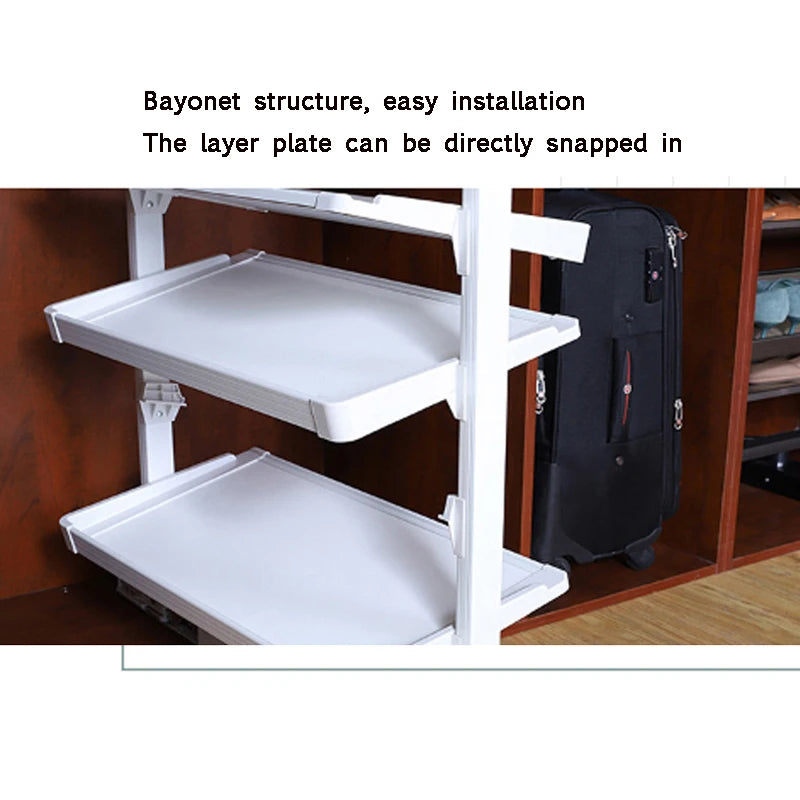

1. Bayonet structure, easy to install, the laminate can be directly buckled

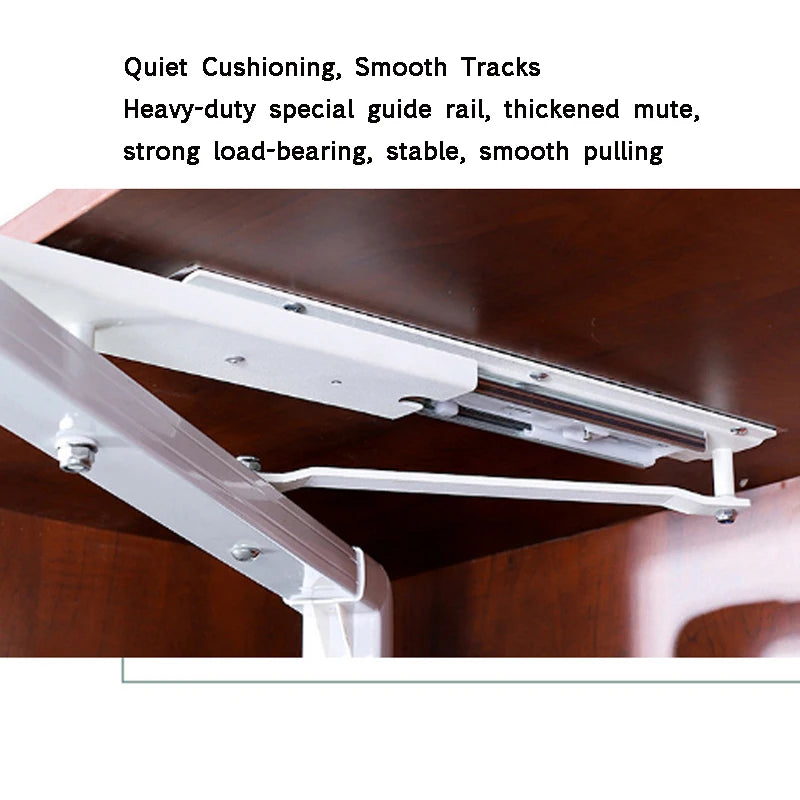

2. Quiet buffer, smooth track
Heavy-duty special guide rail, thickened mute, strong load-bearing, stable, smooth pulling

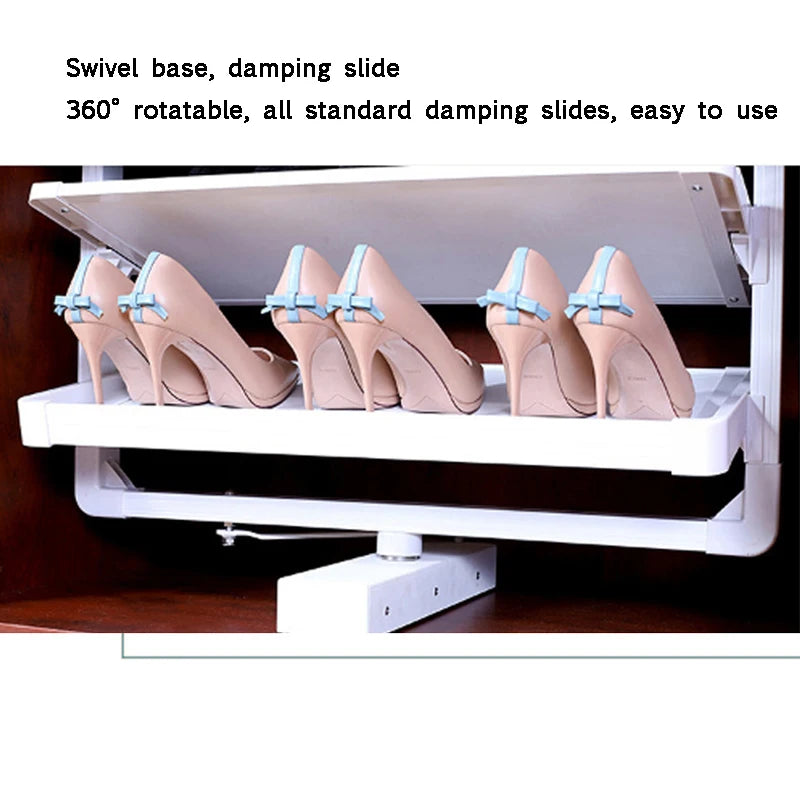

3. Rotating base, damping slide
360° rotatable, all standard damping slides, easy to use

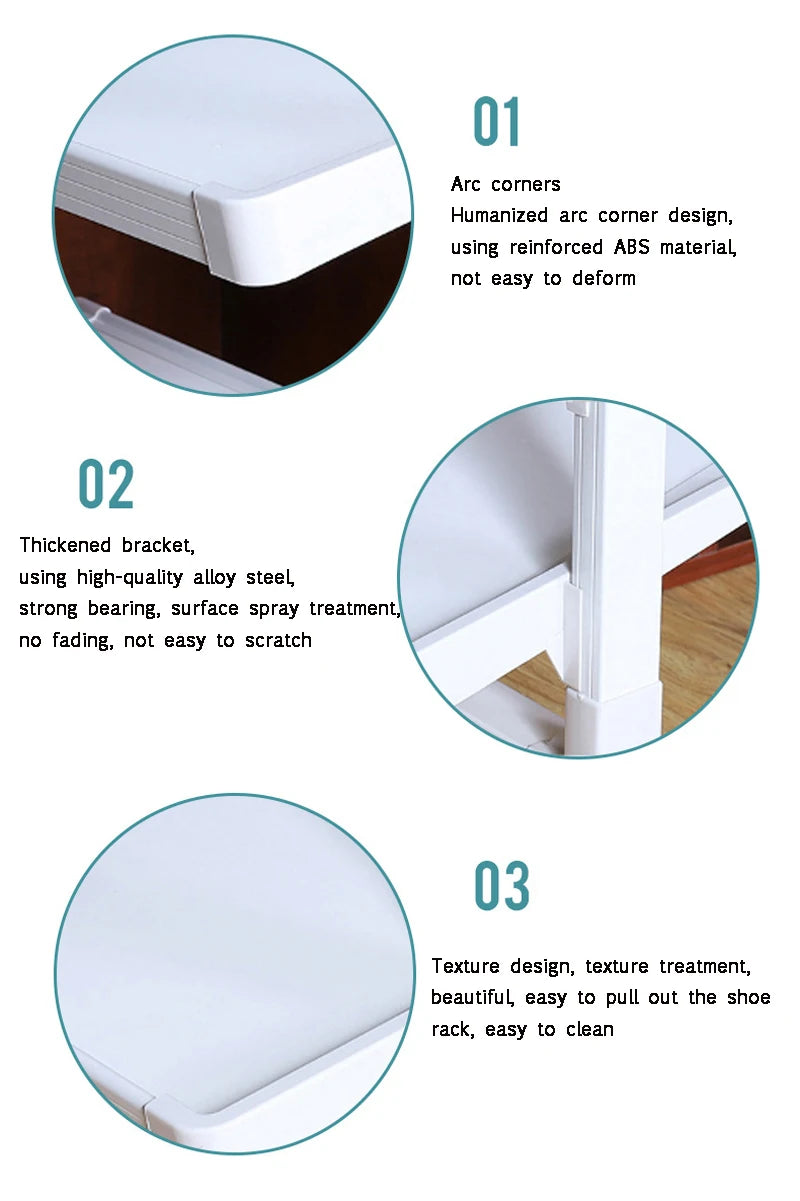

4. Humanized arc corner design, using reinforced ABS material, not easy to deform

5. Thickened bracket, strong load-bearing, surface spray treatment, no fading, not easy to scratch

6. Texture design, texture processing, beautiful, easy to pull out the shoe rack, easy to clean

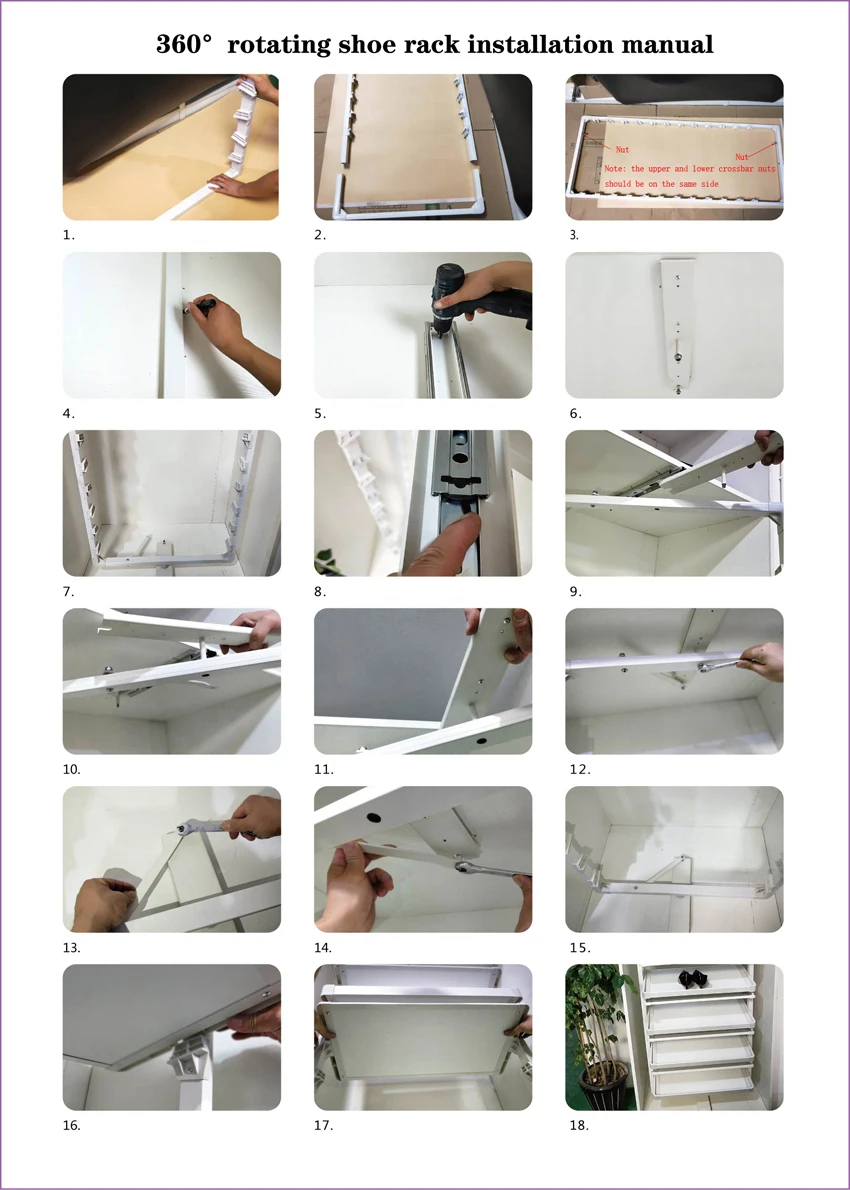

360°rotating shoe rack installation manual
1. Insert two vertical rods into the lower crossbar.

2. Insert the upper crossbar into the corresponding vertical rod.

3. Assemble the main frame (note: the upper and lower crossbar nuts should be on the same side).

4. Draw the centerline on the upper and lower bottom plates of the cabinet.

5. Fix the lower track based on the centerline.

6. Fix the upper track based on the centerline.

7. Insert the bottom hole of the main frame into the lower track spindle.

8. Pull the black plastic part to the right and extract the upper rail.

9. Separate the part of the upper track with the spindle.

10. Insert the upper rail spindle into the corresponding hole position of the main frame.

11. Align the two inner and outer rails of the upper track and reset them

12. Tighten the upper rail nut again

13. Align the lower link rod with the screw hole at the rear of the lower track and tighten it.

14. Align the upper linkage rod with the screw hole at the rear of the upper rail and tighten it.

15. Fix all screws or screws on the frame

16. Align the plastic clips of the corresponding vertical bars on both sides of the layer board

17. Press the layer board into the layer board bracket from top to bottom

18. Buckle all required layers into the main frame and complete. (The layers are staggered before and after, and each partition is installed in different directions, and cannot be installed in the same direction)
