SPECIFICATIONS

Adjustable Temp. Range: 46℉-95℉/8℃-35℃

Air Qutlet Pipe Inner Diameter: 2.95inch/75mm

Applicable Range: 215-269ft²/20-25m²

Car Air Heater Type: Heating&Ventilation mode

Certification: RoHS,FCC,CE

Control Method: LCD+Remote Control+Bluetooth

Feature 1: Ventiation Function

Feature 2: Automatic Start & Stop

Feature 3: Turbo Heat Mode

Feature 4: Display altitude, plateau mode

Feature 5: Clean combustion chamber mode

Feature 6: Timer Setting

Feature 7: Self-cleaning function

Feature 8: Modify parameter function

Fuel: Diesel

Fuel Consumption: 0.16-0.45 (L/H)

Fuel Type: Diesel

Heater Power: 8KW

Heater Working Temperature: -40℃~+20℃/-40℉~+68℉

High-concerned chemical: none

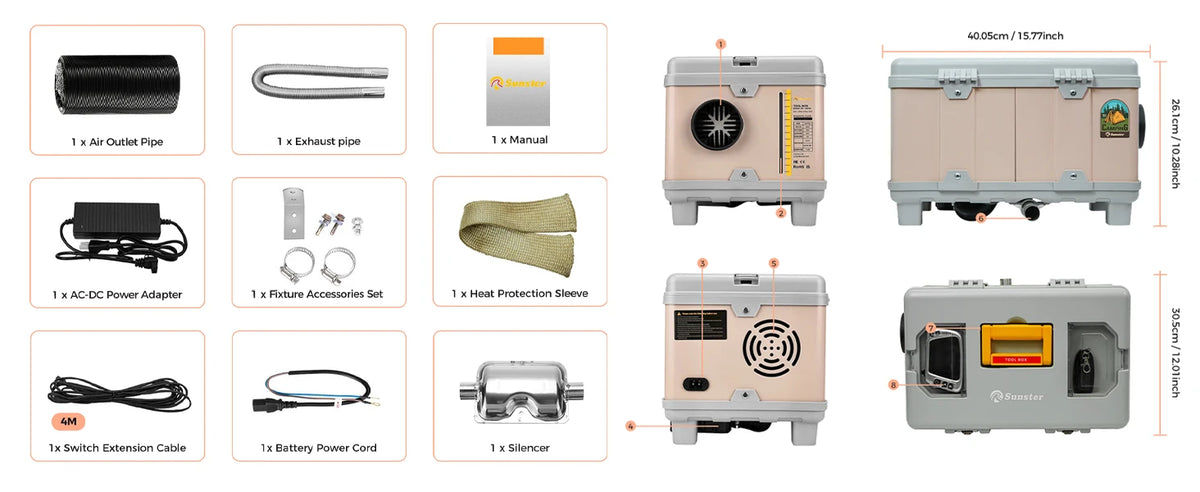

Item Height: 26.1

Item Length: 40.05

Item Type: Heating & Fans

Item Weight: 10

Item Width: 25.62

Material: Aluminum + Plastic

Oil Pump Working Temperature: -40℃~+20℃/-40℉~+68℉

Operating Voltage Range: 10.5-16V

Origin: Mainland China

Power Adapter Input: AC110-240V 50-60Hz

Power Consumption: 0.036KW/H

Rated Current: 3A

Special Features: heating&Ventilation function

Startup Current: 13A

Supply Voltage: DC12V / AC110-240V

Switch Type: LCD Switch

Tank Capacity: 6L

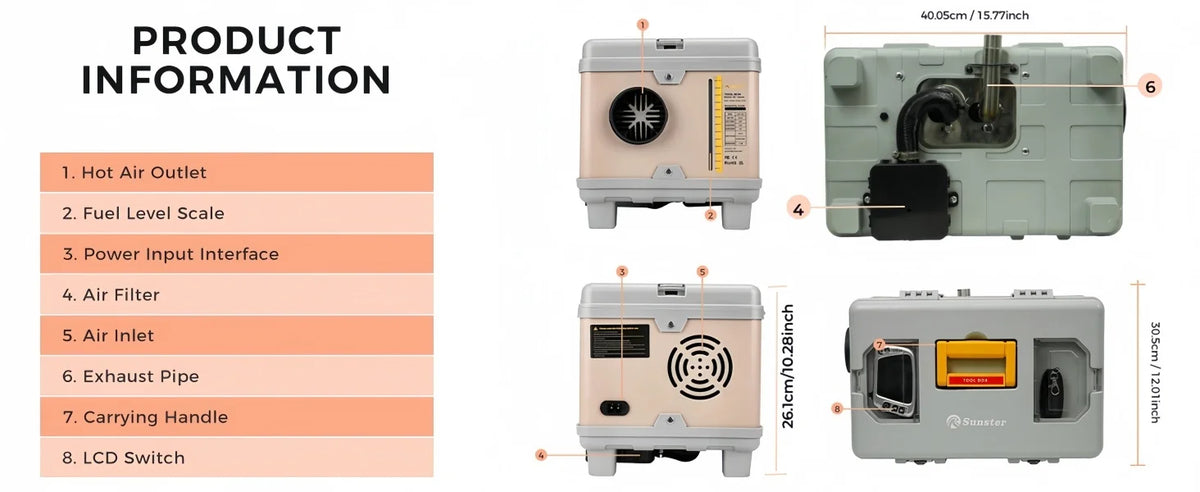

Product information

Rated power: 8KW

Working voltage : DC12V AC 110-240V

Car Air Conditioning Type: Heating and ventilation

Fuel Type: Diesel

Built-in fuel tank: 6L

Adapter Input: AC110-240V 50-60Hz

Fuel consumption: 0.16 liters - 0.45 liters / hour

Remote Control Distance: 98 ft/30 m

Radiator working temperature: -40~+50°C

Operating temperature of oil pump: -40~+40°C

Control Method：LCD+Remote Control+Bluetooth

Adjustable Temp. Range: 46℉-95℉/8℃-35℃

Cleaning mode ------------ Clean combustion chamber

Modify parameter function Password: 9009Fan speed and oil level can be modified through the APP

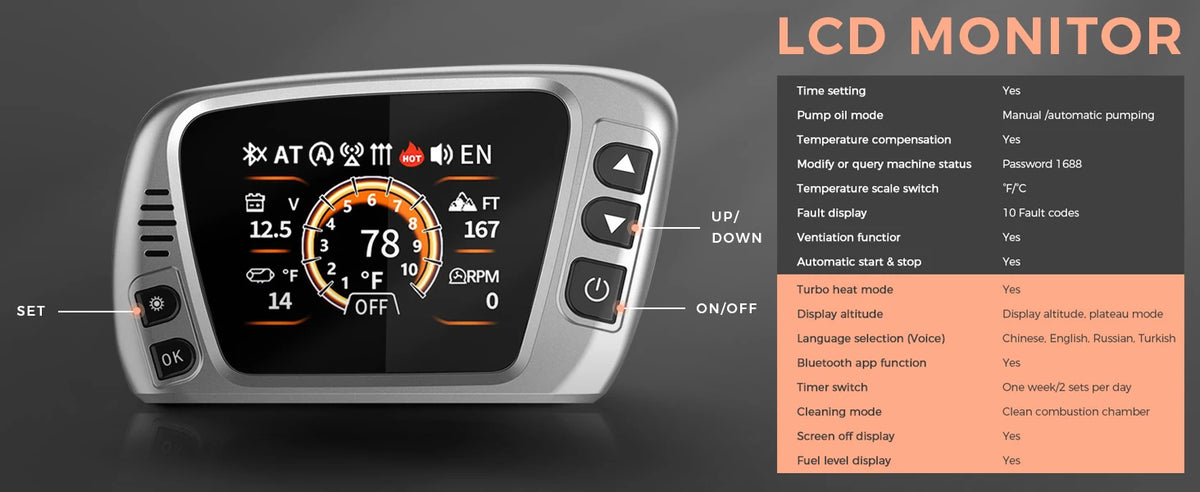

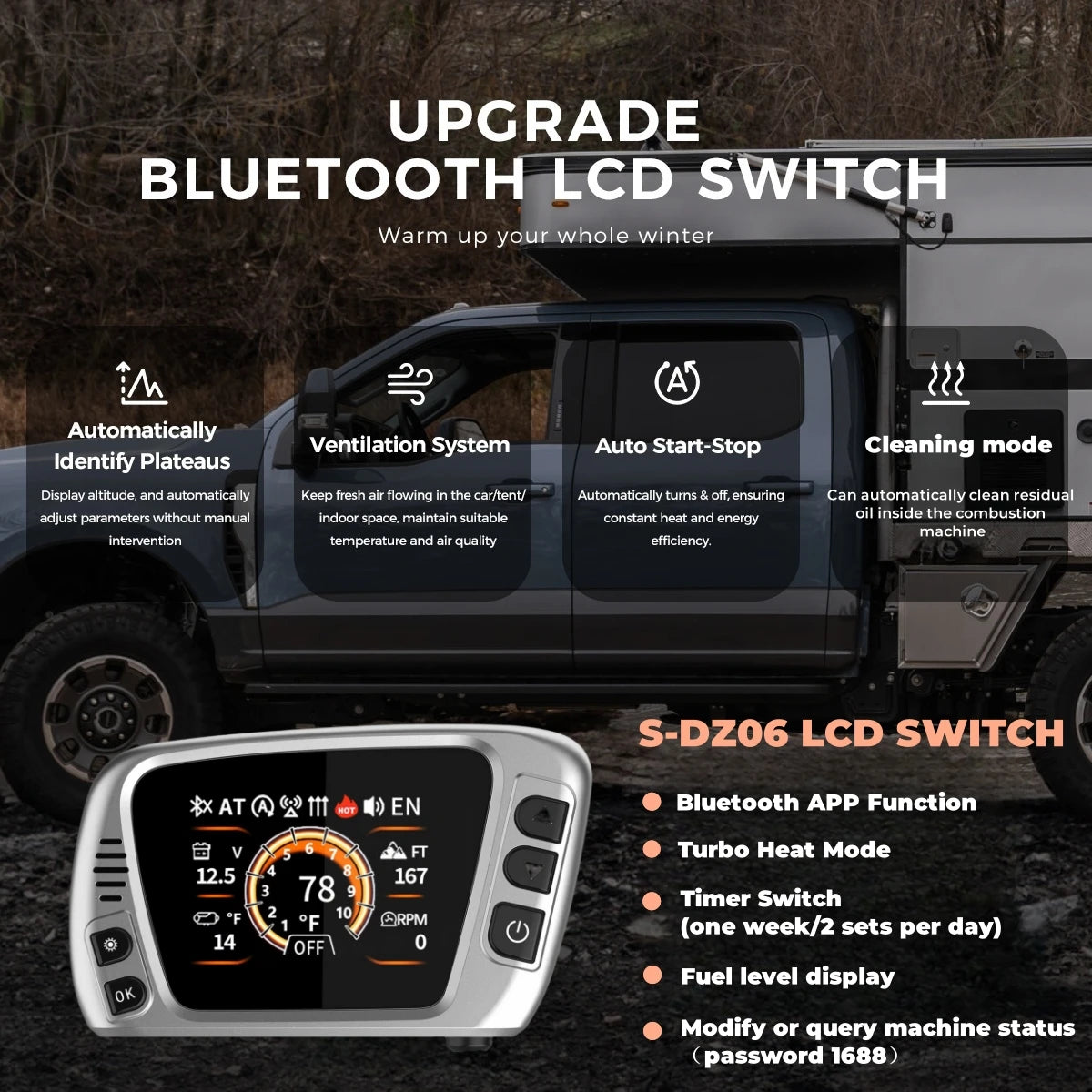

Upgrade DZ06 LCD Controller:

Turbo heat mode ------------ Yes

Bluetooth app function ------------ Yes

Display altitude------------  Display altitude, plateau mode

Ventiation function------------Yes

Automatic start & stop ------------Yes

Cleaning mode ------------ Clean combustion chamber

Time setting ------------ Yes

Timer switch ------------ One week/2 sets per day

Language selection (Voice)------------ Chinese, English, Russian, Turkish

Screen off display ------------ Yes

Fuel level display ------------ Yes

Pump oil mode ------------Manual /automatic pumping

Temperature compensation ------------Yes

Modify or query machine status ------------Password 1688

Temperature scale switch ------------℉/℃

Fault display ------------ 10 Fault codes

Product Feature:

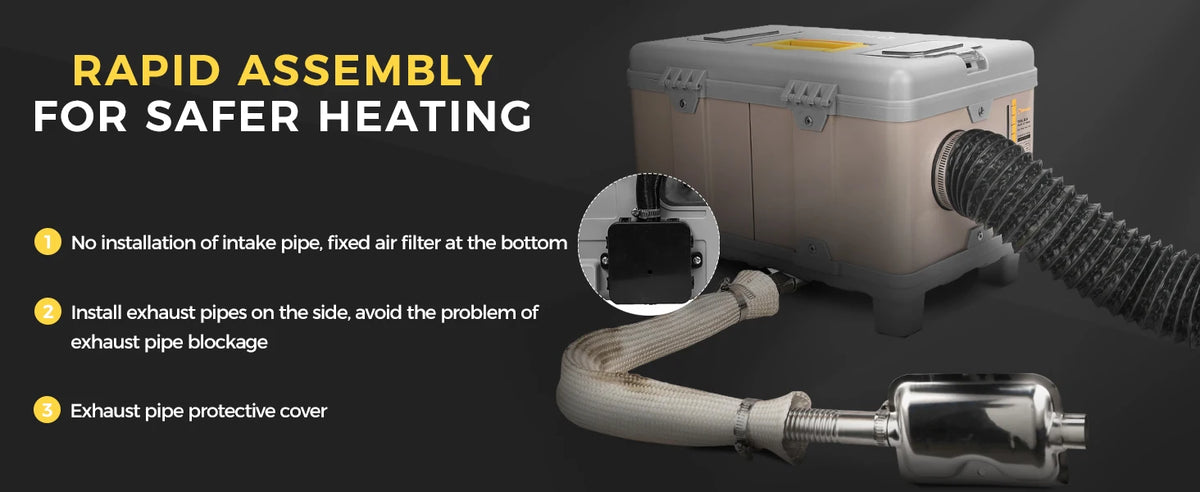

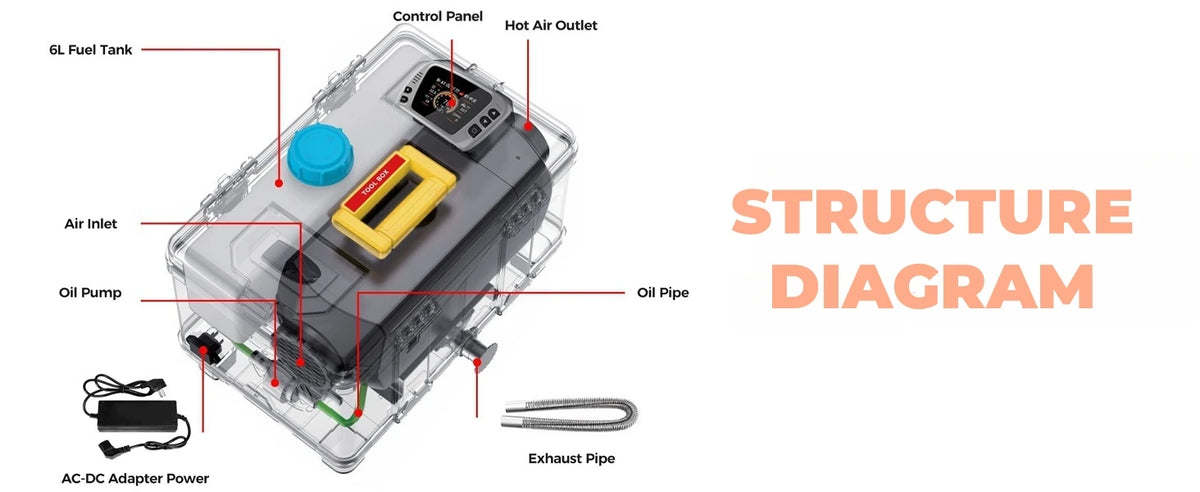

✅Compact Toolbox Design Built-in 6L fuel tank and handle for easy transport, installation, and maintenance.

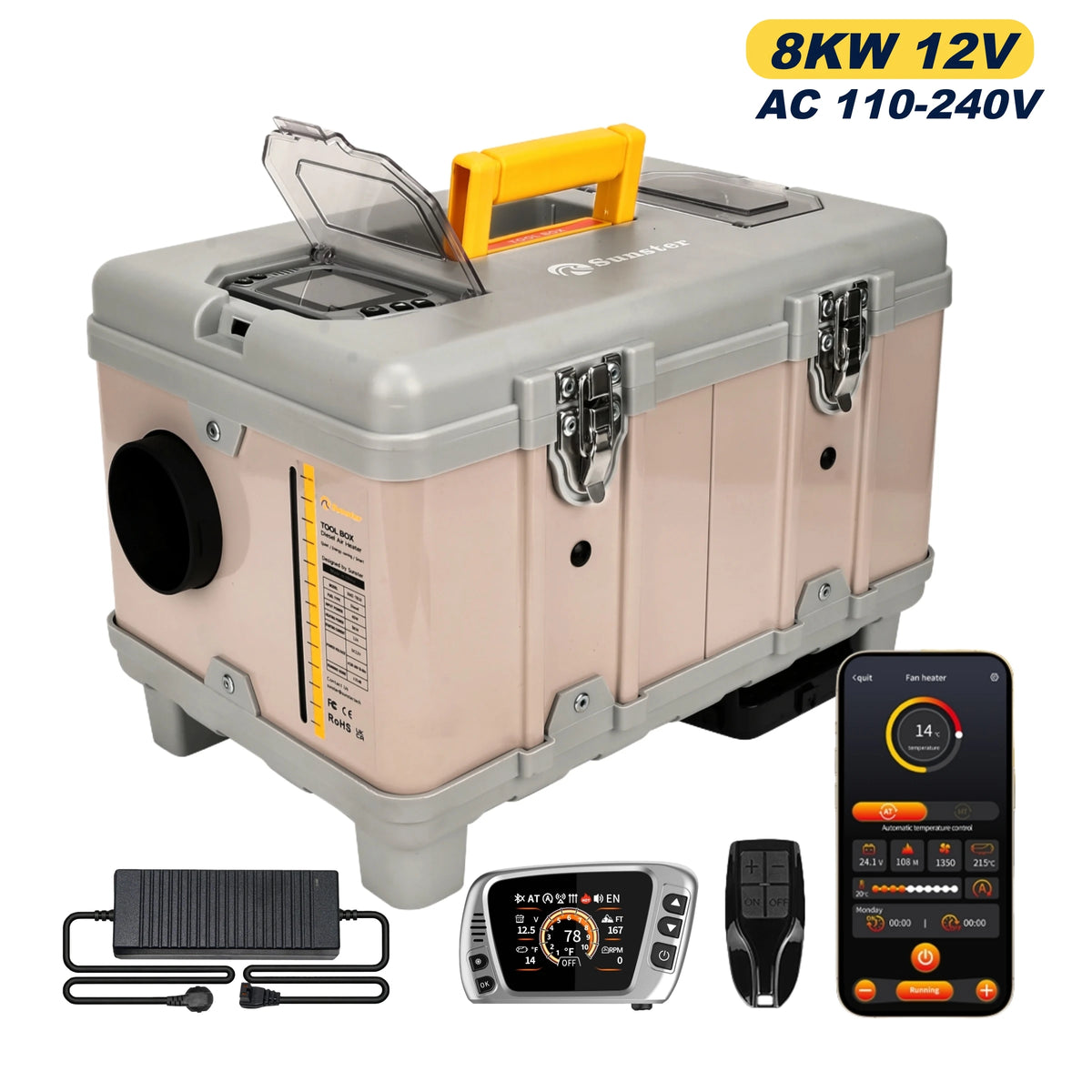

✅Three Control Methods:LCD+Remote Control+Bluetooth

✅Bluetooth App Control : By downloading the ' Neo' app

✅Dual Power Options:This versatile diesel air heater supports both 12V DC and 110-240V AC power sources

✅Low Consumption: 0.16-0.45L/H,1 gallon of fuel per night, heating up to 20 ㎡.

✅With Silent Fuel Pump (≤35 dB) :No ticking sounds found

✅Adaptive Plateau Mode :Automatically adjusts fuel at 5500m high altitudes (displays altitude).

✅Automatic Start -Stop:Keeps temperature stable and energy-efficient.

✅Ventilation Function:Circulates fresh air without heating.

✅Turbo Mode:Quickly heats up the space.

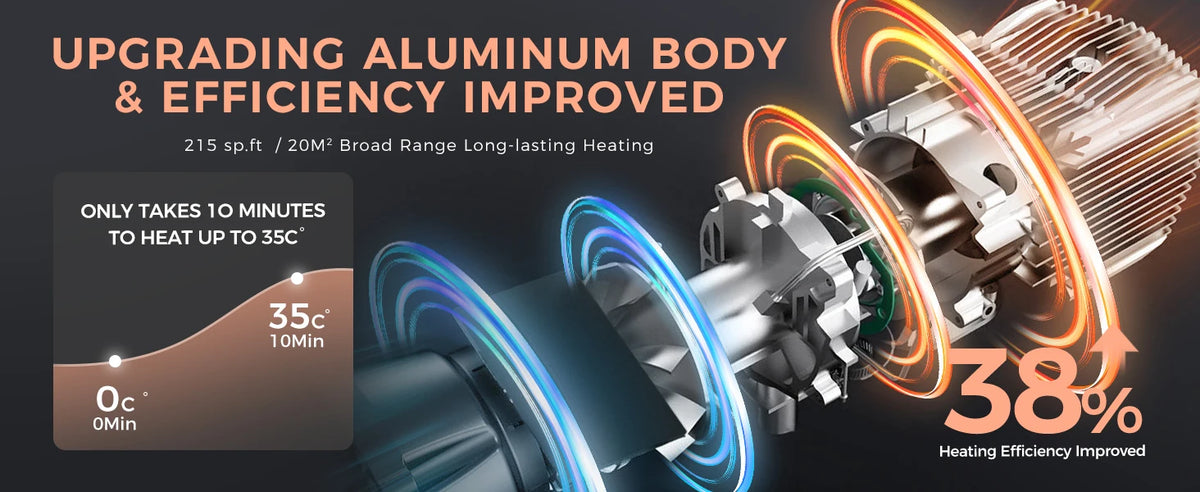

✅Fast heating:Within 10 minutes, you can be quickly placed in a warm environment,heat to warm up 215-269 ft²/20-25 m²

✅Multiple Protection:Engineered with multiple safety protections,including over-heating,short-circuit, reverse connection,and over-voltage safeguards, this portable diesel heater ensures safeand reliable operation in any environment.

✅Wide Application:Suitable for cars, RVs, trucks, yachts, motorhomes, houses, garages, stores, tents, etc., it is your best choice for heating!

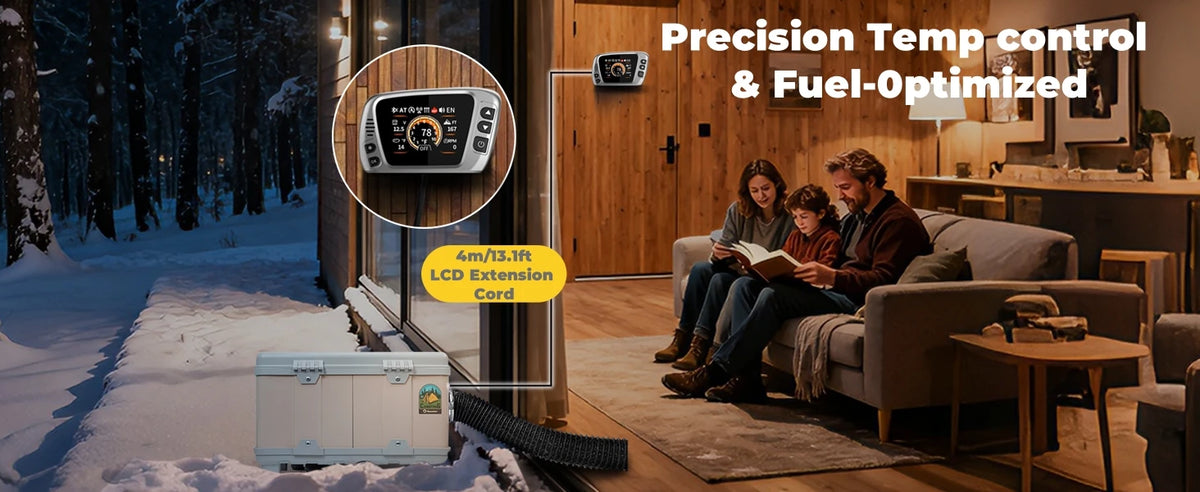

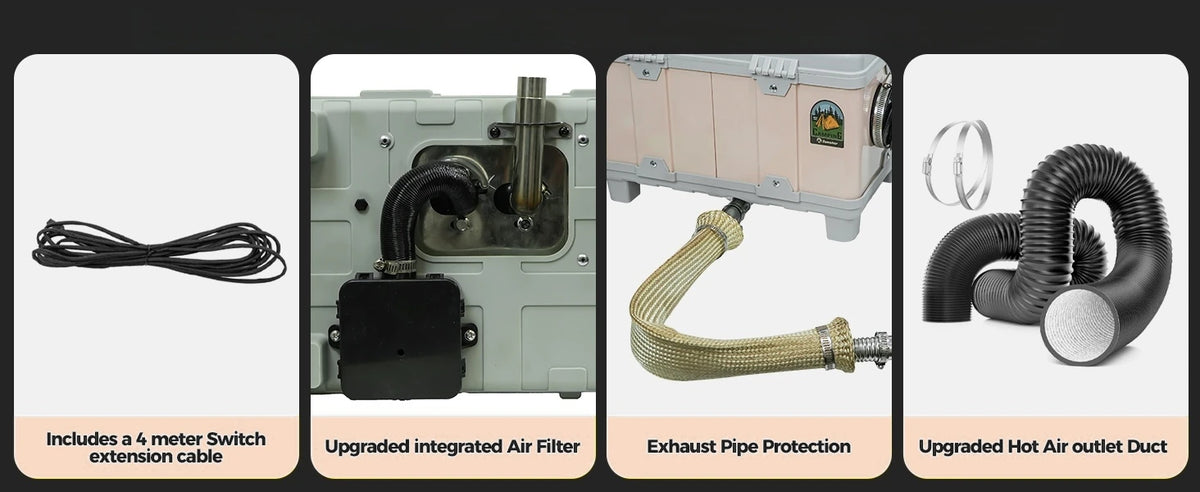

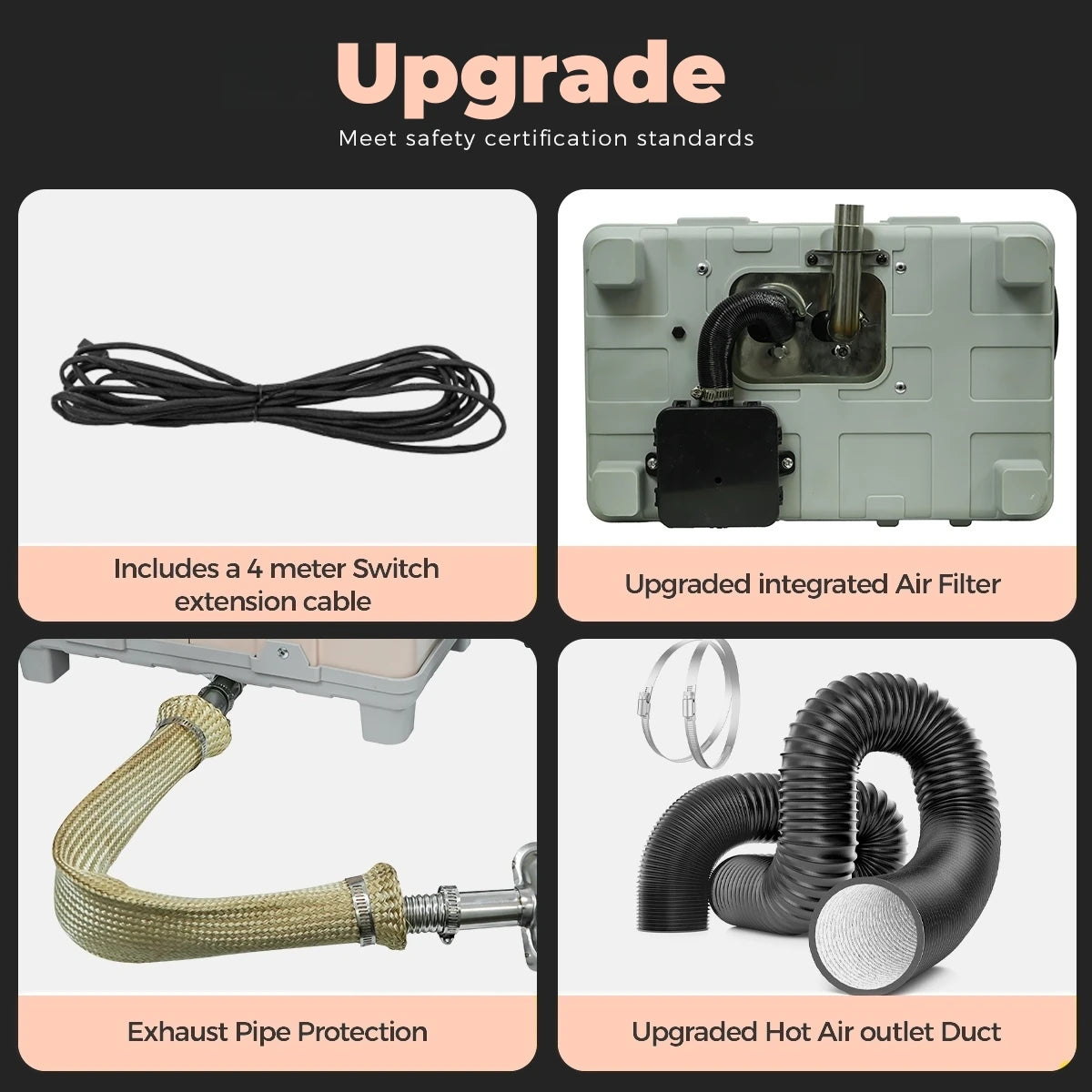

✅Indoor Climate Control: The diesel heater includes a 4 meter extension cable, allowing you to mount the control panel indoors for easier access and operation.
